UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie

UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
UV-860 Dual Band Frequency Two Way Radio 136-174/400-520Mhz Ham CB Radio 128 Channels Walkie Talkie
$38.87
Ex Tax: $38.87
  • Stock: In Stock
  • Model: EB0024933
  • Dimensions: 110.00mm x 58.00mm x 32.00mm
  • SKU: EB0024933

Available Options

Features :

1.100% Brand New & Never Used
2.Dual-band handheld transceiver with display function menu on the display “LCD”
3.DTMF encoded
4.Lithium-ion battery with high capacity
5.Commercial FM radio receiver (65MHz~108MHz)
6.Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable
7.Function “VOX”(voice operated transmission)
8.Alarm function
9.Up to 128 memory channels
10.Broadband (Wide)/Narrowband (Narrow), selectable
11.High/low power selectable
12.Display illumination and programmable keyboard
13.Function “beep” on the keyboard

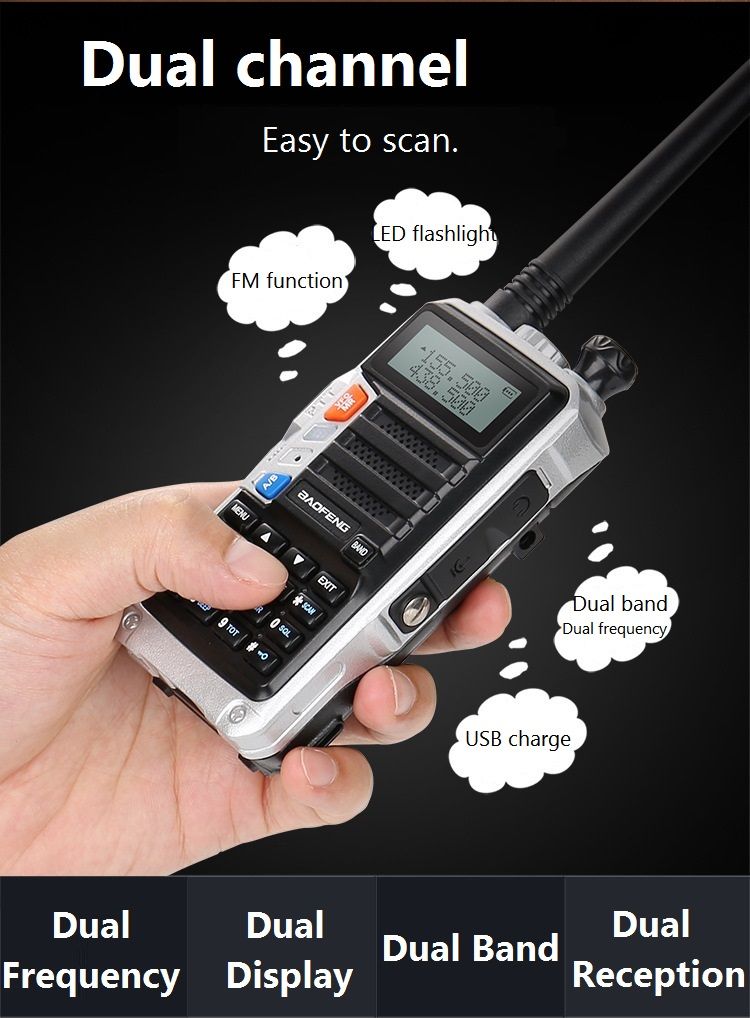

14.Dual Watch/dual reception
15.Selectable Frequency Step
16.Function “OFFSET” (frequency offset for repeater access)
17.Battery saving function
18.Timer transmission “TOT” programmable
19.Selecting the Scan Mode
20.Busy Channel Lock
21.Built-in RX CTCSS/DCS scan

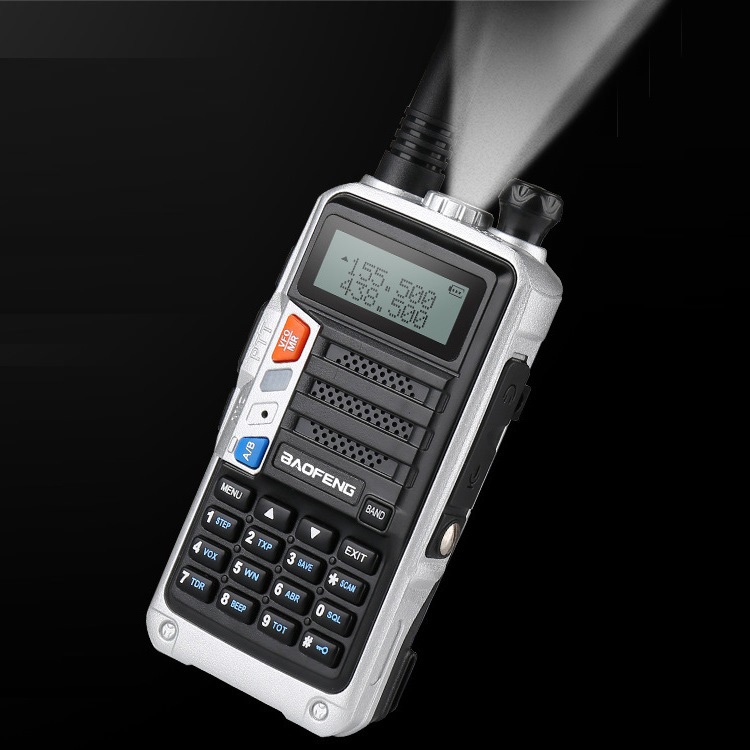

22.Built-in LED flashlight
23.Programmable by PC
24.Level Threshold “Squelch” adjustable from 0 to 9
25.Cross band reception
26.Tone end of transmission
27.Built-in key lock

Specification :

Frequency range:
VHF: 136MHz-174MHz(Rx/Tx)
UHF: 400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)

Memory channels: Up to 128 channels
Frequency stability: 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance: 50 OHM
Operating temperature: -20°C to 60°C
Supply voltage: Rechargeable Lithium-Ion 7.4V
Battery Capacity: 2800mAh
Consumption in standby: <=75mA
Consumption in reception: 380mA
Consumption in transmission: <=1.4A
RF power: 5W/1W
Dimensions: 110x58x32mm

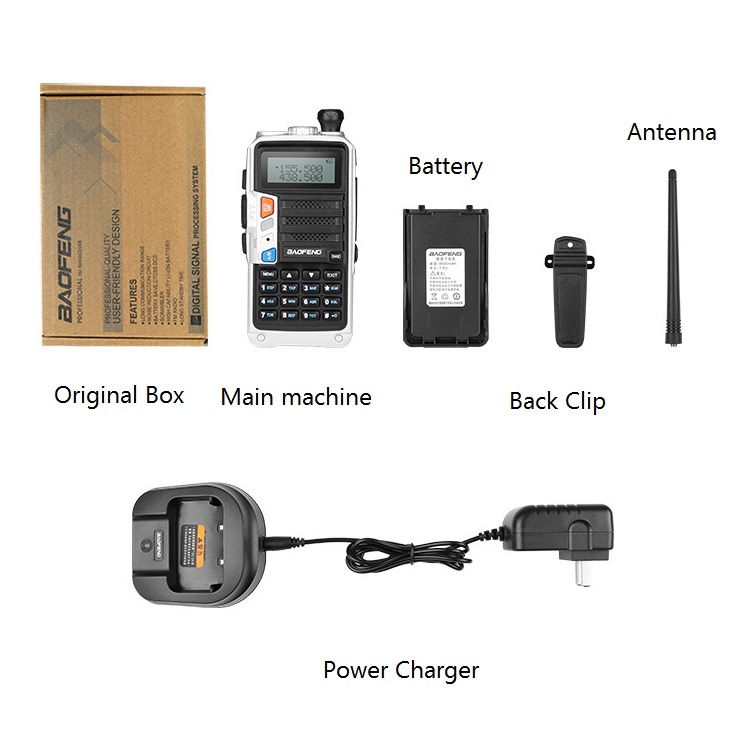

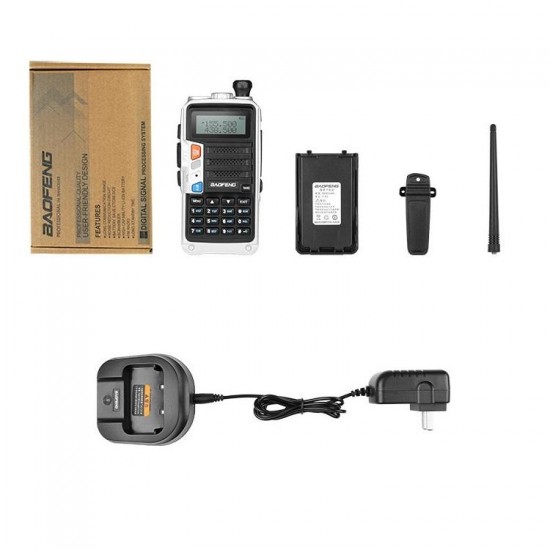

Package includeds :

1 x Radio main
1 x Antenna
1 x Battery
1 x Charger
1 x Belt clip

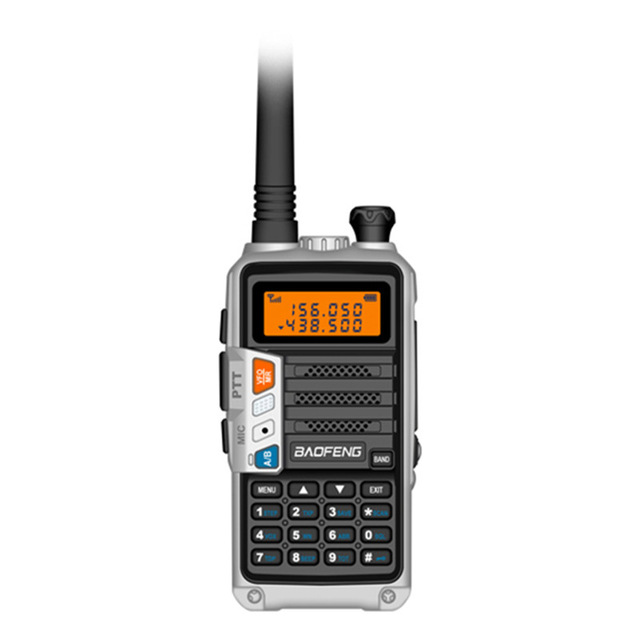

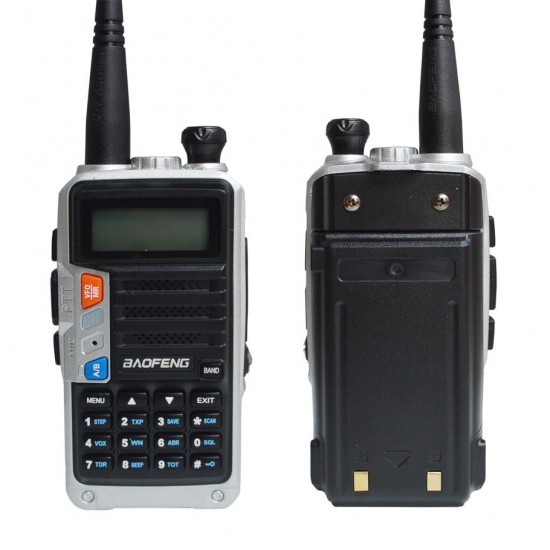

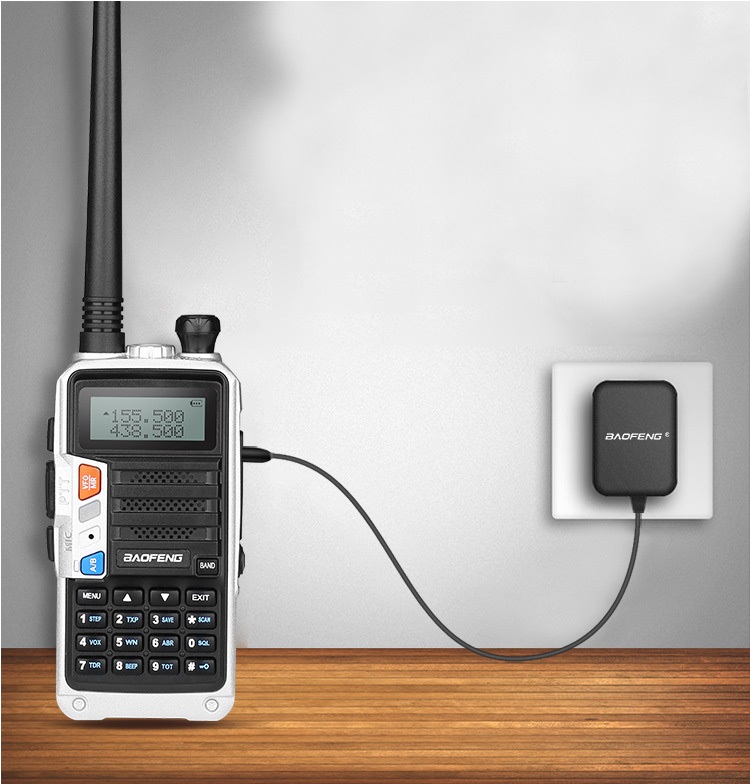

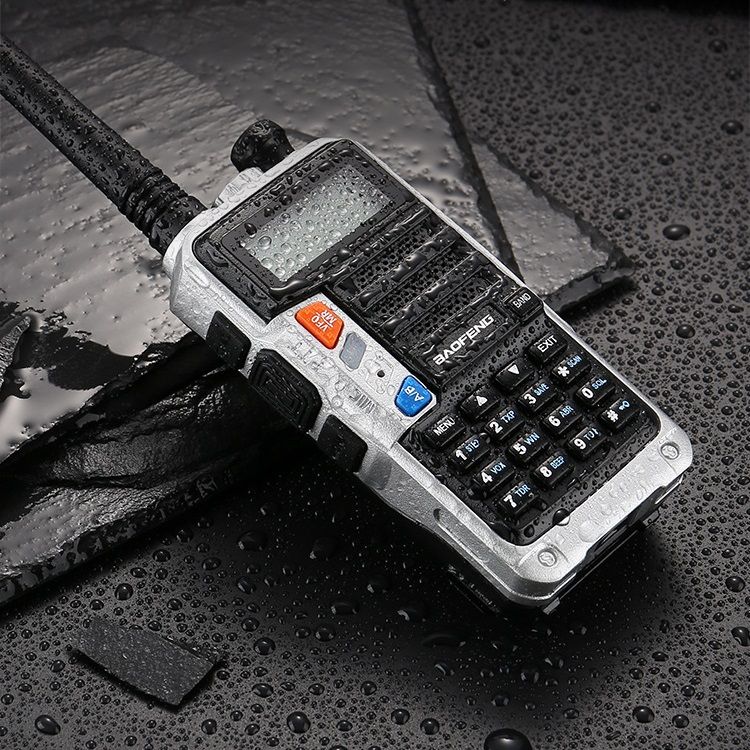

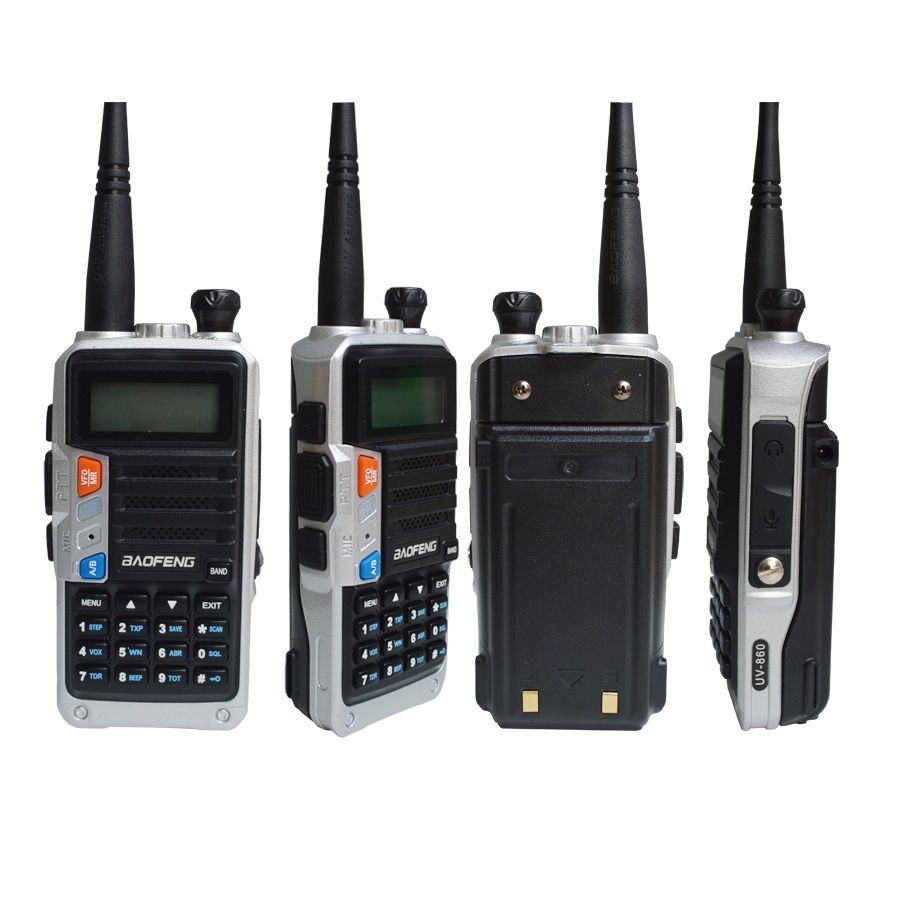

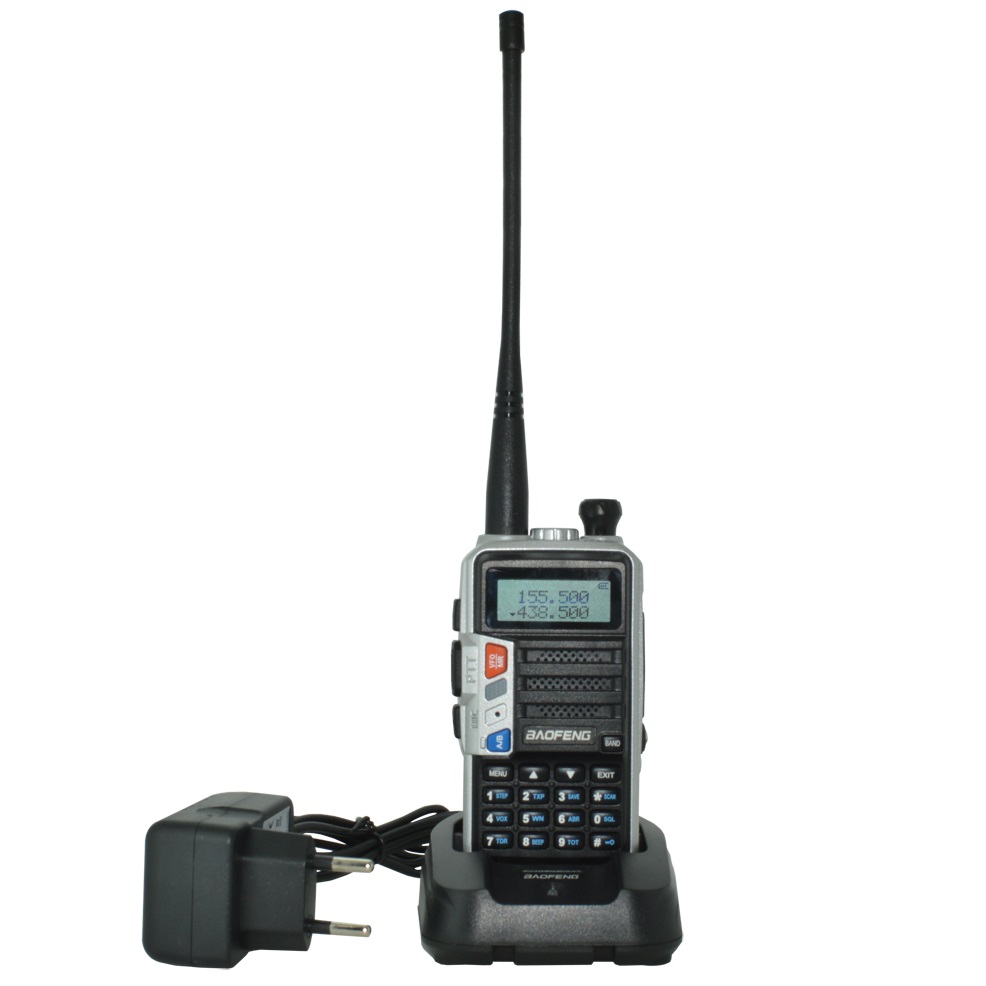

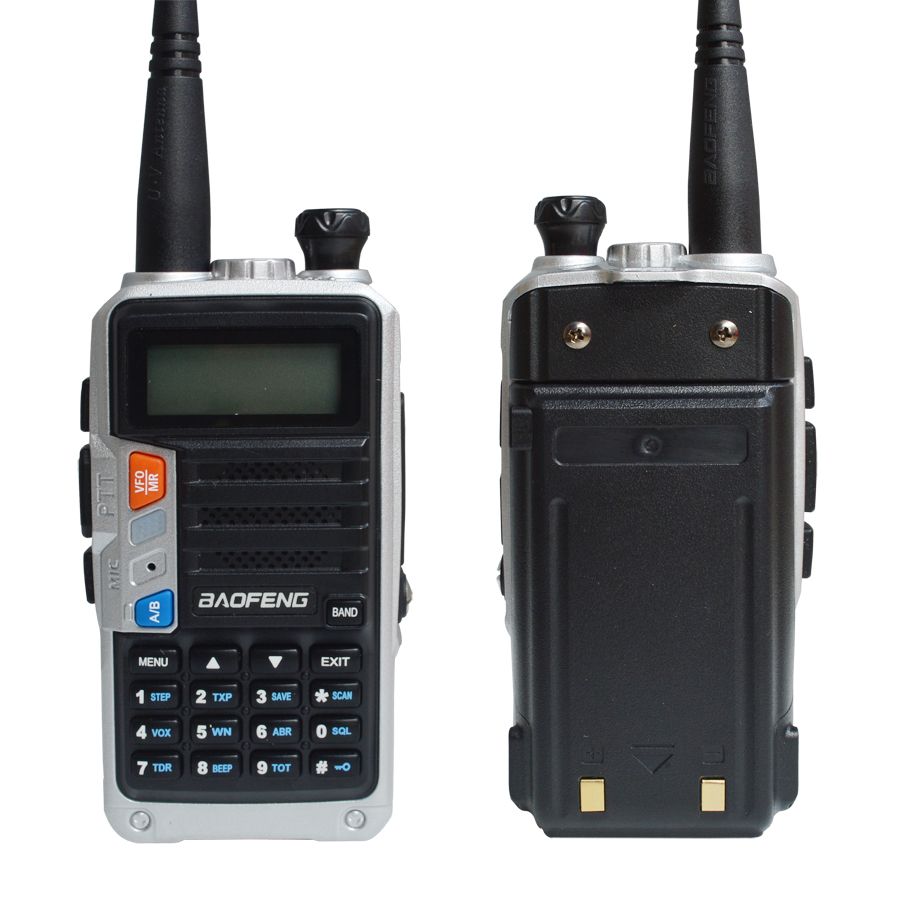

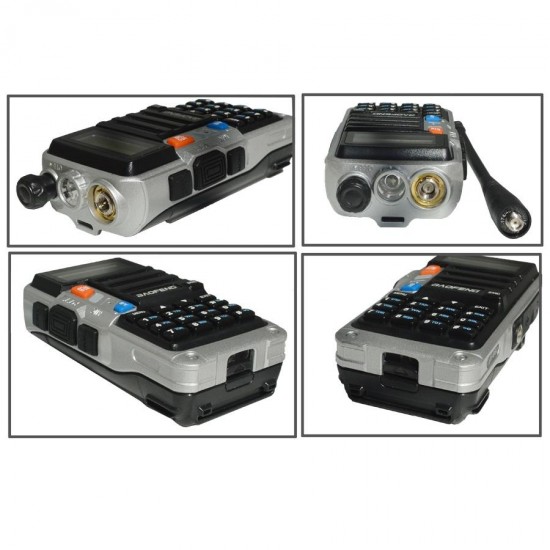

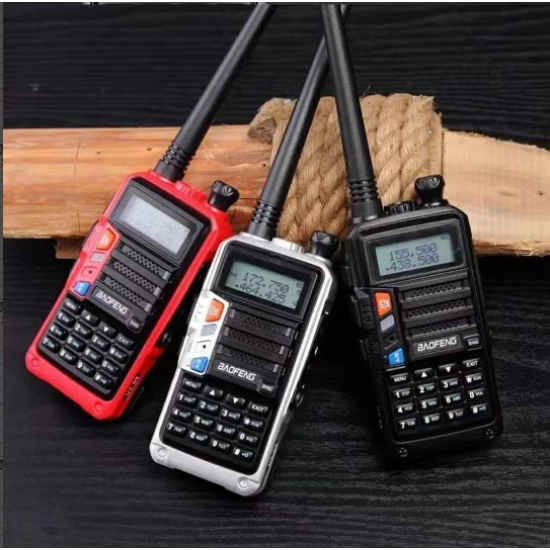

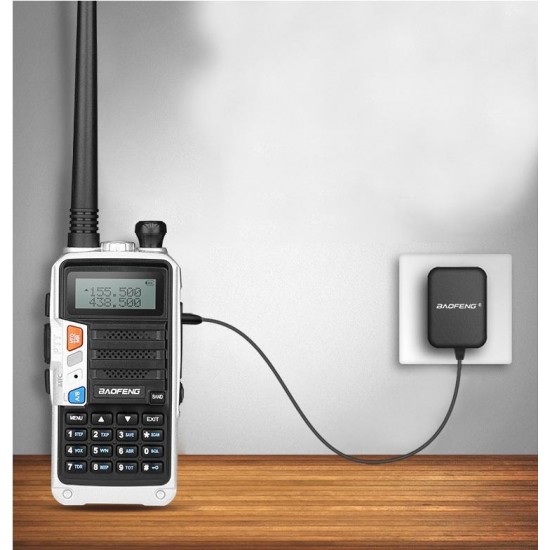

Details pictures :


Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511

Baofeng-UV-860-Dual-Band-Frequency-Two-Way-Radio-136-174400-520Mhz-Ham-CB-Radio-128-Channels-Walkie--1554511
