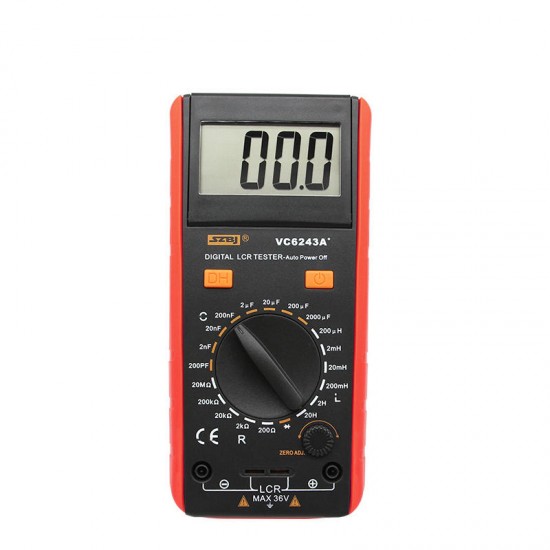

VC6243A Digital LCD Meter Inductance Capacitance Resistance Tester Multimeter Crocodile Clip Measuring Tool with Bag BM4070

Based on 0 reviews. - Write a review

$27.56

Ex Tax: $27.56

Stock: In Stock
Model: EB004251
SKU: EB004251

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

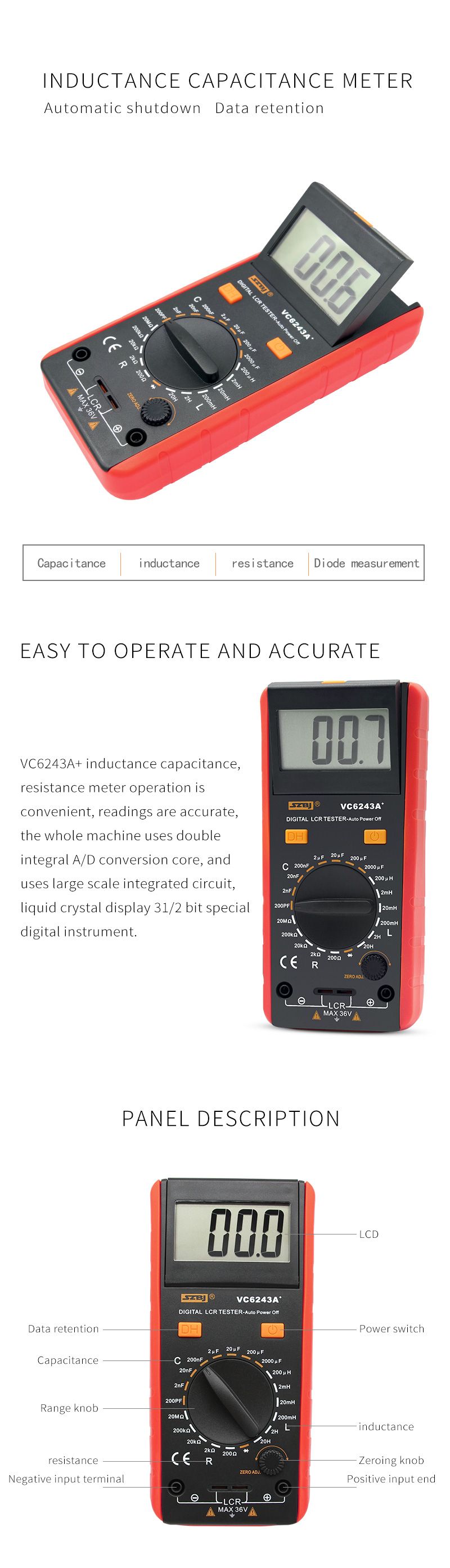

VC6243A is inductance, capacitance and resistance measuring meter.

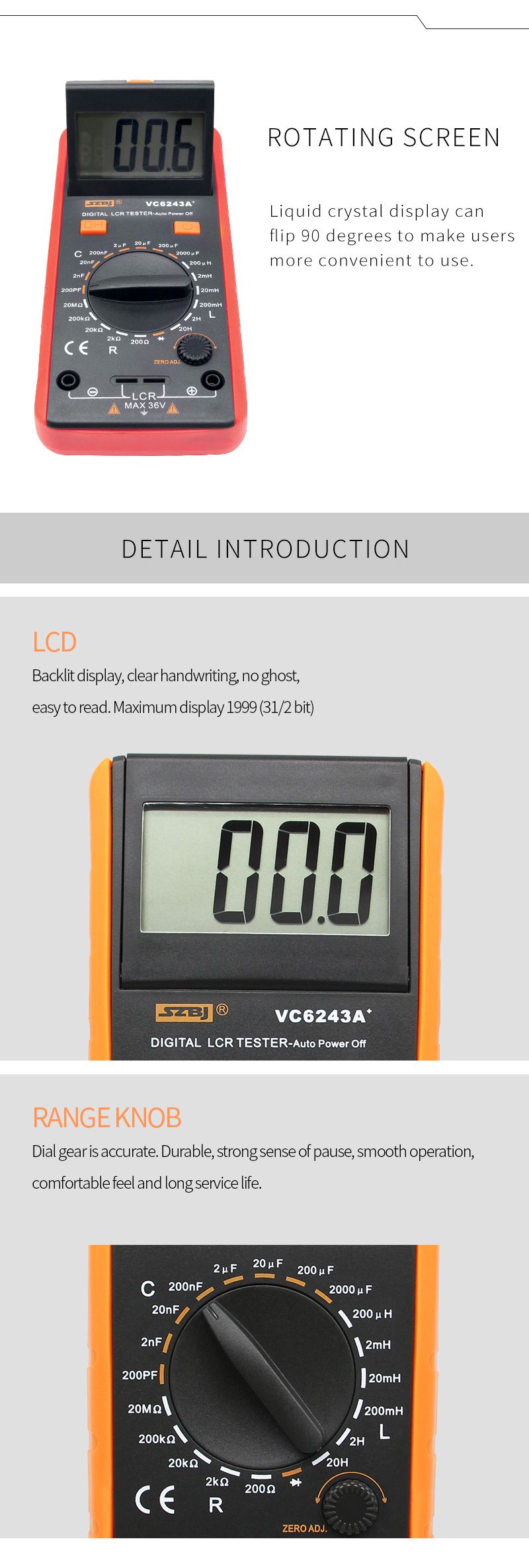

It is a special digital instrument which is easy to be operated, and the reading accuracydegree is higher with liquid crystal display 3 1/2.

It is employed double integral A/D converter core and a large-scale integrated circuits, which makes the meter anexcellent performance instrument for the users.

Specification:

Display: LCD

Biggest display value: 1999 (31/2)

Measuring method: Double integral A/D conversion.

Sampling rate: 3 times per second D

Overrange display: "1" at the higgest digit

Instruction for low voltage of battery: showing “- + ”

Auto power off and Data Hold function

Capacitance: 200p/2n/20n/200n/2u/20u/200uF±2.5%±5, 2000uF: ±5%±5

Inductance: 200uH±3.0%±5, 2m/20m/200m/2H±2.5%±5, 20H±5%±5

Resistance: 200/2k/20k/200kΩ±0.8%±5, 20MΩ±2%±5

Working temperature: 0° to 40°,

Storage temperature: -10° to 50°

Power supply: a 9V laminated battery(6F22)(not included)

Shell material: ABS

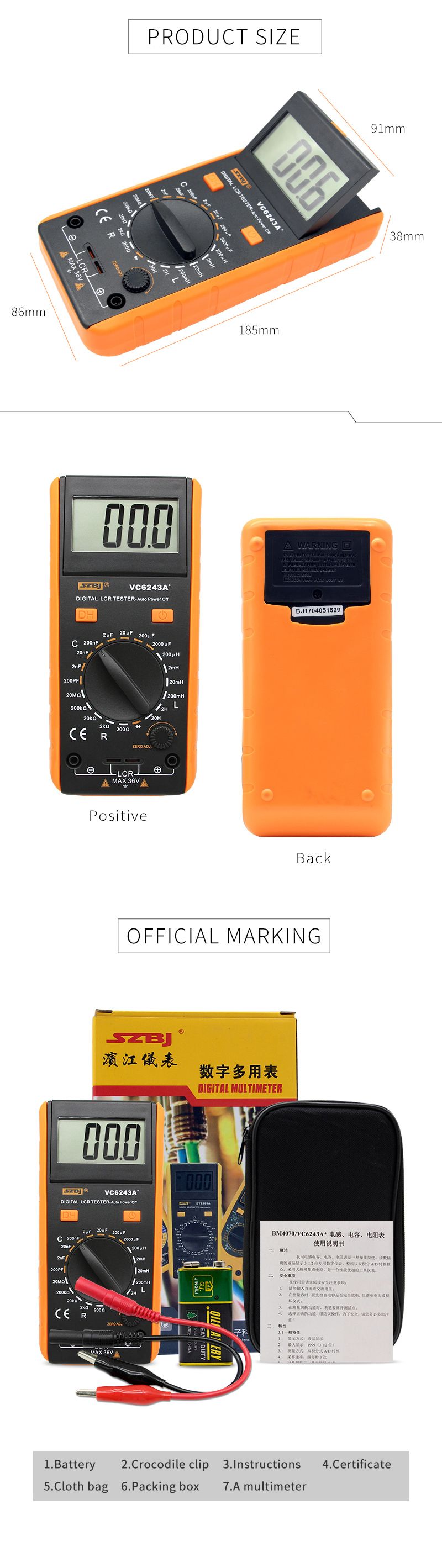

Dimensions: 190x91x40mm/7.48x3.58x1.57inch

Color: Black & red

Quantity: 1 Set

Note:

1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
3.The housing is only red, the picture is for reference only

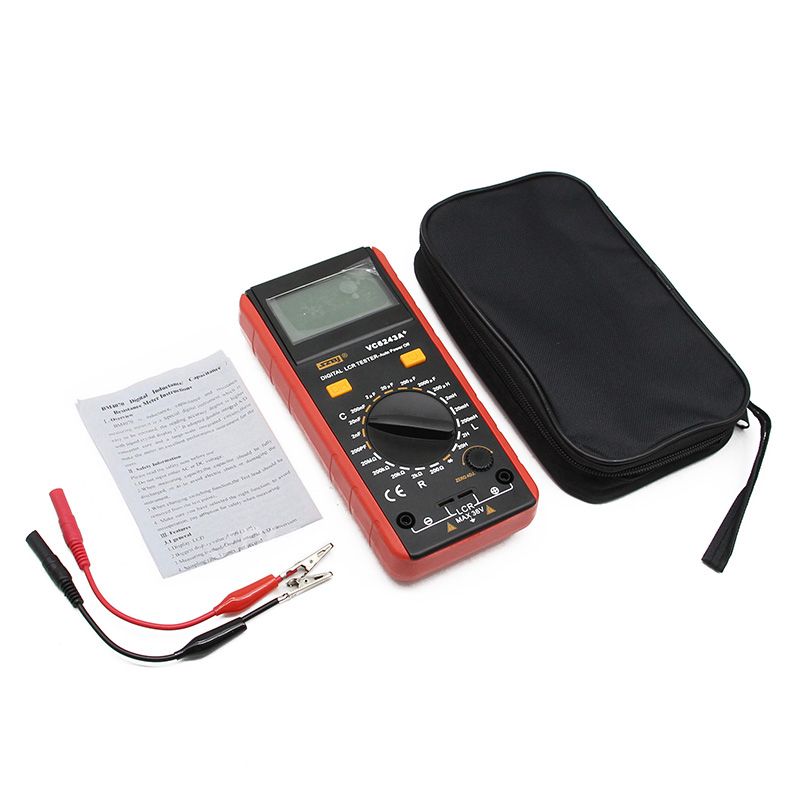

Package includes:

1 x Multimeter

1 x Pair of Crocodile Clip

1 x User Manual

1 x Portable Bag

Details pictures:

VC6243A-Digital-LCD-Meter-Inductance-Capacitance-Resistance-Tester-Multimeter-Crocodile-Clip-Measuri-1526250
