VC835 3 1/2 Auto Range LCD Display True RMS Digital Multimeter Non-contact Voltage NCV Detect with Data Hold
- Stock: In Stock
- Model: EB004444
- SKU: EB004444
Features:
Specifications:
Technical Data
| Basic function | Range | Basic Accuracy |
| DCV | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
| ACV | 2V/20V/200V/600V | ±(0.8%+6) |
| DCA | 200uA/2000uA/20mA/200mA/2A/10A | ±(1.0%+5) |
| ACA | 200uA/2000uA/20mA/200mA/2A/10A | ±(1.5%+5) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |

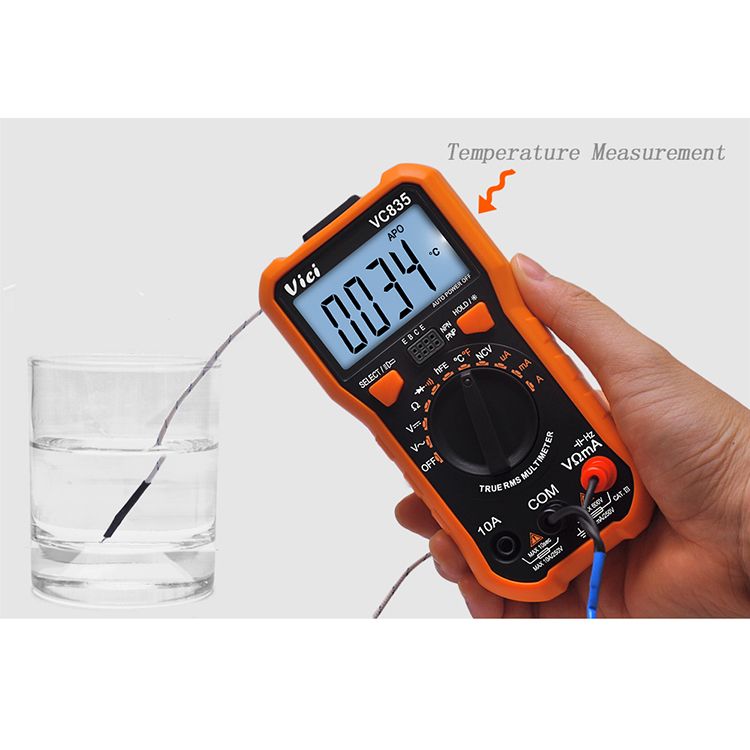

| Temperature | -40℃ ~ 1000℃ | ±(1.0%+5) |
| 0℉ ~ 1832℉ | ±(1.0%+5) |
| Special function | VC835 |
| True RMS | √ |

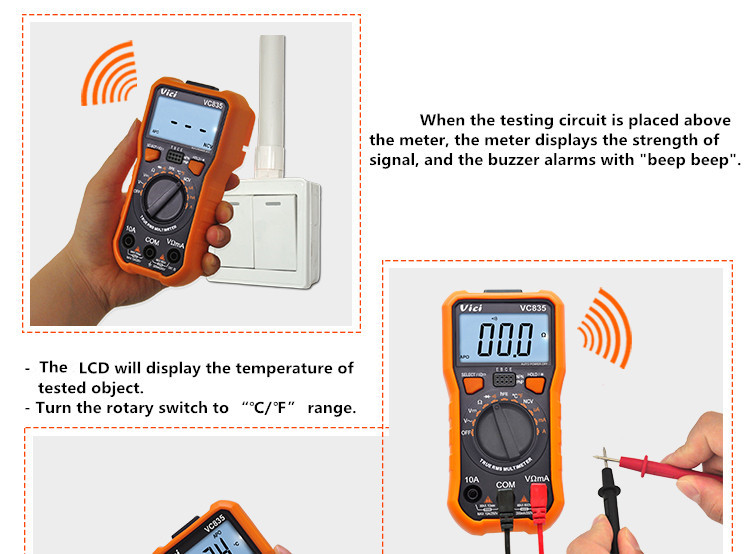

| NCV | √ |
| Data hold | √ |
| Function protection | √ |
| Torch function | √ |
| Backlight display | √ |
| Diode test | 0V~2V, it displays “OL” if over 2V |
| hFE test | 0~2000 |
| Continuity alarm | Less than 50Ω, it displays “OL” if over 200Ω |
| Low battery indicator | Approx. less than 2.4 V |
| Auto power off | About 15 minutes |
| Input impedance | 10MΩ |
| Sampling rate | 3 times/s |
| AC frequency response | 40Hz-2kHz |
| Operation method | Auto range |
| Max. display | 2000 |

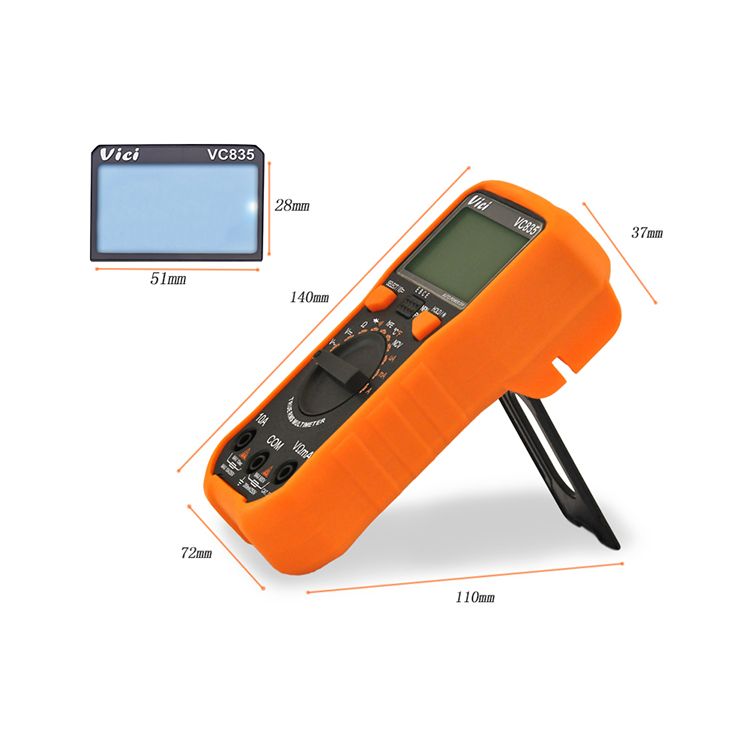

| LCD size | 61x28mm |

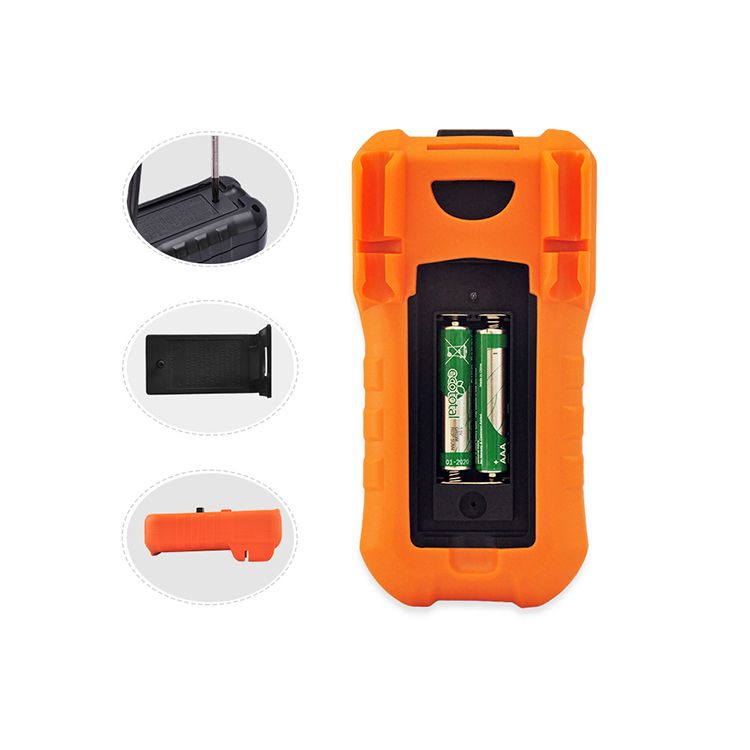

| Battery | 3V AAA×2 |
| Power consumption | Quiescent current about 2mA |

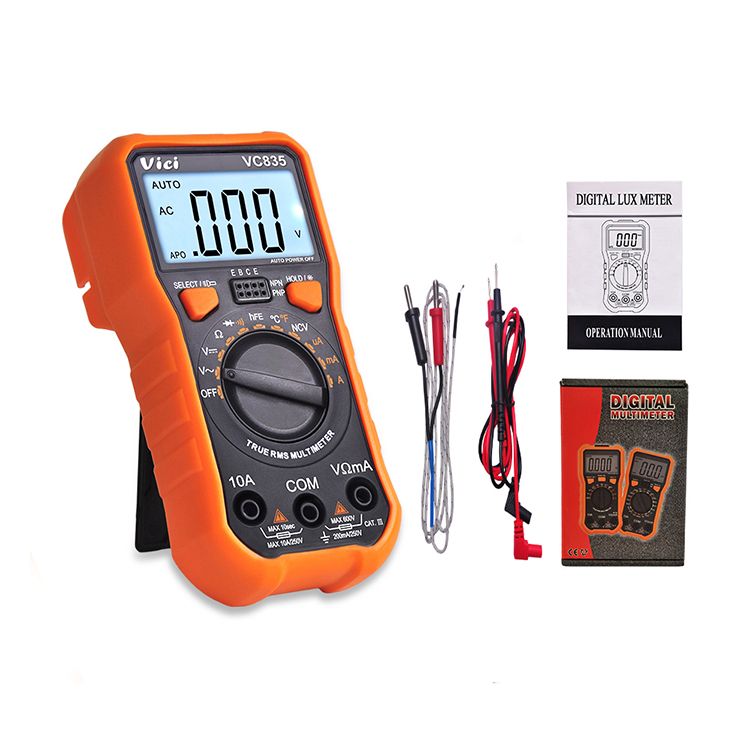

Package Included:

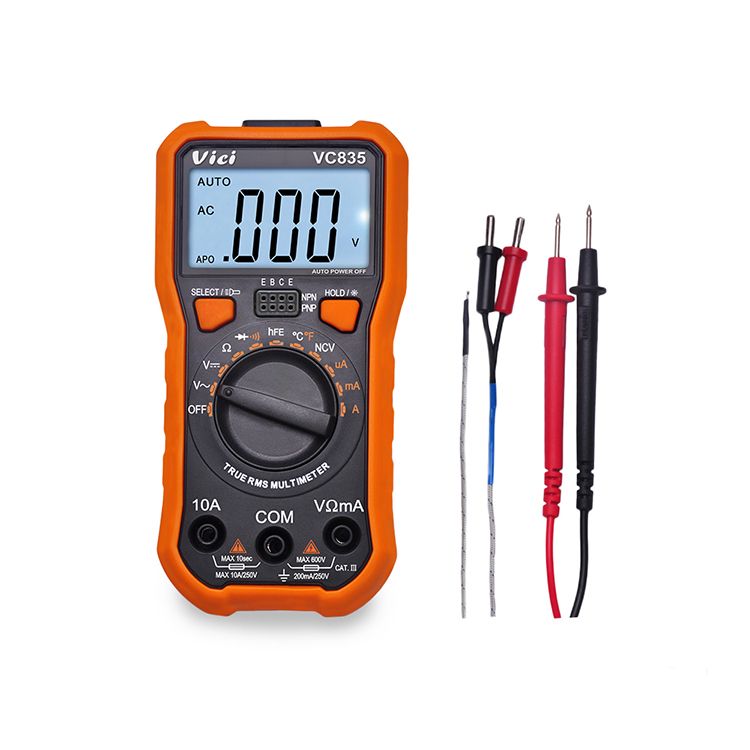

1 x VC835 Digital Multimeter
1 x Test leads
1 x manual

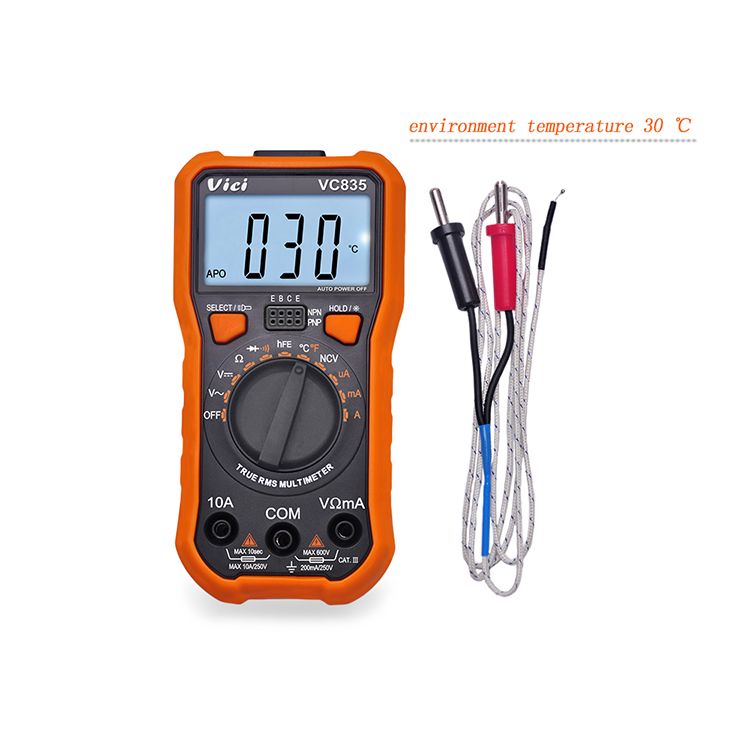

1 x TP01 temperature probe

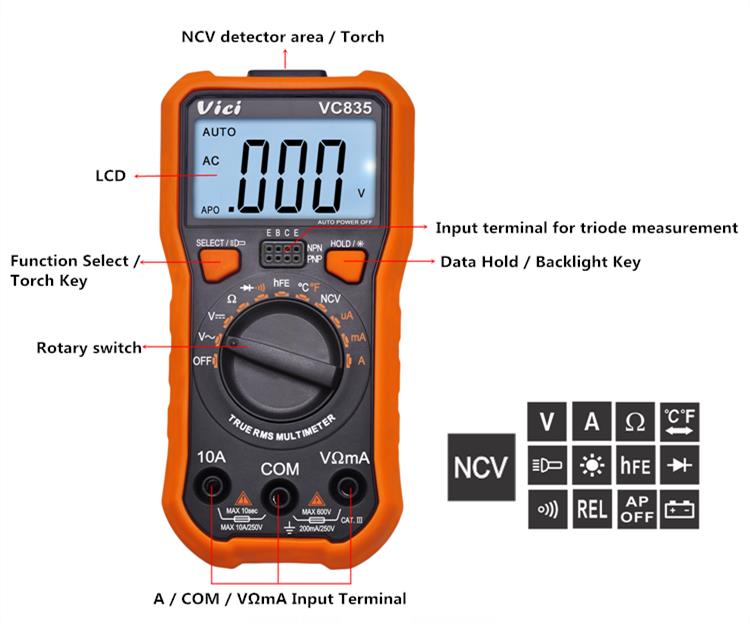

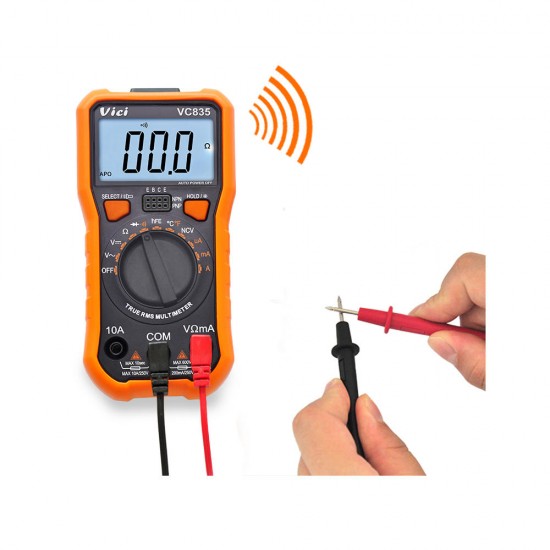

Detail Pictures:
