VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface

VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
VGA OV7670 CMOS Camera Module Lens CMOS 640X480 SCCB With I2C Interface
$5.39
Ex Tax: $5.39
  • Stock: In Stock
  • Model: EB0049201
  • SKU: EB0049201
>
Features:

1. High sensitivity for low-light operation
2. Low operating voltage for embedded application
3. Standard SCCB interface compatible with I2C interface
4. With AL422 3M-Bits FIFO.
5. Raw RGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format.
6. Support VGA, CIF and from CIF to 40 x 30 format
7. Vario Pixel method for sub-sampling
8. Auto image control: AEC, AGC, AWB, ABF, ABLC
9. Image quality control: Color saturation, hue, gamma, sharpness and anti-blooming
10. ISP includes noise reduction and defect correction
11. Support image scaling
12. Lens shading correction
13. Flicker 50/60Hz auto detection
14. Color saturation level auto adjust
15. Edge enhancement level auto adjust
16. De-noise level auto adjust

Parameters:

IO voltage: 2.5V to 3.0V
Operating power: 60mW/15fpsVGAYUV
Sleeping mode: <20μA
Operating temperature: -30 to 70 deg C
Output format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
Lens size: 1/6"
Vision angle: 25 degree
Max. frame rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to noise ratio: 46 dB
Dynamic range: 52 dB
Browse mode: By row
Electronic exposure: 1 to 510 row
Pixel coverage: 3.6μm x 3.6μm
Duck current:: 12 mV/s at 60℃

Package included:

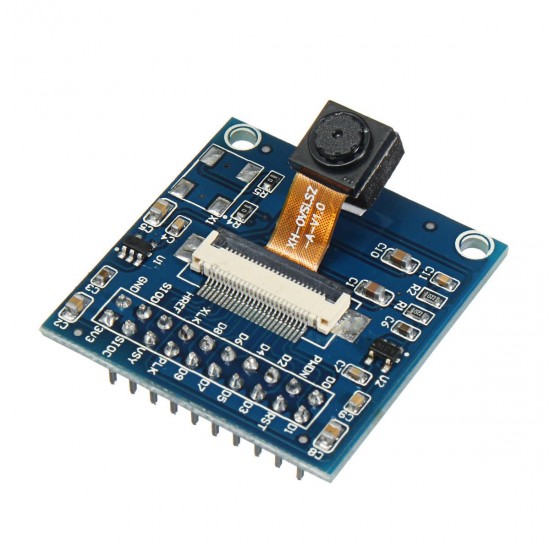

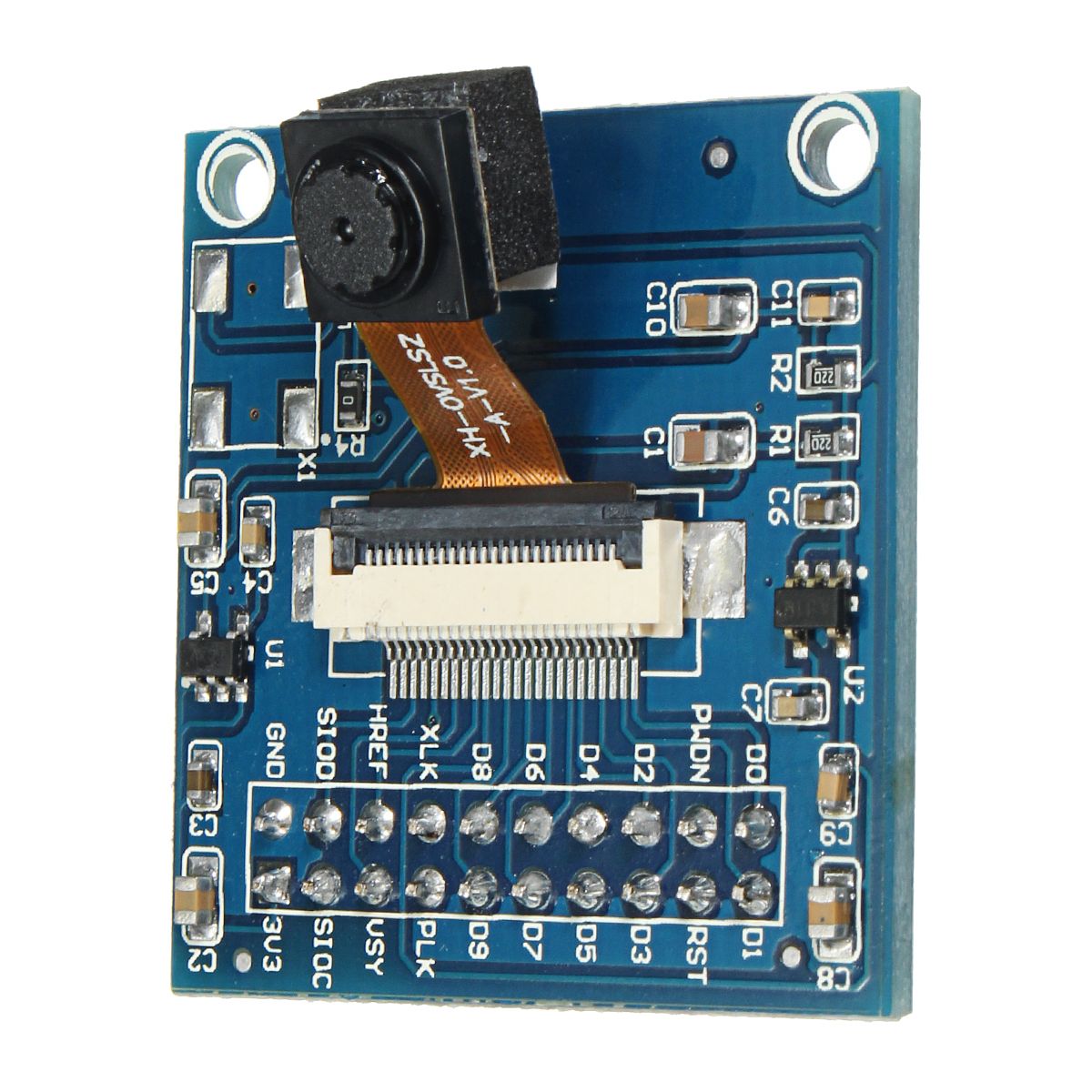

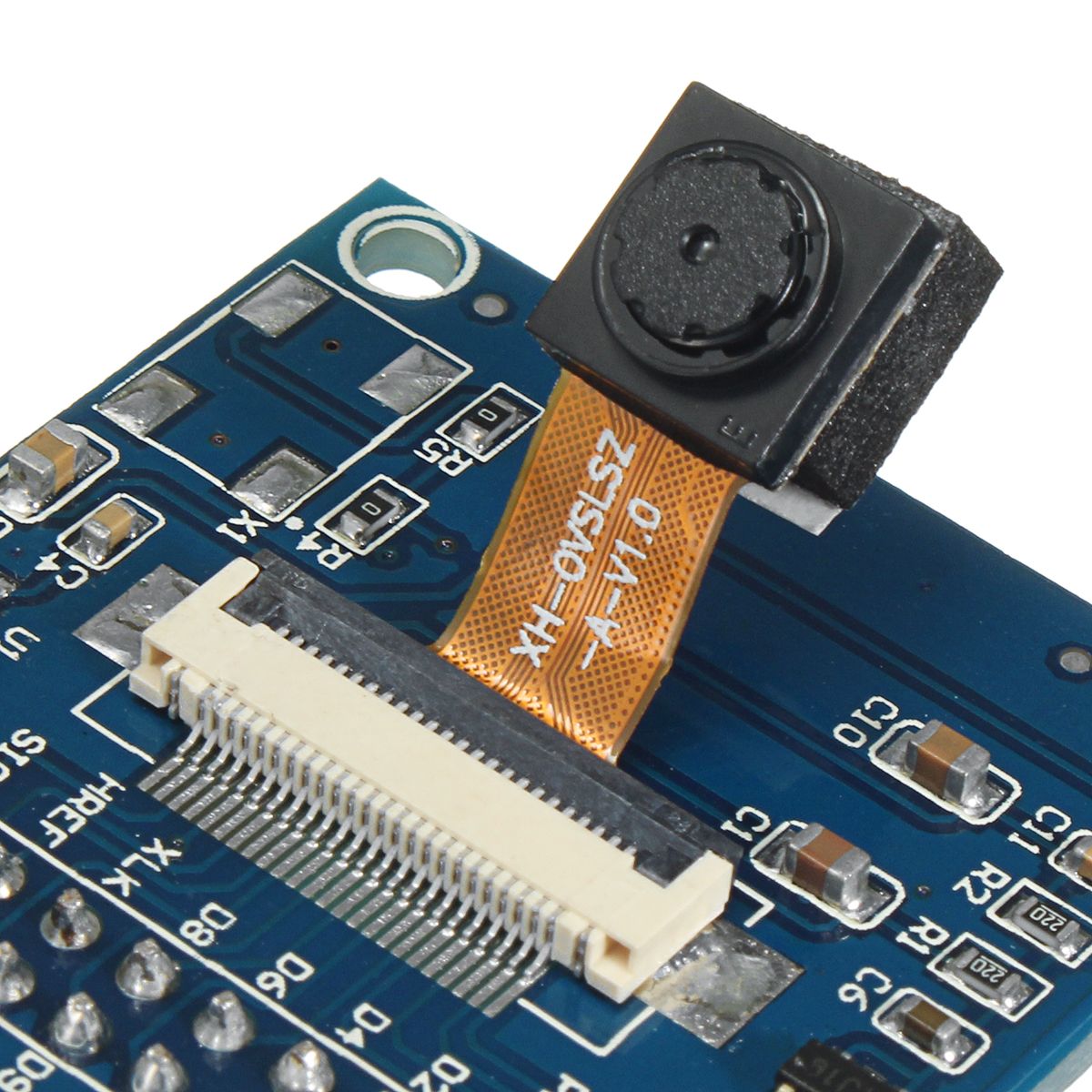

1 x OV7670 camera module
