WZ6008 WiFi Digital Display DC-DC Converter Adjustable CC CV Regulated Laboratory Step Down Power Supply Variable 60V 8A Voltmeter Ammeter

Based on 0 reviews. - Write a review

$5.99

Ex Tax: $5.99

Stock: In Stock
Model: EB0044313
SKU: EB0044313

Available Options

Type

WZ-6008 (+$50.00)

WIFI (+$8.00)

TTL to 485 (+$5.00)

TTL to USB

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 60V

Precise details>>

Precise details:

Note:

1. It is a DC power module,So it can not connect to AC power.

2. Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.

3. It only works on Windows but can not for Mac and others.

4. Please make sure input power is more than load power.

5. Please step down output power if module is hot.

6. Please read use manual and description before use.

Introduction:

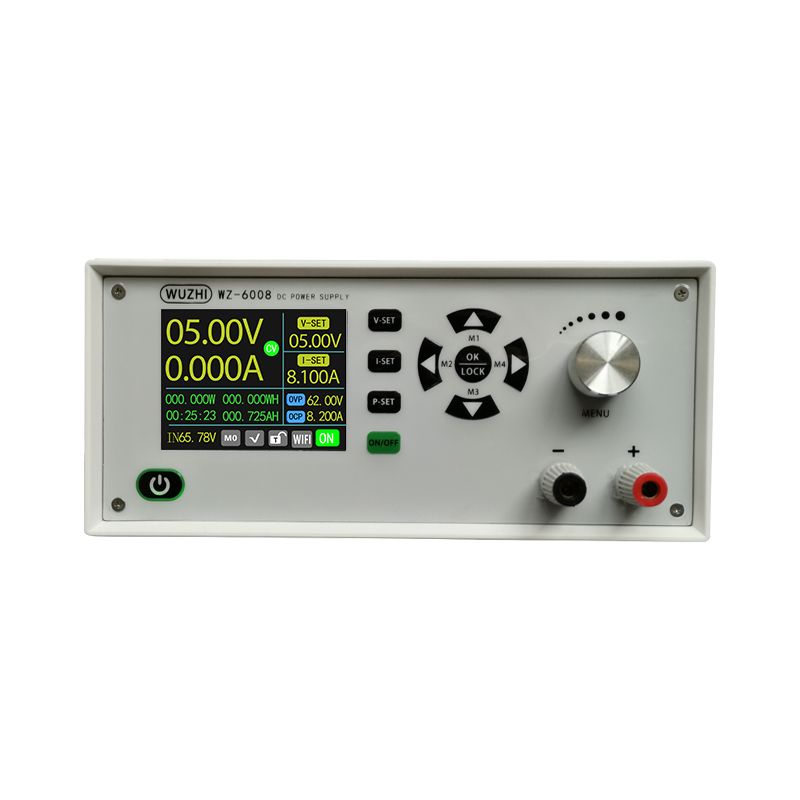

WZ-6008 is a multi-function Step Down Power Supply Module.Its main function is to output voltage as a constant voltage constant current source. It can be used to test the discharge time and discharge capacitance of the input voltage.

It uses a 2.4-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-60.00V adjustable and the output current is adjustable from 0-5.000A.

Function:

1. Constant Voltage Constant Current output

2. 2.4in High-definition LCD screen display

3. 480W High power output

4. 60V high voltage output

5. 8A maximum current output

6. Multiple display pages

7. Support over-voltage protection

8. Support over-current protection

9. Support over temperature protection

10. Support under voltage protection

11. Support button/parameter lock function

12. Support 5 sets of data storage function

13. Parameter super high display resolution

14. Support statistics running time

15. Support statistics output capacity

16. Support statistics output energy

17. Multiple parameters are displayed simultaneously

18. Support power-down memory function

19. Backlight brightness can be set

20. Support PC set and read parameters

Parameters:

1. Product name:WZ-6008 480W Step Down Power Supply Adapter

2. Model:WZ-6008

3. Input voltage:DC 6.0V~70.0V

4. Input voltage resolution:0.01V

5. Output voltage:DC 0.0V~60.0V

6. Output voltage resolution:0.01V

7. Output current:0.000A~8.000A

8. Output Current resolution:0.001A

9. Output power:0.0W~480.0W

10. Input voltage precision:+/-1%

11. Output voltage precision:+/-0.3%

12. Output current precision:+/-0.5%

13. Output ripple value:100mW(Peak)

14. Statistics output time:00:00:00~99:59:59h

15. Statistics output energy range:0~9999.99Wh

16. Statistics output capacity range:0~9999.99Ah

17. Capacity statistical error:+/-2%

18. Screen brightness level:0~6

19. Display:2.4inch TFT LCD

20. Work Temperature:-10℃~40℃

21. Work Humidity:0%~95%RH

22. WZ-6008 Size:170*78*68mm

23. U2T Size:40*24*10mm

Application:

1. Ordinary power supply

2. Battery charger

3. LED drive power

4. Instrument voltage display

5. Test meter

6. Circuit test

7. Power conversion

Package includes: (optional)

Type1:

1 x WZ-6008 power supply (No wifi and communication function)

Type2:

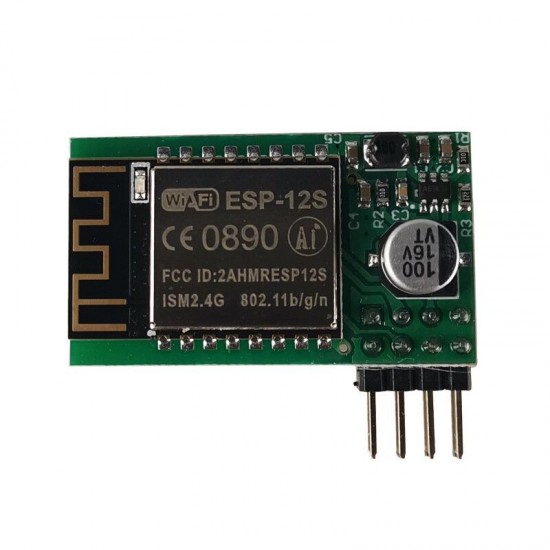

1 x WiFi board only

Type3:

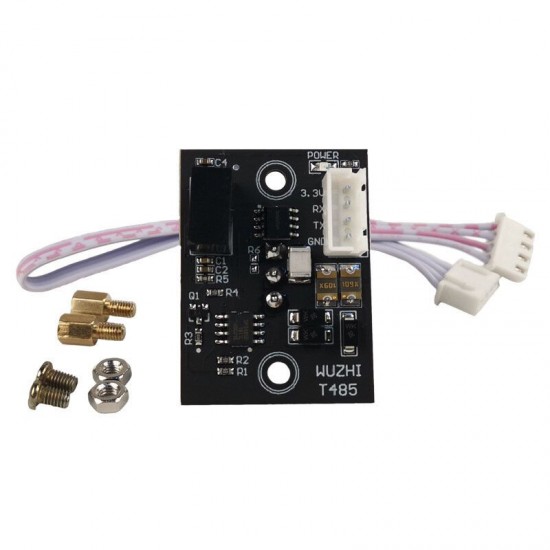

1 x TTL to 485 communication module

Type4:

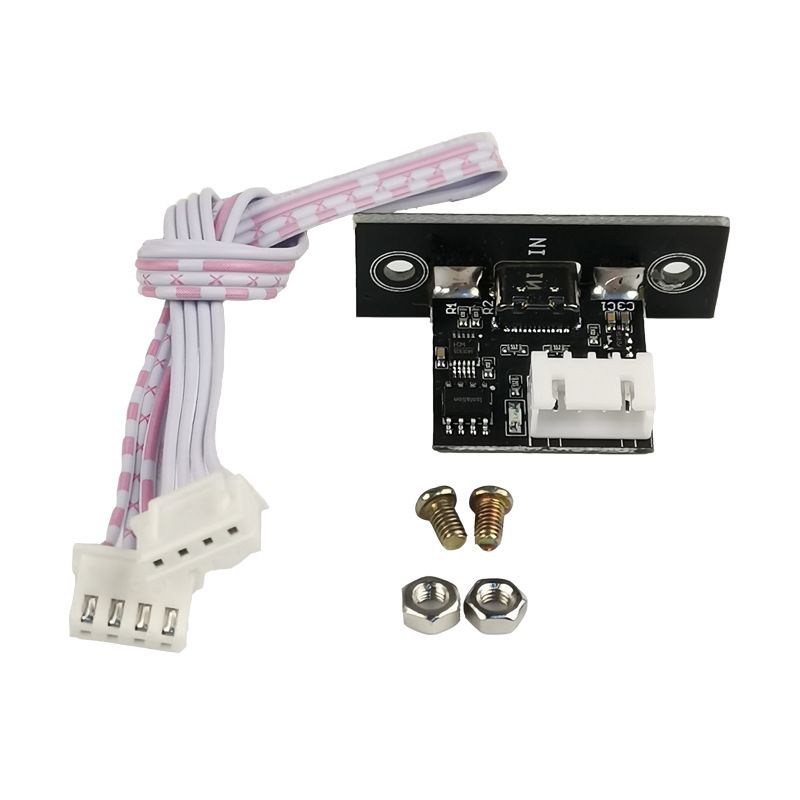

1 x TTL to USB communication module

Note:

1. It is a DC power module,So it can not connect to AC power.

2. Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.

3. It only works on Windows but can not for Mac and others.

4. Please make sure input power is more than load power.

5. Please step down output power if module is hot.

6. Please read use manual and description before use.

Introduction:

It uses a 2.4-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-60.00V adjustable and the output current is adjustable from 0-5.000A.

Function:

1. Constant Voltage Constant Current output

2. 2.4in High-definition LCD screen display

3. 480W High power output

4. 60V high voltage output

5. 8A maximum current output

6. Multiple display pages

7. Support over-voltage protection

8. Support over-current protection

9. Support over temperature protection

10. Support under voltage protection

11. Support button/parameter lock function

12. Support 5 sets of data storage function

13. Parameter super high display resolution

14. Support statistics running time

15. Support statistics output capacity

16. Support statistics output energy

17. Multiple parameters are displayed simultaneously

18. Support power-down memory function

19. Backlight brightness can be set

20. Support PC set and read parameters

Parameters:

1. Product name:WZ-6008 480W Step Down Power Supply Adapter

2. Model:WZ-6008

3. Input voltage:DC 6.0V~70.0V

4. Input voltage resolution:0.01V

5. Output voltage:DC 0.0V~60.0V

6. Output voltage resolution:0.01V

7. Output current:0.000A~8.000A

8. Output Current resolution:0.001A

9. Output power:0.0W~480.0W

10. Input voltage precision:+/-1%

11. Output voltage precision:+/-0.3%

12. Output current precision:+/-0.5%

13. Output ripple value:100mW(Peak)

14. Statistics output time:00:00:00~99:59:59h

15. Statistics output energy range:0~9999.99Wh

16. Statistics output capacity range:0~9999.99Ah

17. Capacity statistical error:+/-2%

18. Screen brightness level:0~6

19. Display:2.4inch TFT LCD

20. Work Temperature:-10℃~40℃

21. Work Humidity:0%~95%RH

22. WZ-6008 Size:170*78*68mm

23. U2T Size:40*24*10mm

Application:

1. Ordinary power supply

2. Battery charger

3. LED drive power

4. Instrument voltage display

5. Test meter

6. Circuit test

7. Power conversion

Package includes: (optional)

Type1:

1 x WZ-6008 power supply (No wifi and communication function)

Type2:

1 x WiFi board only

Type3:

1 x TTL to 485 communication module

Type4:

1 x TTL to USB communication module
