Weight Pressure Sensor Module+Ultra Low Power RF Module Wireless Transceiver Module+Wireless Receiver Module

Based on 0 reviews. - Write a review

$5.99

Ex Tax: $5.99

Stock: In Stock
Model: EB0047466
SKU: EB0047466

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Weight Pressure Sensor Module ID: 1407952

Features:

This module uses high-precision, low-power MCU with 24-bit ADC, with special sensor for kitchen scale, measuring range 0~5kg, accuracy ‐2g (regardless of structural factors, and four-corner error of weighing platform), measurement data passes I2C The mode communicates with the external MCU (see the communication protocol below), which can be used with the Wifi or bluetooth module for intelligent products with weighing.

Specifications:

Range: 1-25kg

Output sensitivity: 1.0 (error less than 0.15)

Nonlinear: 0.05% F.S

Lag: 0.05% F.S

Repeatability: 0.05% F.S

Creep: 0.05% F.S/3min

Zero output: +-0.1mV/V

Output impedance: 1000+-10

Input impedance: 1000+-10

Operating temperature: -10 to 60 ° C

Current: <3MA (weighing mode) / <3UA (standby mode)

Mechanical rigidity: rigidity

Number of layers: double-sided

Substrate: glass fiber

Insulation material: organic resin

Insulation thickness: conventional board

Flame retardant properties: V1 board

Processing technology: electrolytic foil

Reinforcement material: fiberglass cloth base

Insulating resin: epoxy resin (EP)

Note:

All data is high byte high first, low byte Bit0 last hair, heavy

The quantity data is a signed hexadecimal number.

For more information, please click here: file

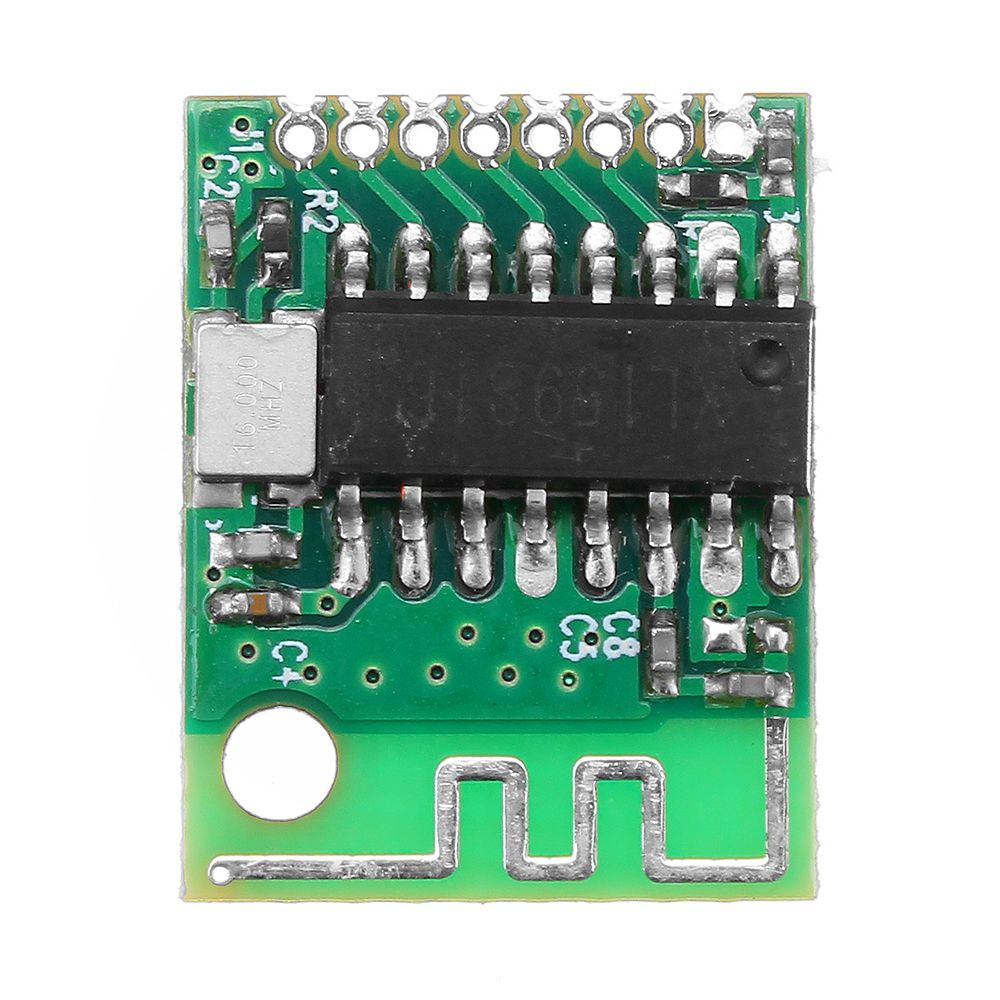

Ultra Low Power RF Module Wireless Transceiver Module ID: 1407282

Specifications:

Size: 30.25 × 8.5 × 1mm3

Model: KSL703B

Working voltage: 1.9V~3.6V

Application range:

Ø Wireless mouse / machine keyboard

Ø Wireless PC peripherals

Ø Active RFID

Ø Toys

Ø Remote consumer electronic equipment RF terminal

Features:

WL703B is a 2.4G short-range transceiver module with GFSK modulation. The module integrates RF transceiver channels, GFSK modems and data links. Users only need to make simple settings for the receiving/transmitting channel to communicate. In Auto Transceive mode, the chip can automatically judge whether the data is transmitted/received successfully according to the response information, thereby re-transmitting, losing packets, continuing to send and waiting, etc., simplifying the user program.

Ø Adopt ASK demodulation mode, the receiving sensitivity reaches -110dBm;

Ø 2.4GHZ ISM bandwidth

Ø Code rate: 2Mbps/1MBbps

Ø Very low power consumption (normal temperature):

Emission current: 14.8mA (P0=0dBm)

Receive current: 17.5mA

Shutdown current: 2.5uA

Standby current: 0.9mA

Ø 1.9~3.6V power supply

Ø Auto Transceive data packet automatic retransmission

Ø Automatic packet processing •

Ø 6 data channels

Ø 5V withstand voltage

Lead number	symbol	Name
1	IRQ	Interrupt signal, active low
2	MISO	SPI data input signal
3	MOSI	SPI data output signal
4	SCK	SPI clock signal
5	CSN	SPI chip select signal
6	CE	Chip chip select signal
7	VDD	power input
8	GND	Ground

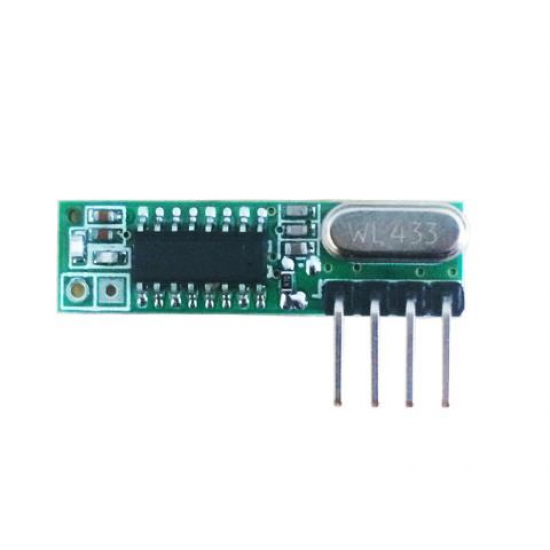

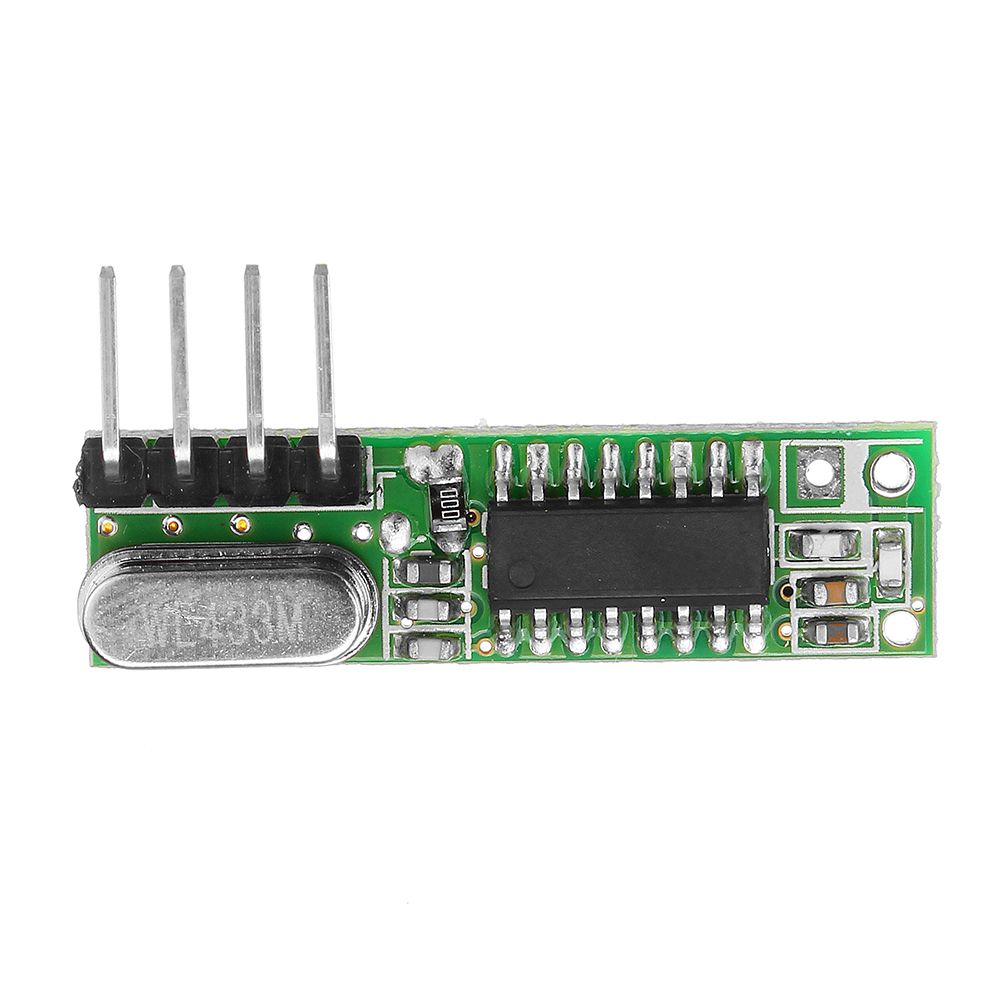

Wireless Receiver Module ID: 1407280

Overview:

The RX500A is a highly integrated, ultra-low power monolithic ASK/OOK RF receiver module that is an upgrade to the module RX480A/RX480S.Operating voltage range of 2.0V ~ 5.5V and very high sensitivity of -108dBm, and ultra-low operating current of 2mA, making it ideal for a variety of low-power equipment and so on.

Features:

- Perfectly compatible with various super regenerative receiver modules

- Complete monolithic UHF receiver

- Standard CMOS interface controls and decodes data output

- RF antenna radiation is very low

- The most economical peripheral device design

- High integration, simple external, stable and reliable

Specifications:

Frequency range: 315MHz / 433.92 MHz

Operating voltage: 2.0V - 5.5V

Low power mode:3mA (315MHz, Full Operation) / 3.5mA (433.92MHz, Full Operation)

Receiver sensitivity:-108 dBm @ 315MHz/-108 dBm @ 433.92MHz

Data rate: up to 5kpbs

Applications:

Remote control fan/Remote light/Remote control door/Remote keyboard/Remote RFID/Smart home controller/Remote control toys/Wireless encryption device receiver/Short-distance remote control

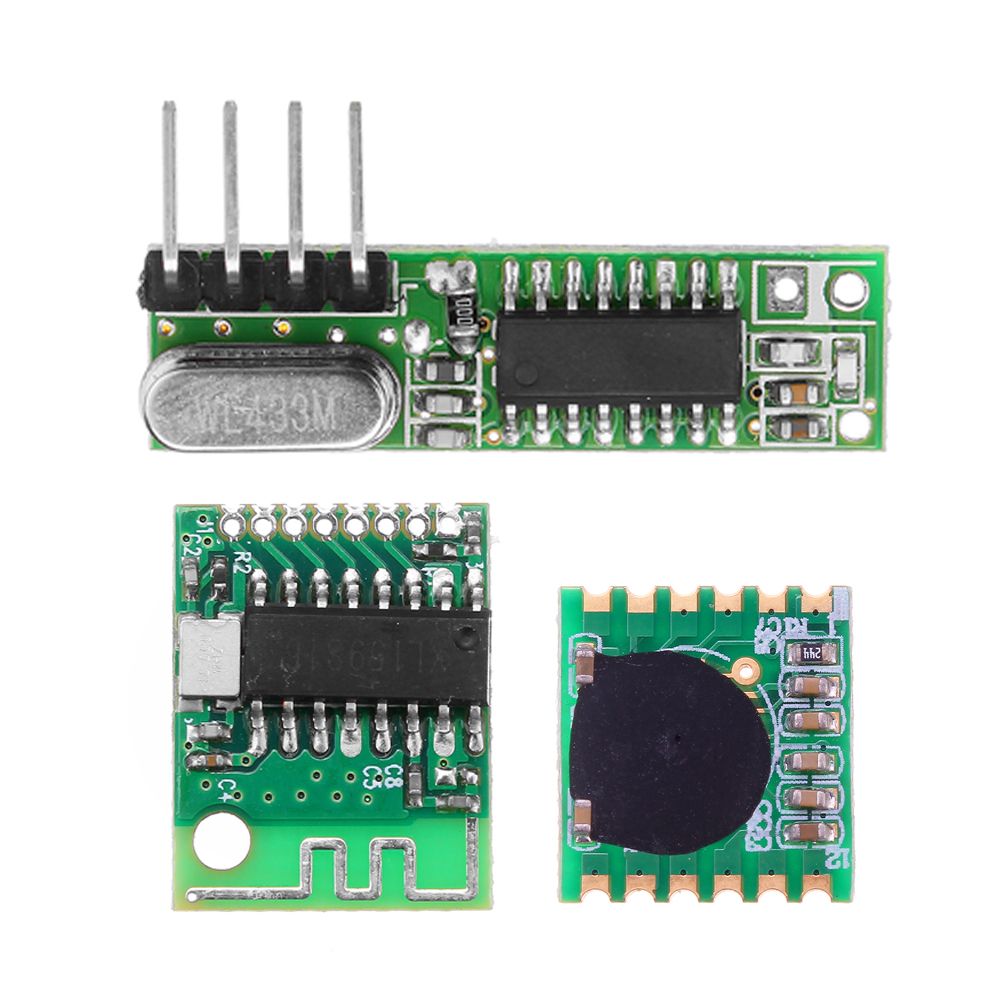

Package Included:

1 x Pressure Sensor Module
1 x Ultra Low Power RF Module Wireless Transceiver Module
1 x Wireless Receiver Module
