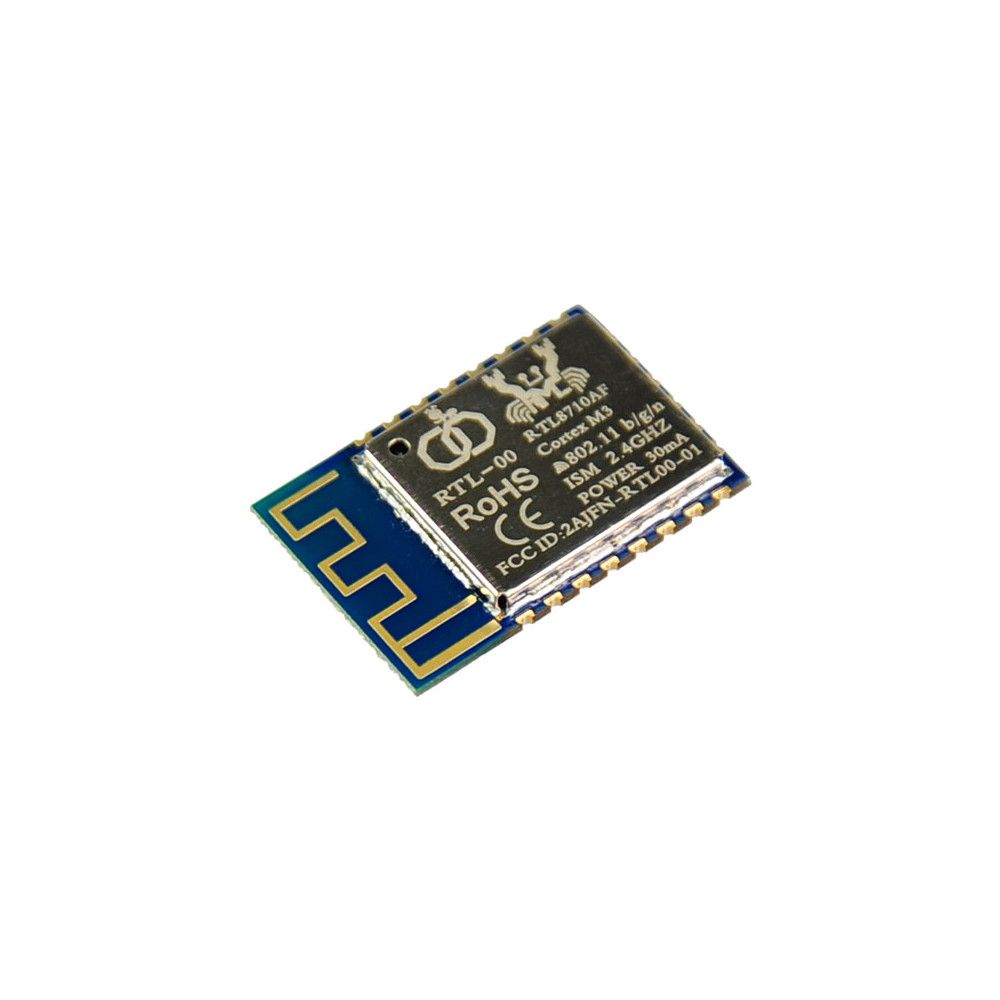

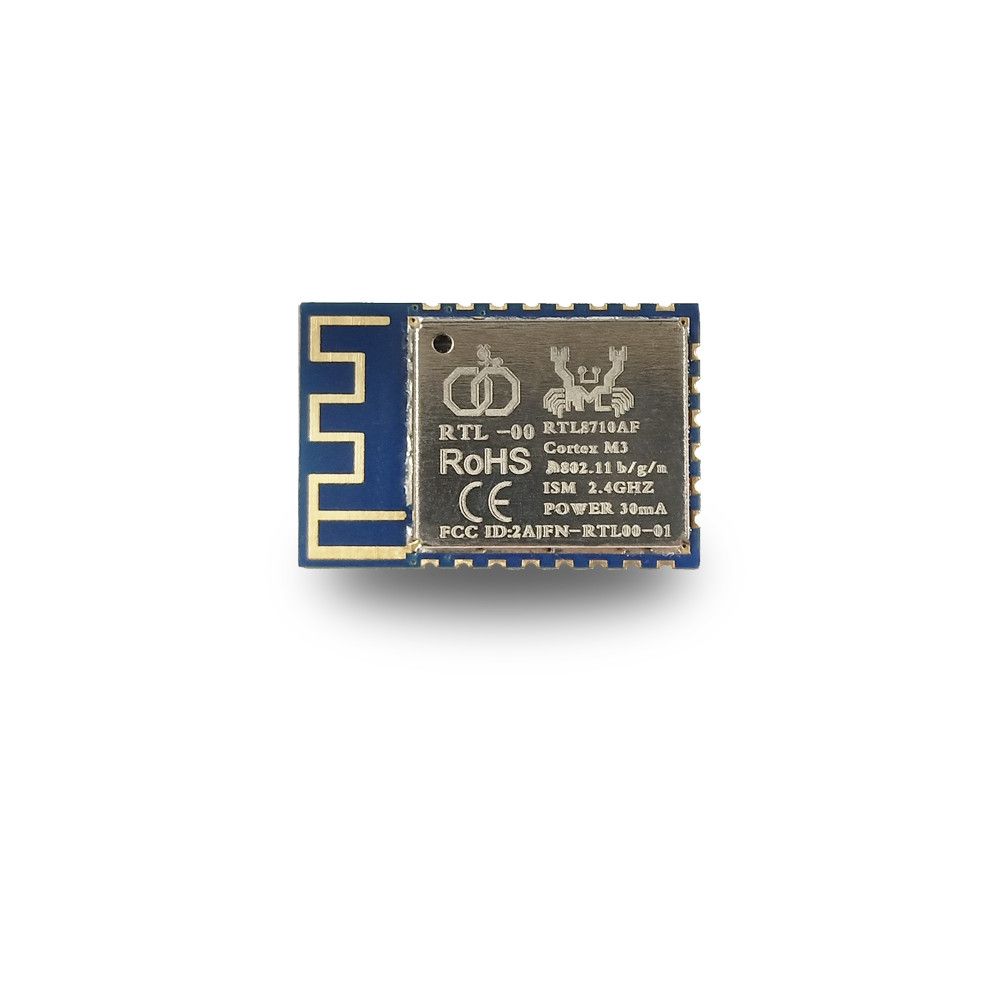

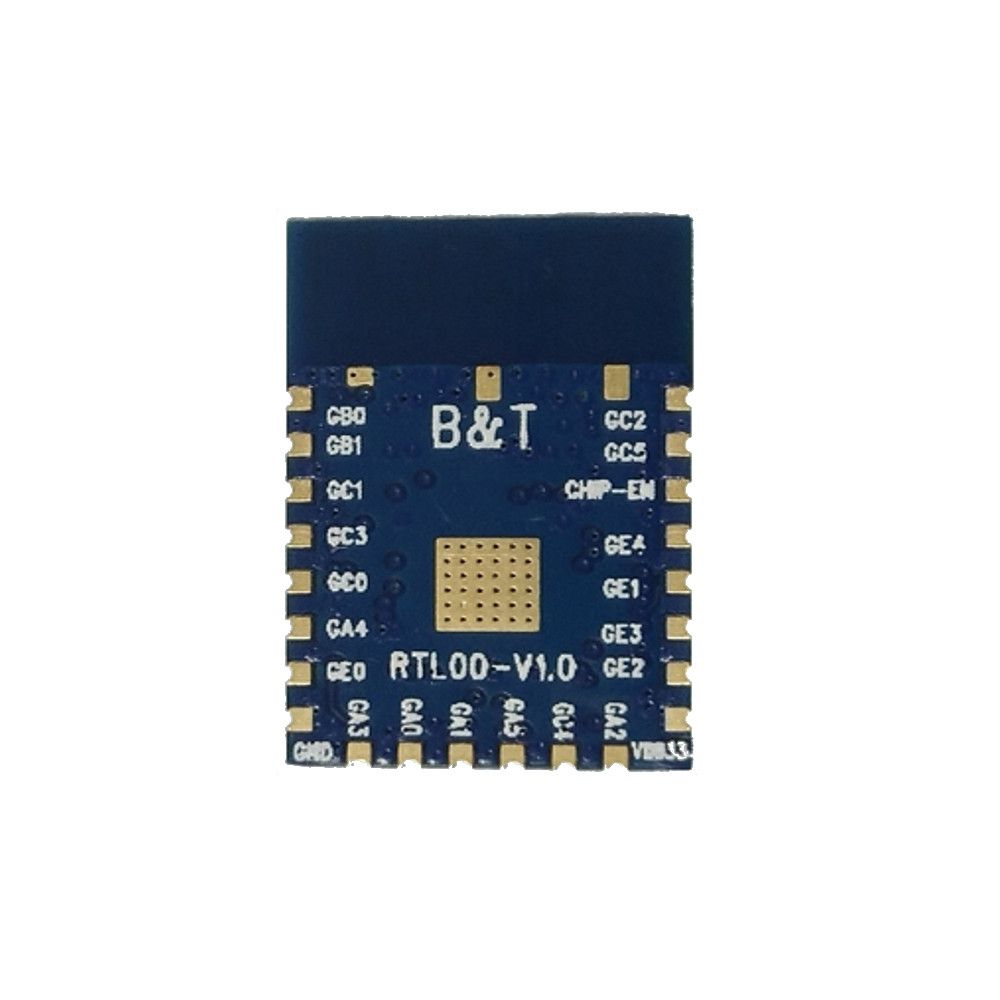

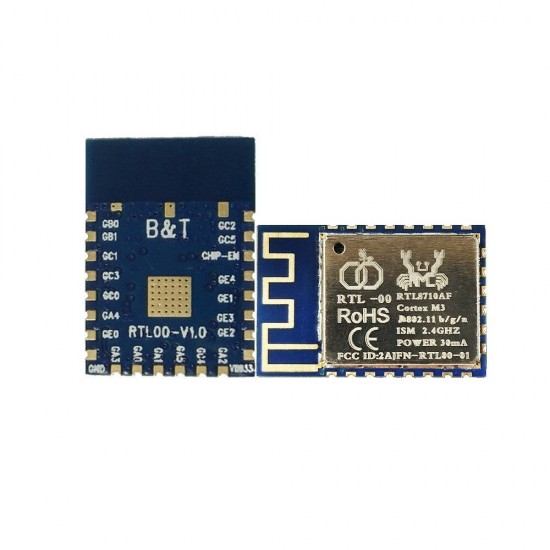

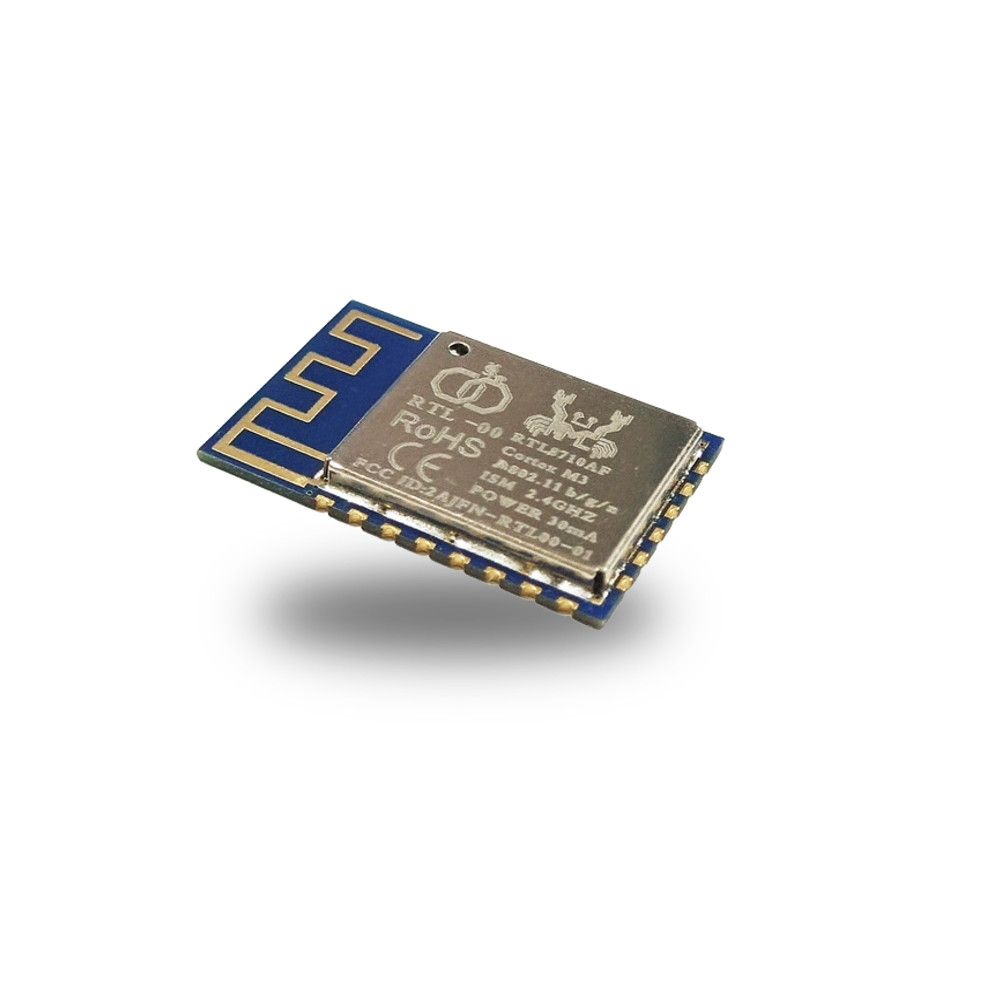

WiFi RTL8710AF Serial Port to WiFi Wireless Transparent Transmission PCB Onboard Antenna RTL-00 Module Communication Distance 80M
- Stock: In Stock
- Model: EB0045470
- SKU: EB0045470
Feature:
| Category | Parameter | Description |
| Wireless parameters | Wireless standard | 802.11 b/g/n |
| Frequency Range | 2.4GHz-2.5GHz (2400M -2483.5M) | |
| Hardware Paramaters | CPU | ARM Cortex M3 (83MHz) |
| ROM/RAM/Flash | 1MB/512KB/1MB | |
| SPI | Maximum support 2 | |
| UART | 2 high-speed serial ports, 1 low-speed serial port | |
| I2S | Support 4/8/16/32/64/86/44.1 /88.2KHz | |
| I2C | Maximum support 3 | |
| GPIO | Support up to 17 | |
| Operating Voltage | 3.0~3.6V (recommended 3.3V) | |
| Operating temperature | -20°C~85°C | |
| storage temperature | Room temperature | |
| Package size | 24mm*16mm*0.8mm | |
| Wireless network mode | Station/softAP/SoftAP+station | |
| Software Parameters | Data throughput | 802.11g maximum 54Mbps |
| 802.11n maximum is 150bps | ||
| Encryption | MD5/SHA/HMAC-SHA | |
| Security Mechanism | WPA/WPA2 | |
| Encryption type | WEP/TKIP/AES | |
| Upgrade firmware | Local serial port burn/cloud upgrade/host download and burn | |
| Software development | Support customer custom server | |
| Network protocol | TCP/UDP/HTTP/FTP | |
| User configuration | AT+ command set, cloud server Android/iOS APP |
Package includes:
1 x Board
