Wireless Module Extend RS485/TTL CAN/I2C Port with MCP2515 TJA1051 SP3485 Development Board EP32 Kit

Description:

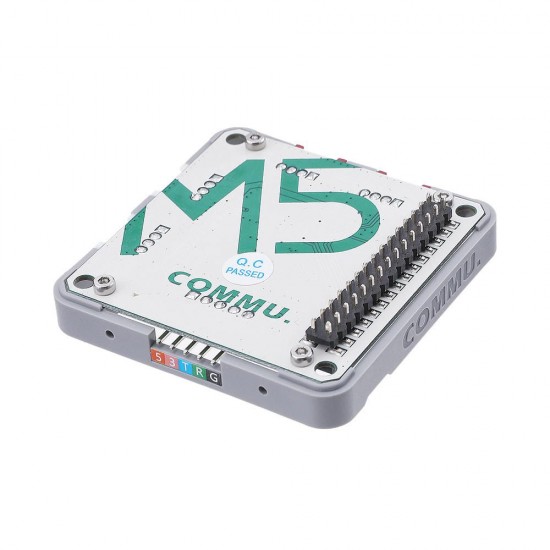

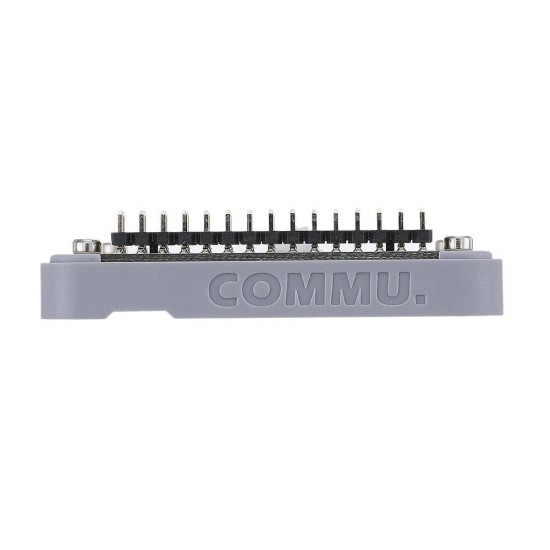

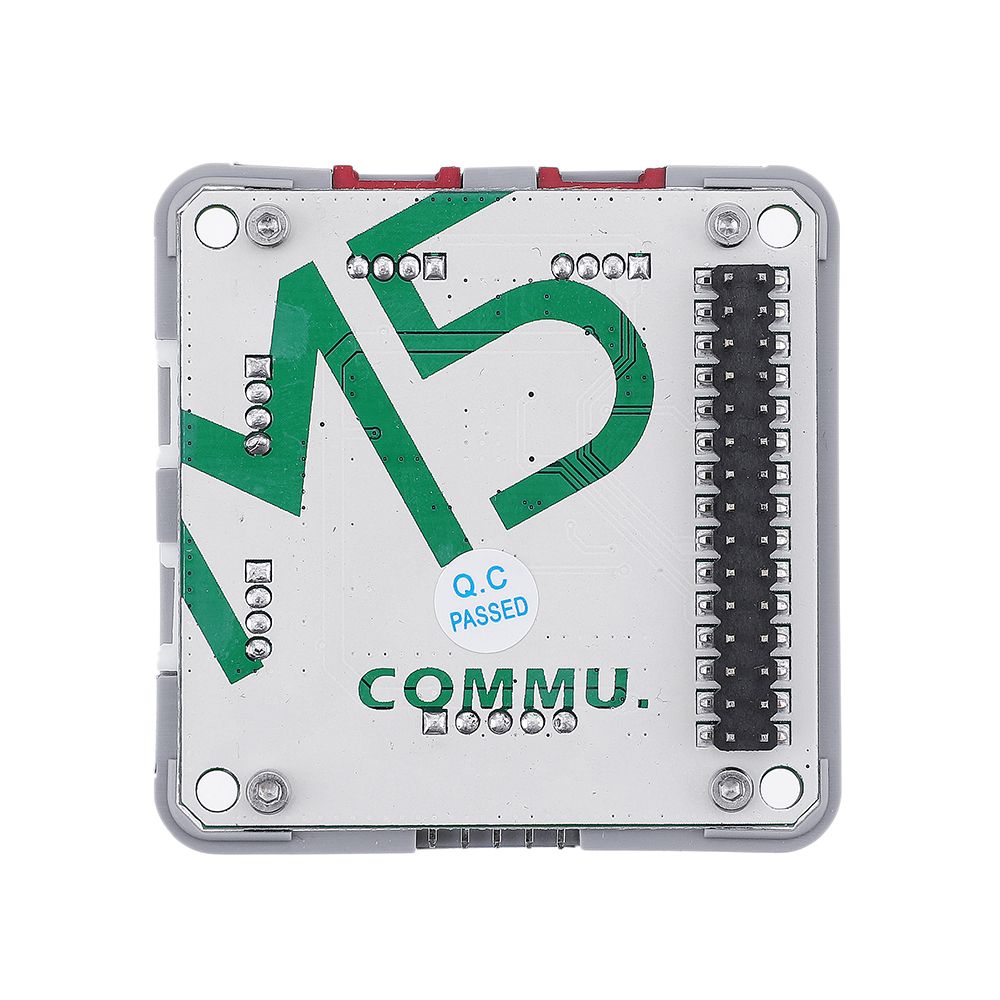

COMMU is a Muti-Communication-Interface-Converter. Integrated with 2IIC, 1TTL, 1CAN, 1RS485. Apparently COMMU has packed with most of series communications.

Default connection: TTL - UART0, RS485 - UART2. Since ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins.

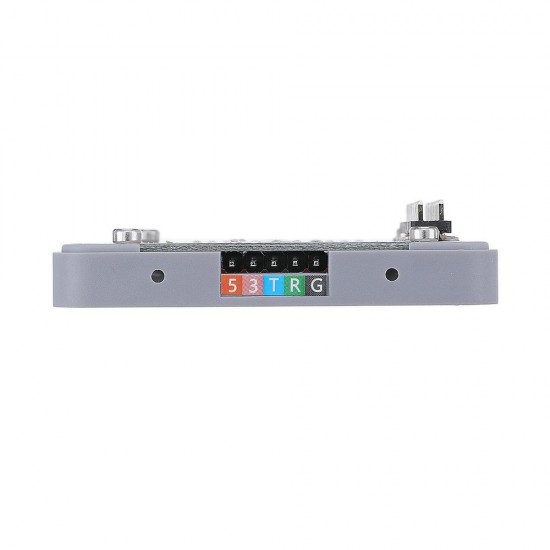

Be care about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changed those jumpers(J6, J7, J9, J10).

Product Features:

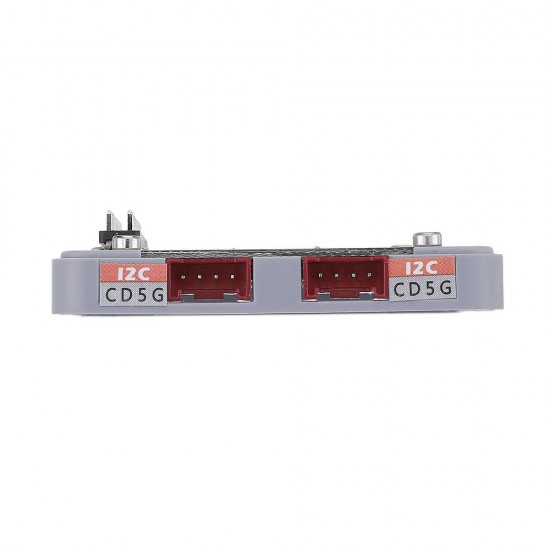

• 2x I2C Interface

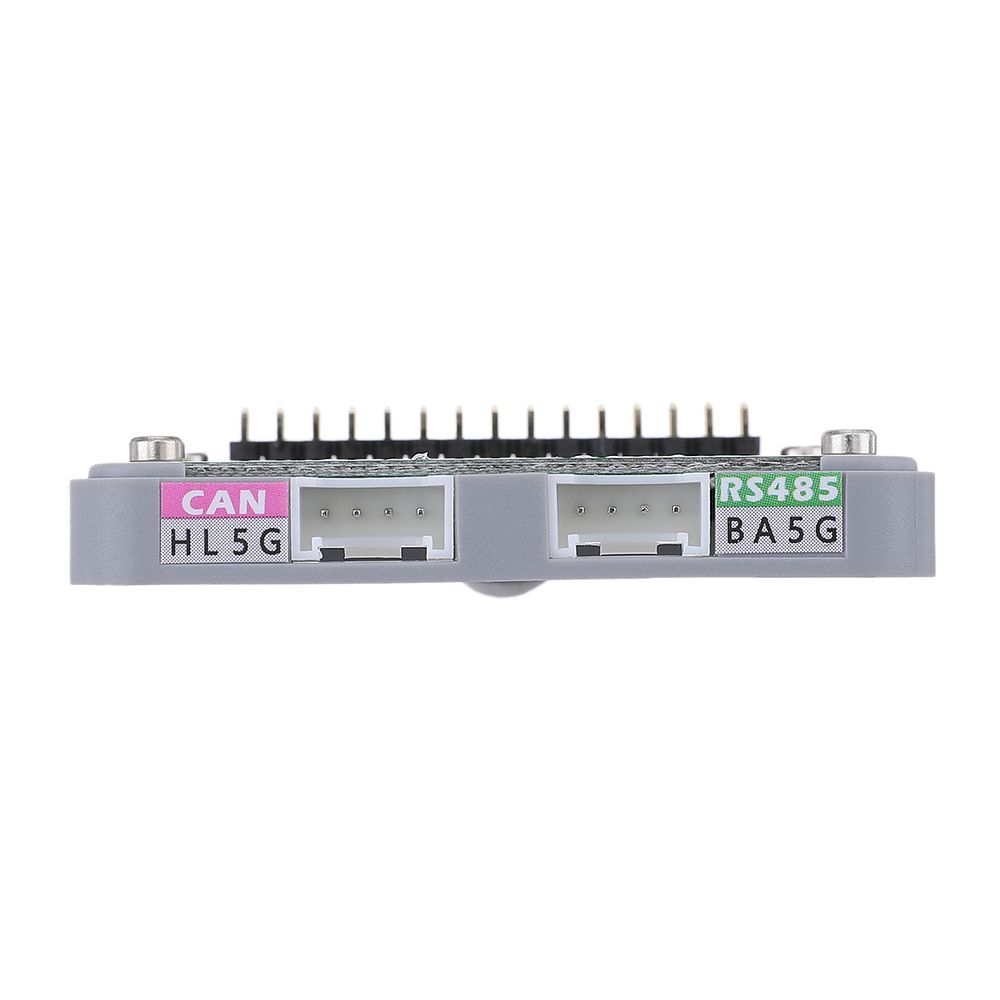

• 1x CAN Interface
• 1x RS485 Interface
• 1x TTL Interface

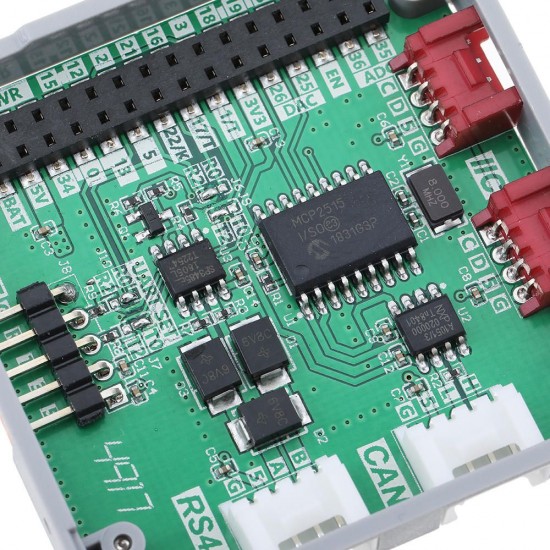

• CAN controller: MCP2515-1/SO
• RS485 Transceiver: SP3485EN-L/TR
• Product Size: 54.2mm x 54.2mm x 12.8mm
• Product weight: 13.5g

Package Included:

• 1x M5Stack COMMU Module

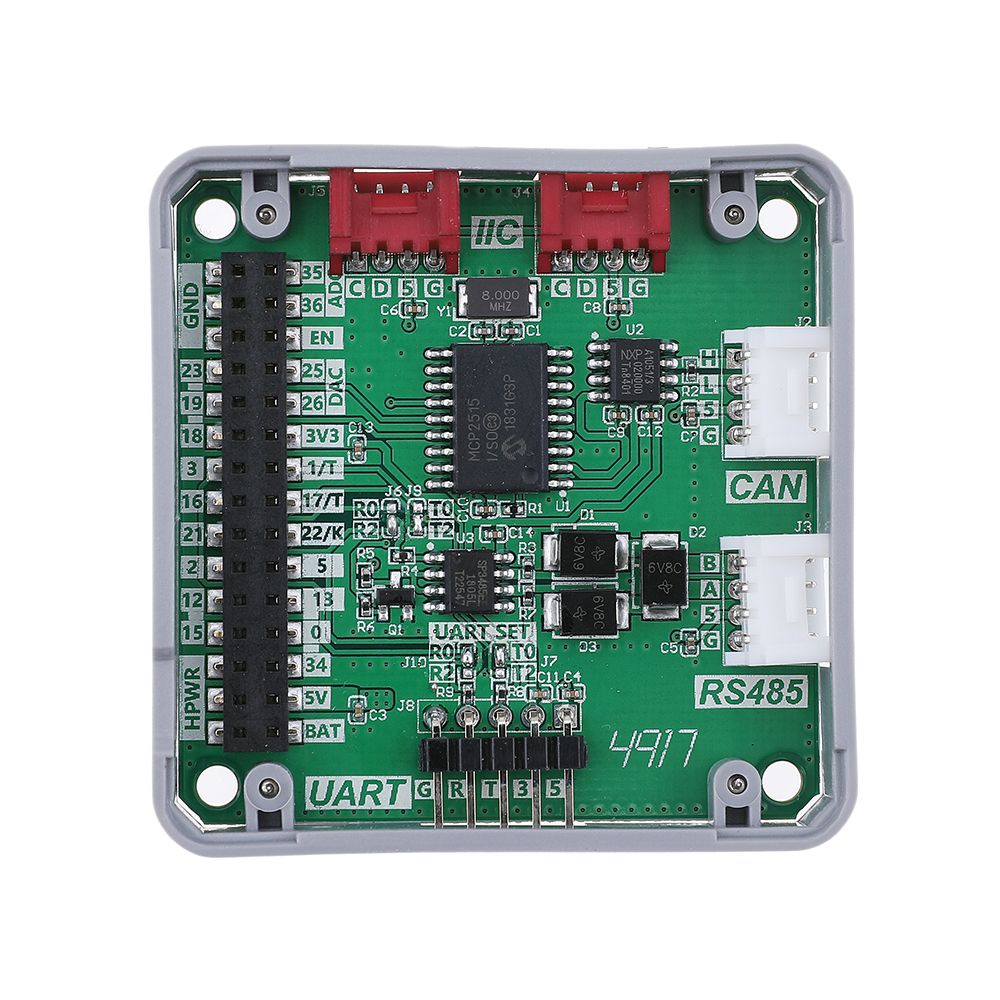

PinMap:

Related Link:

• Offical Video: https://www.youtube.com/channel/UCozgFVglWYQXbvTmGyS739w

• Forum: http://forum.m5stack.com/

• Datasheet

  • SP3485
  • MCP2515

EasyLoader

click to download EasyLoader: https://m5stack.oss-cn-shenzhen.aliyuncs.com/EasyLoader/Module/EasyLoader_COMMU_Test_A.exe

1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader.

2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click "Burn" to start burning.

3.The CP210X (USB driver) needs to be installed before the EasyLoader is burned. Click here to view the driver installation tutorial:

Example:

for  IDE

CAN communication

These are two COMMU examples for CAN communication, tansmitter and receiver. Press Button A to sent the message, and display the received message on the screen.

Step 1: Copy MCP_CAN_lib file: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Module/COMMU//DependentLibrary/MCP_CAN_lib  to C:UsersDocuments\libraries, Step 2: Open project file commu_can_transmitter.ino, and commu_can_receiver.ino Step 3: Compile and upload the two project to two M5Cores separatly.

The below code is incomplete(just for usage).

  /*      commu_can_transmitter.ino  */  #include <M5Stack.h>  #include <mcp_can.h>  #include "m5_logo.h"    #define CAN0_INT 15 // Set INT to pin 2  MCP_CAN CAN0(12);   // Set CS to pin 10    // declaration  byte data[8] = {0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07};    // initialization  M5.begin();  CAN0.begin(MCP_ANY, CAN_1000KBPS, MCP_8MHZ);  /* Change to normal mode to allow messages tobe transmitted */  CAN0.setMode(MCP_NORMAL);    // send data  CAN0.sendMsgBuf(0x100, 0, 8, data);
