Wireless Remote Control Switch Relay Control Board 433.92MHz Lamp Light Smart Home

Based on 0 reviews. - Write a review

$12.99

Ex Tax: $12.99

Stock: In Stock
Model: EB0040429
SKU: EB0040429

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

The Remote control Specification:

Model Number: KR2201D

RF Frequency: 433.92Mhz.

Input Voltage: AC 90V-250V.

Modulation Mode: ASK.

Receiver Sensitivity: -108 dbm.

RF Working Mode: Superheterodyne Reception.

Remote Control Range: 100 Meters (Open Space).

Support Storing The Quantity Of Remote Control: 32 PCS.

Support The Type Of Remote Control: Learning Code(1527), Fixed Code(2262).

Working Mode: Momentary, Toggle and Latching.

Wiring Connection Way: Fixed Wiring Pillar.

Package Weight: 50g/1.76oz

Note:

This Product NO WIFI Function. Only RF 433.92Mhz Function

How to install this smart switch:

You don't need to open the outer casing of this smart switch

You can wire directly to the terminal block

Please note: Please turn off the power before wiring.

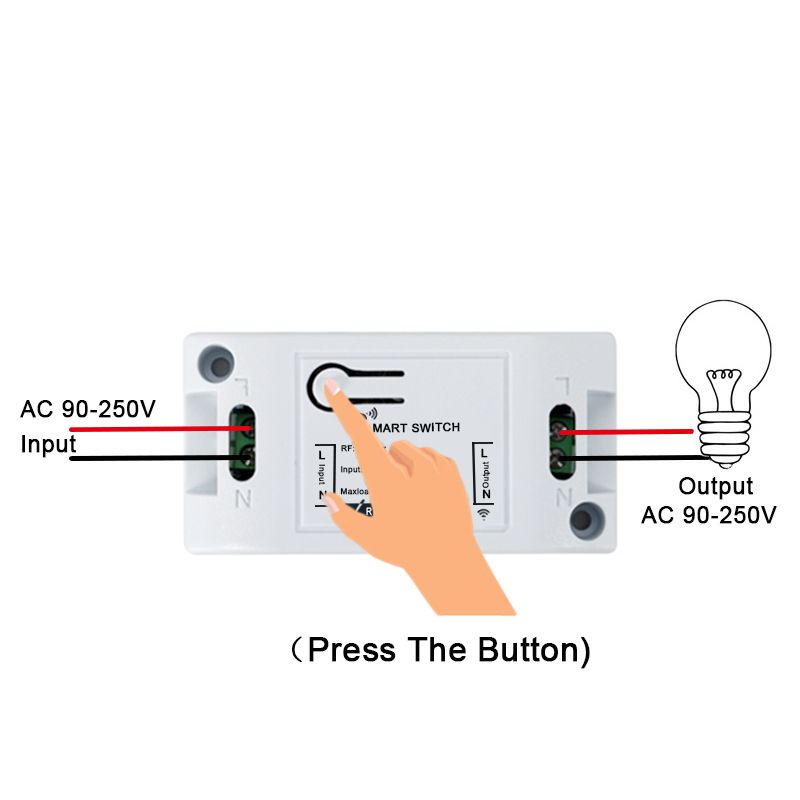

Please connect the wires according to the following diagram

Operation Introduction:

About Working Mode:

Learning The Code (momentary):

Press the learning key once, the LED on the Receiver will flash once.

When the LED switches on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off.

Indicates that they are successfully paired.

Learning The Code (Toggle):

Press the learning key twice, the LED on the receiver will flash twice.

When the LED switch on, press any button on the remote control, the LED on the Receiver will flash 3 times and switches off.

Indicates that they are successfully paired.

Learning The Code (Latching):

Notes: Latching mode require 2 different buttons, the first one for "ON", the second one for "OFF".

For example: button A = ON, button B = OFF.

Push the learning key on the receiver 3 times, initiate latching mode setting.

Wait for a moment, the LED indicator on the receiver will flash briefly and switches off.

Push the remote button A, LED flashes 5 times.

Push the remote button B. LED flashes 5 times.

3 seconds later, the LED indicator will switch on again, indicates that the remote control and the receiver are successfully paired.

A = ON, B = OFF.

Receiver Code Resetting/Clearing:

Push the learning button on the receivers 8 times, the codes will be cleared. After clearing the code, all the remote controls need to be re-paired in order to control the receiver again. Re

Recommended switch, please click HERE.

Package included:

1 x Remote control (not included the switch)

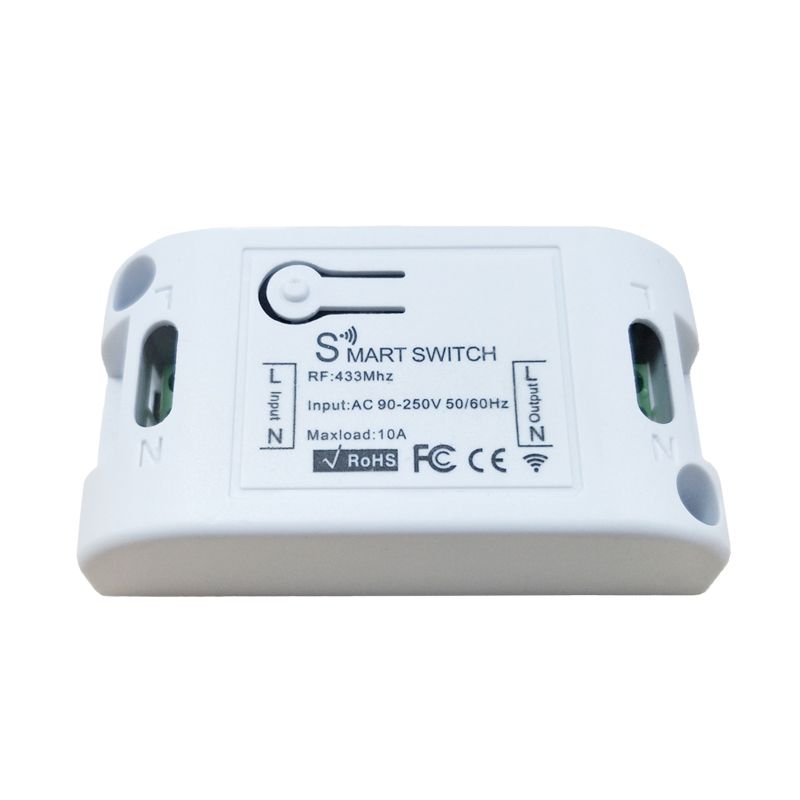

Details Pictures:
