Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32

Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
Without Touch Screen Version TTP223 Touch Button Programmable Wearable Environmental Interaction ESP32
$50.99
Ex Tax: $50.99
  • Stock: In Stock
  • Model: EB0042611
  • SKU: EB0042611

Feature:


Hardware Specifications

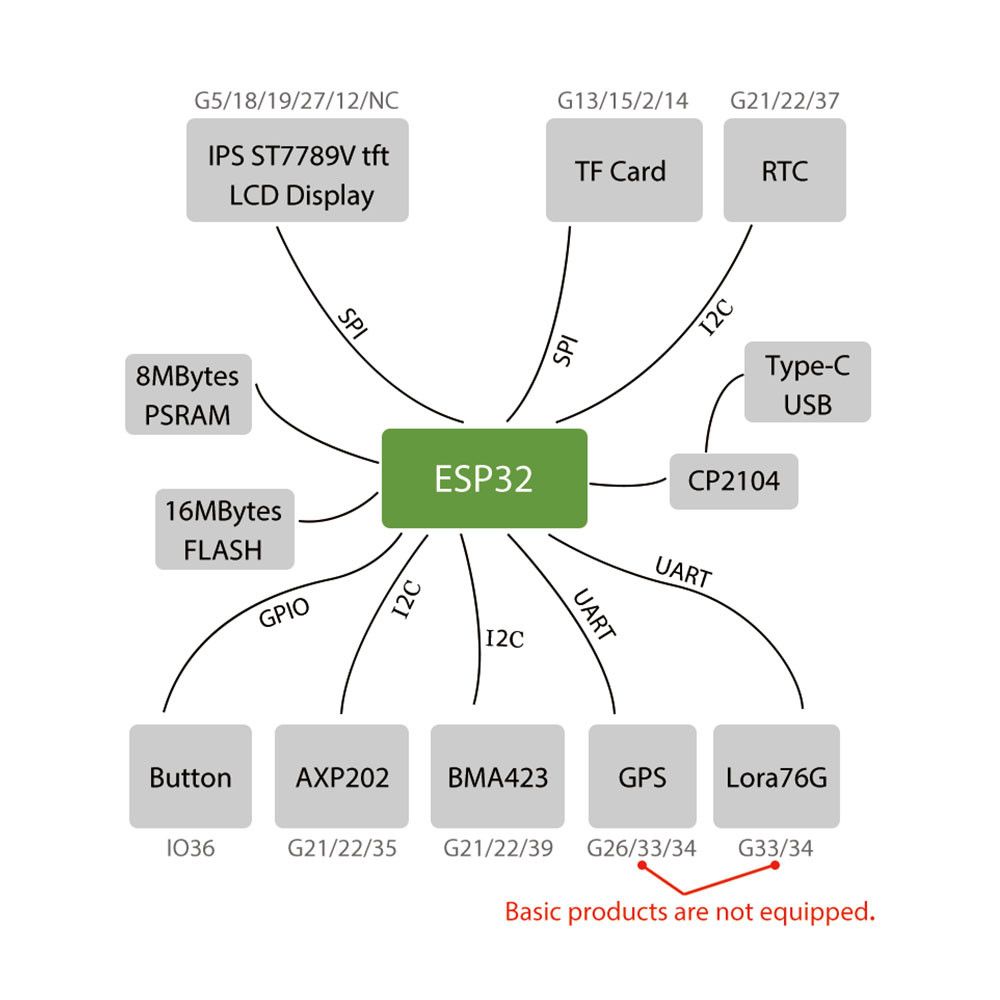

Chipset ESP32, dual-core MCU, PMU power management
FLASH QSPI flash 16MB
SRAM 520 kB SRAM / PSRAM 8MB
Button power key, IO36
Extended function Reference enhanced version and sensor kit
USB to TTL CP2104
Modular interface UART,SPI,SDIO,I2C,LED PWM, PWM,I2S,IRGPIO,capacitor touch sensor,ADC,DACLNA
On-board clock 40MHz crystal oscillator
Working voltage 27V-3.6V
Working current about 70 mA
Sleep current about 1mA
Working temperature range  -40°C ~+85°C
Size&Weight 46.47*43*20.4mm, 43.19g
Display 1.54 inch LCD screen

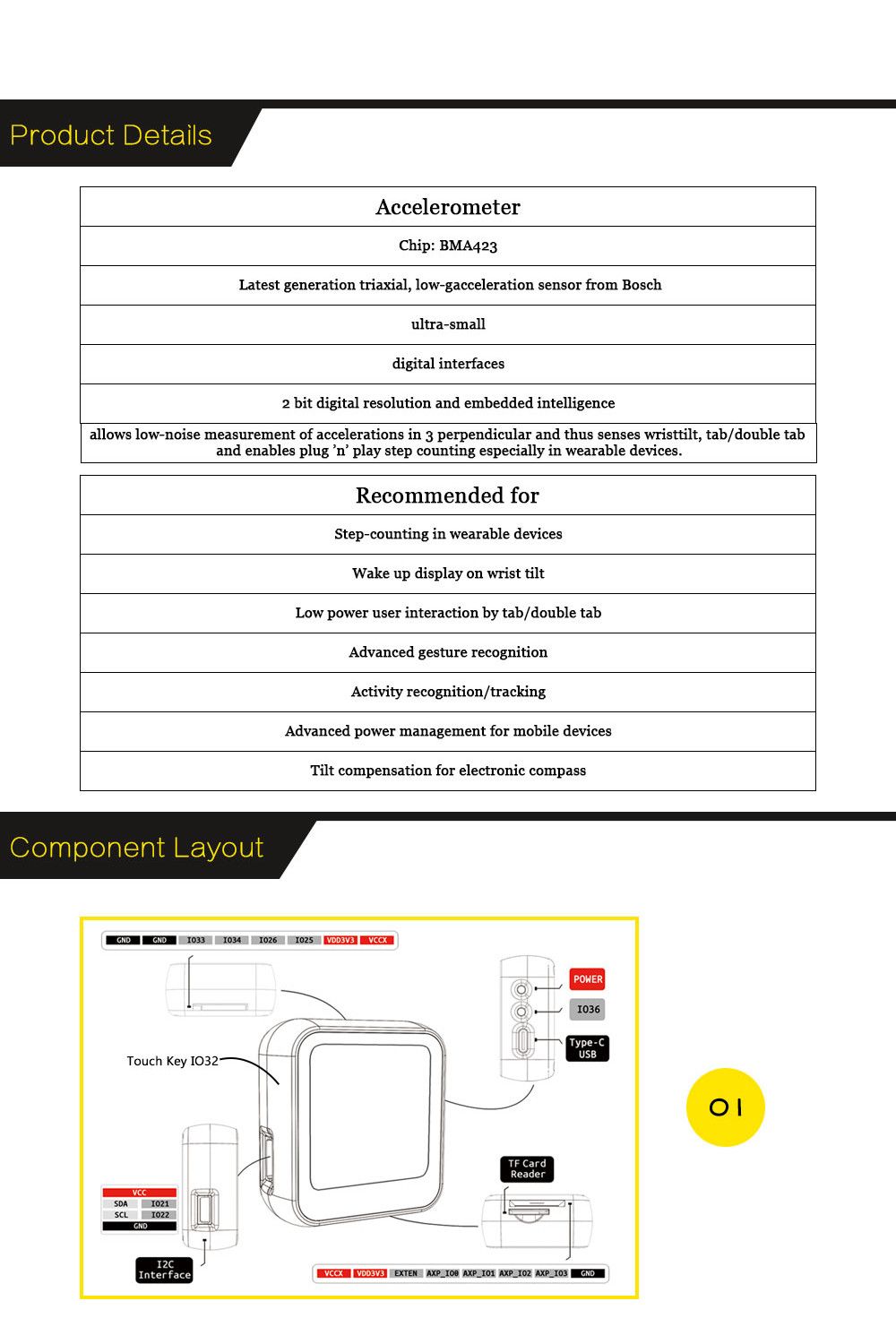

Sensor BMA423 three-axis accelerometer, built-in step counting algorith-m, activity recognition / tracking, advanced gesture recognition.
RTC clock PCF8563
Power Supply Specifications
Power Supply USB 5V/1A
Charging current Programmable adjustment
Battery 3.7V lithium battety (JST:  2pin 1.25mm)
Wi-Fi Description
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 chip)
Protocol 802.11 b/g/n(802.11n, speed up to 150Mbps)A-MPDU and A-MSDU polymerization, support 0.4uS Prrotection interval
Frequency range 2.4GHz-2.5GHz(2400M-2483.5M)
Transmit Power 22dBm
Communication distance 300m
Bluetooth Description
Protocol meet bluetooth V4.2 BR/EDR and BLE standard
Radio frequency with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency
Software specification Description
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA (Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4,IPv6,SSL TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction setcloud serverandroid/IOS app
OS FreeRTOS

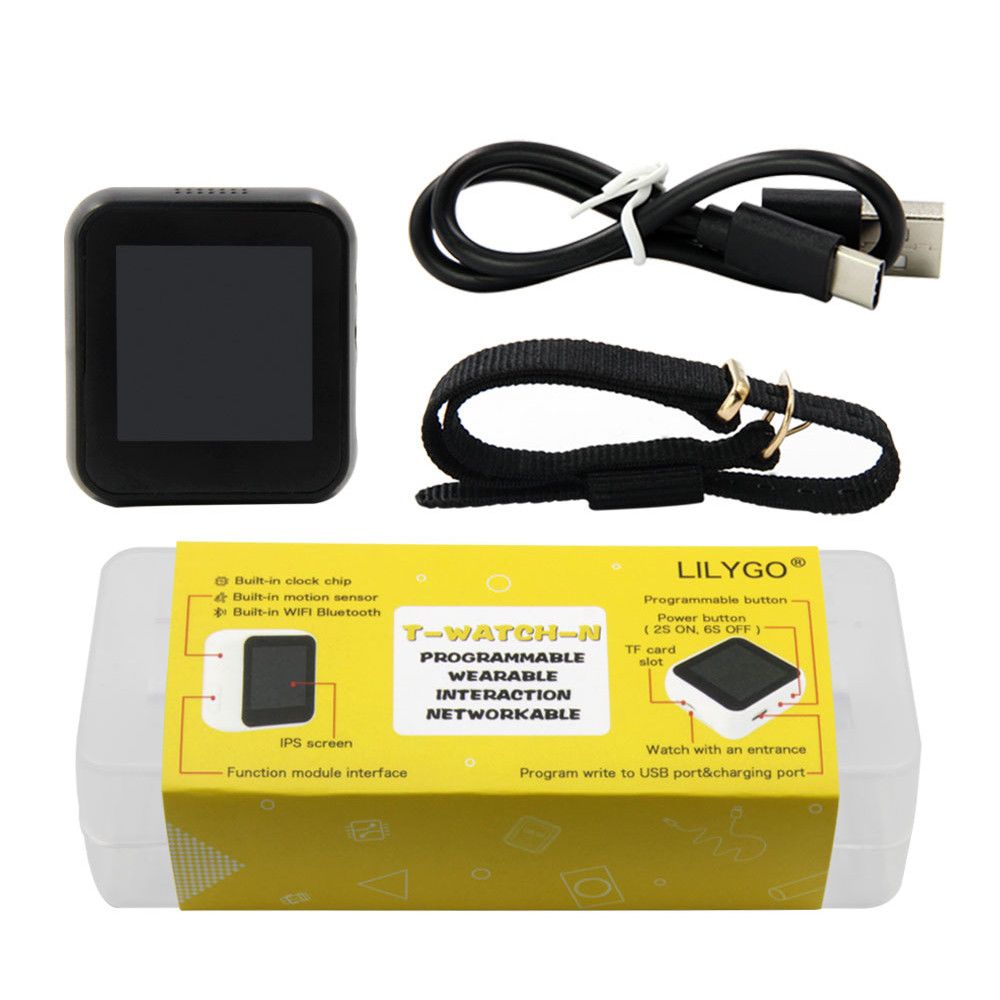

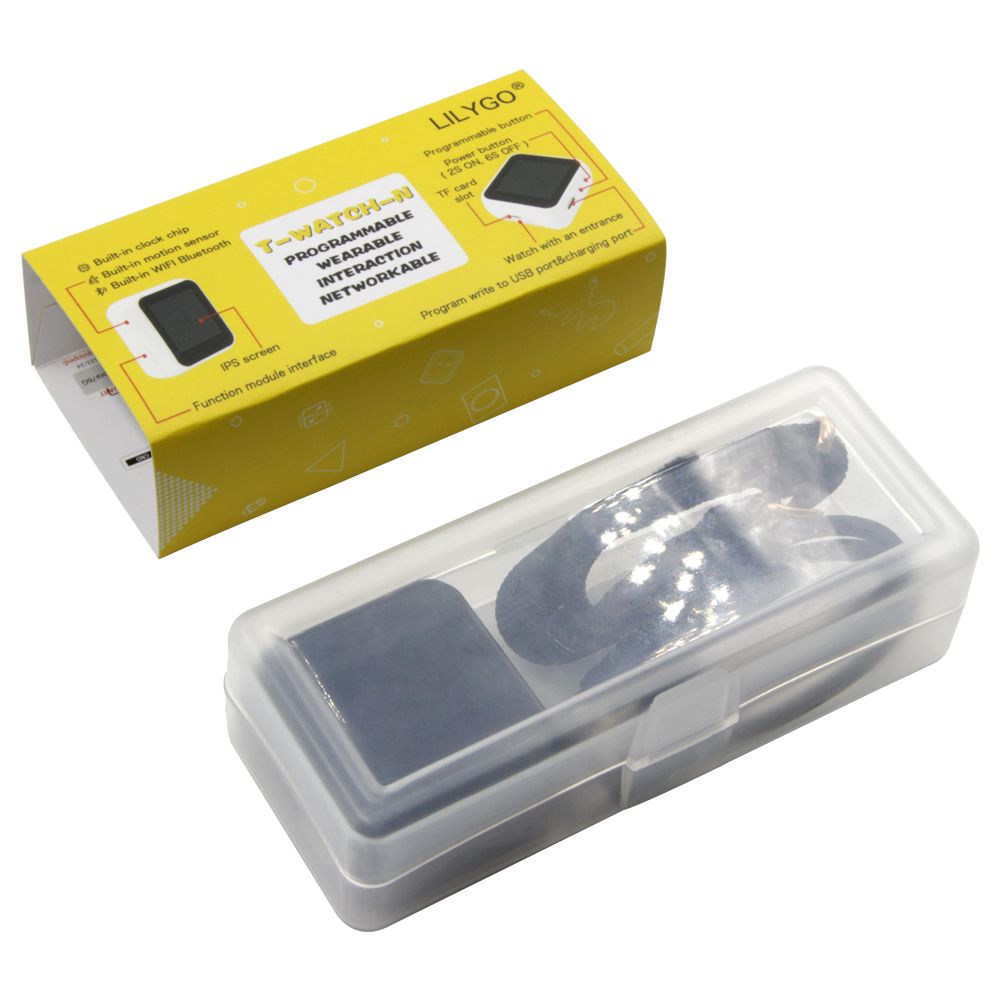

Package includes:


1 x T-watch-N

1 x Black strap(25.5cm)

1 x Data cable

1 x Box
