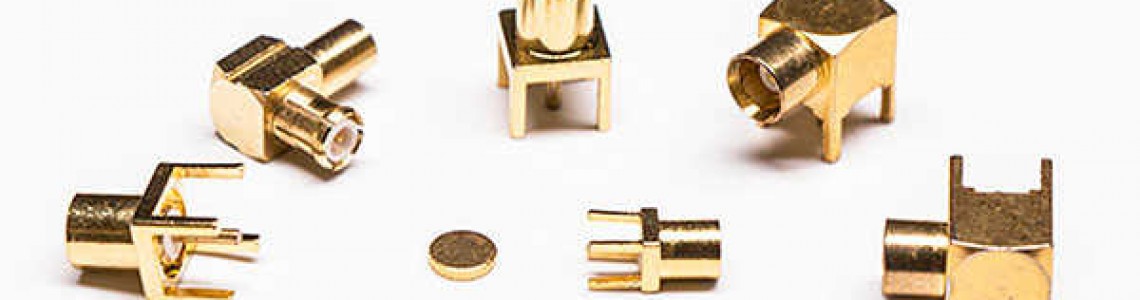

Now the market size of mcx connectors is growing at an average annual rate of 15%. What is the size of the MCX connector?MCX Connectors?are RF coaxial connectors with a Snap-On coupling mechanism that operate from DC to 6 GHz. These connectors are standardized according to IEC 61169-36 and CECC 22220 standards. They are compatible with SMB connectors, however, have 30% smaller body size in comparison to SMB connectors.?MCX connectors?are ideal for applications such as mobile and fixed telecommunications, GPS, Automotive, Handheld devices, and Data Telemetry.MCX connectors use a snap-on interface and usually have a 50Ωimpedance?(some are 75(Ω) . They offer broadband capability from?DC?to 6?GHz.[2]?The contact surfaces are gold-plated.


　　The outer diameter of the plug is approx 3.6?mm or 0.140 inch.

　　MCX and the smaller?MMCX connector?are frequently used to connect external antennas to?GPS receivers. They are also common on USB?DVB-T?tuners for computers and laptops, to connect an external antenna to the tuner.

　　The MCX connector is also being used on at least some of the new generation of mostly inexpensive software-defined?oscilloscopes?and/or?signal generators?such as the?DS212. This is a low frequency application, at most a few MHz bandwidth, so the electrical performance characteristics are relatively unimportant, however the small size would appear to be an important feature.


　　1, the impact of product structure on the quotation MCX connector wholesale is generally the company procurement, for product understanding, slightly poor, the product structure also has an impact on product quotation. MCX connector is a pushin connection structure, small size?It is a convenient and fast RF coaxial connector with characteristic impedance of 50Ω and 75Ω.?However, the appearance of the structure, the difficulty for manufacturers, such as elbows, heterosexual head.

　　2, the performance of the wholesale quotation has a large impact on the VSWR and insertion loss, mechanical parameters and other performance, different VSWR price difference is different, relatively speaking, the communication field is higher than the performance requirements of other fields in the application.

　　3, the impact of environmental requirements on the quotation Corrosion resistance, temperature tolerance, etc., RenhotecIC can accept different environmental requirements, ?Of course, the requirements for different environments are naturally different.


　　The difference in materials affects the quotation of materials directly affects the quotation of MCX connector wholesale. The higher the material requirements, the higher the raw material cost of the manufacturer, the better the material and the direct product performance.

　　The above points can be used as a reference for the wholesale purchase of MCX connectors. RenhotecIC has been focusing on RF connection, and its products are used in communications, radio frequency identification, automotive, medical, aviation, data storage, network signal transmission, military and other fields.?If you still want to know some specific information about MCX connector wholesale, you can contact us to purchase small customer service, ready to answer your questions!


　　For more information about the MCX connector and product information, you can enter the MCX product channel of RenhotecIC for detailed MCX product specifications and drawings. , and other attributes. RenhotecIC MCX connectors are ISO certified and reasonably priced, making them a safe choice for purchasers.
