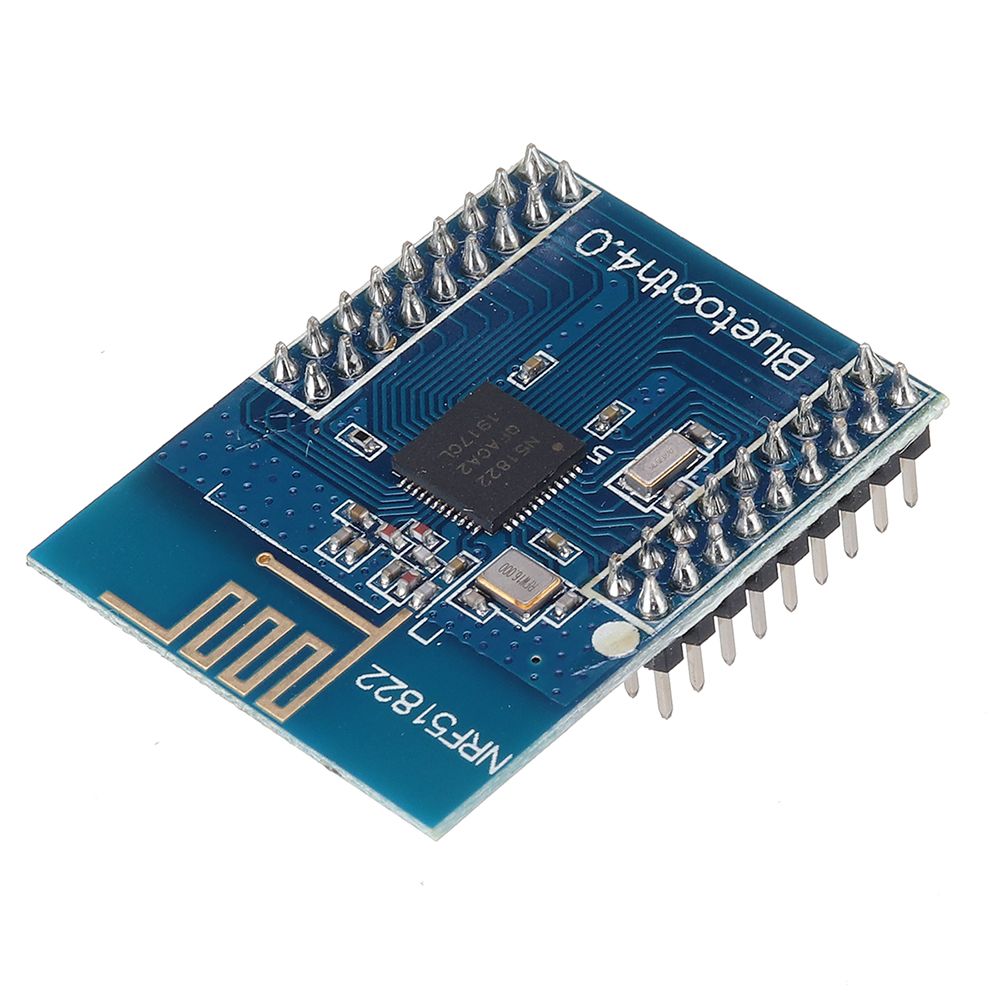

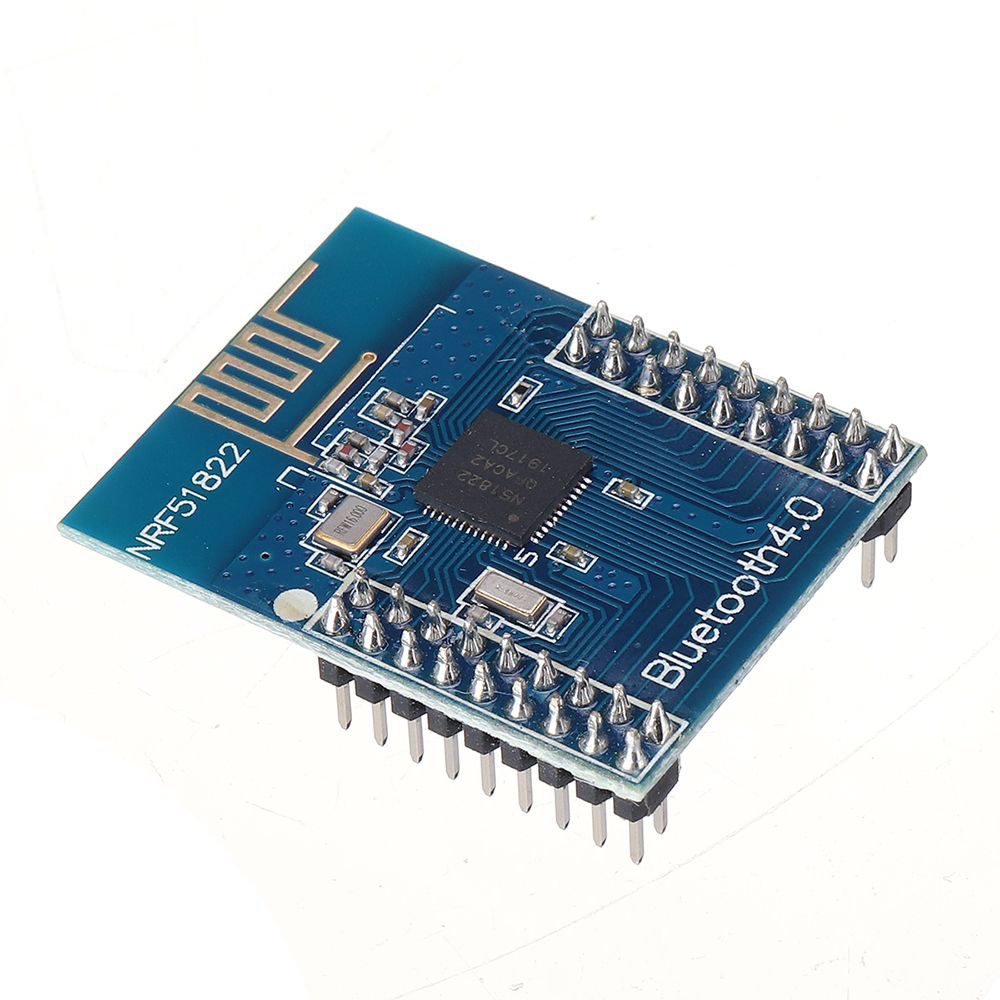

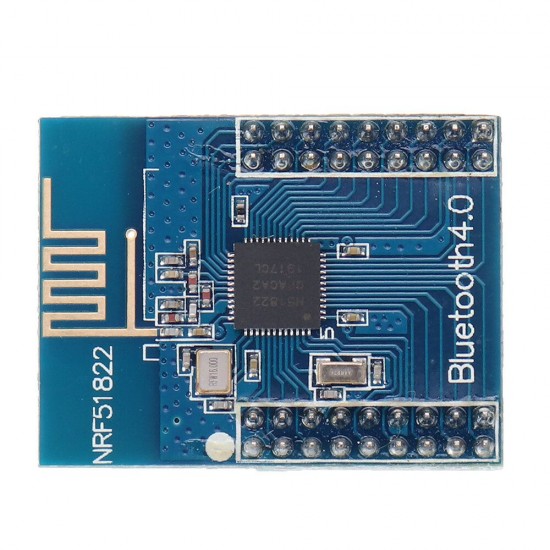

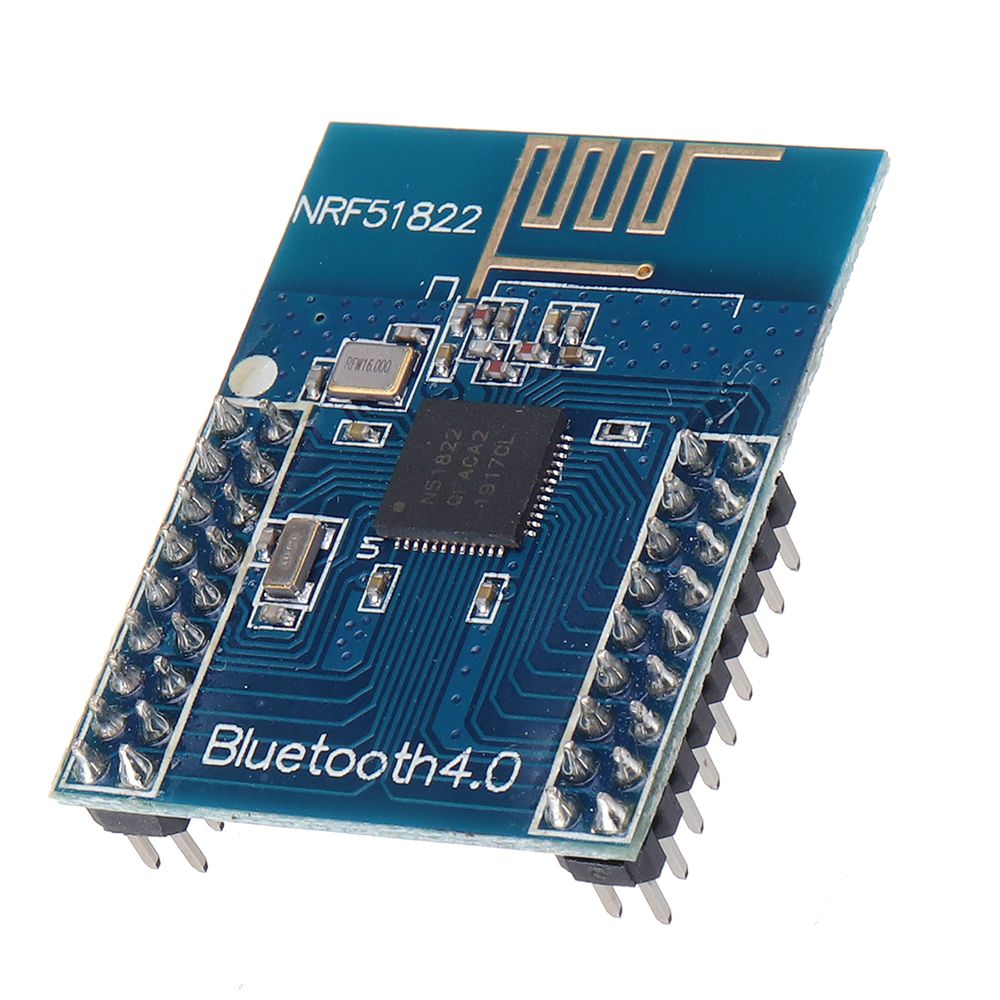

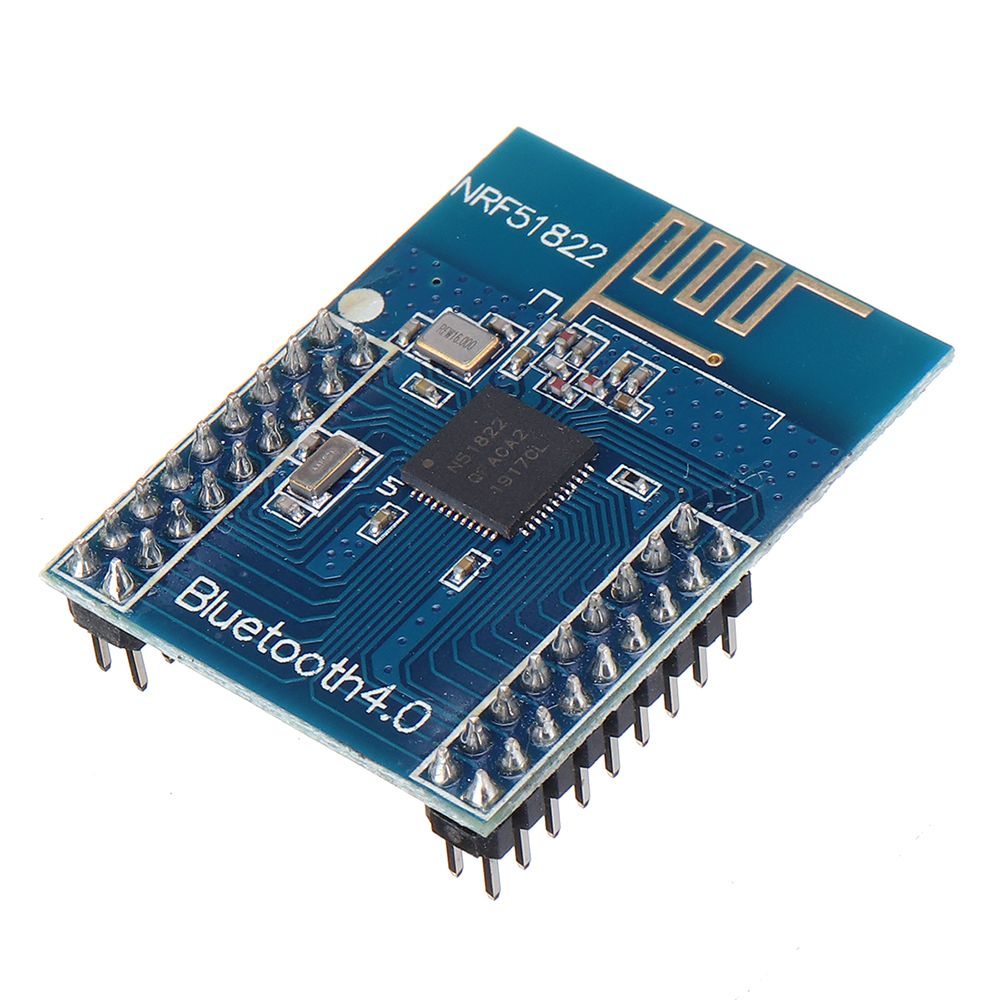

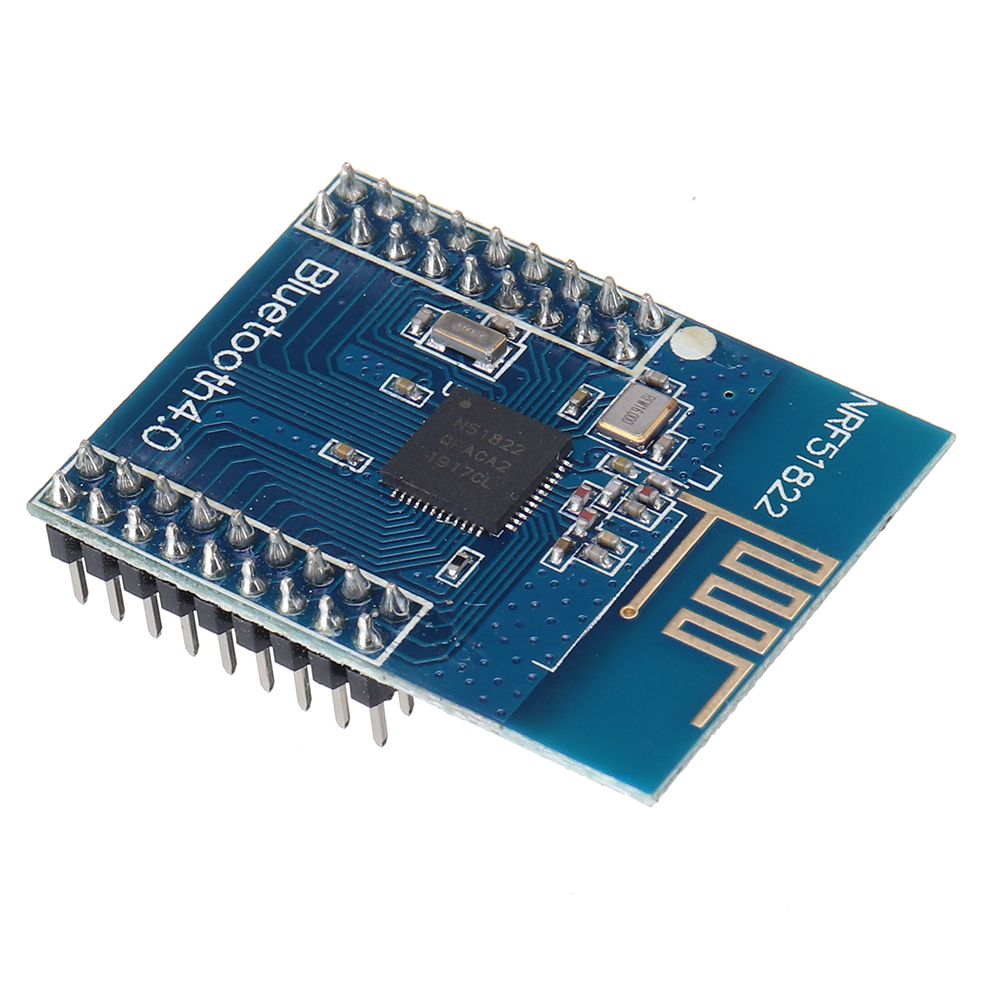

nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna

nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
nRF51822 bluetooth Module BLE4.0 Development Board 2.4G Low Power Consumption Onboard Antenna
$13.99
Ex Tax: $13.99
  • Stock: In Stock
  • Model: EB0045338
  • SKU: EB0045338
  • Build-in Bluetooth: Yes
    Precise details>>
    Parameter:

    Main control chip: nRF51822
    Communication distance: 30m (condition: open area / 1M rate)
    Working frequency band: 2.4GHz
    Working voltage: 2.0V ~ 3.6V
    Temperature range: -40℃ ~ 85℃

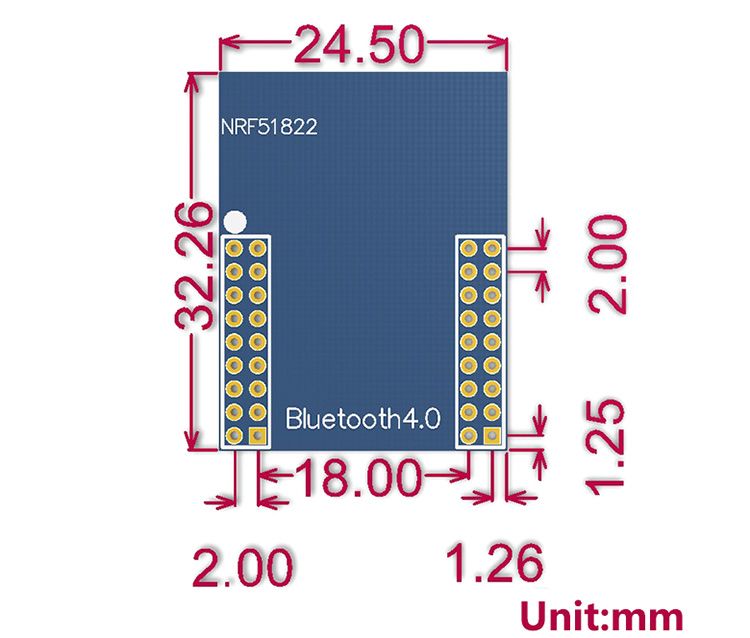

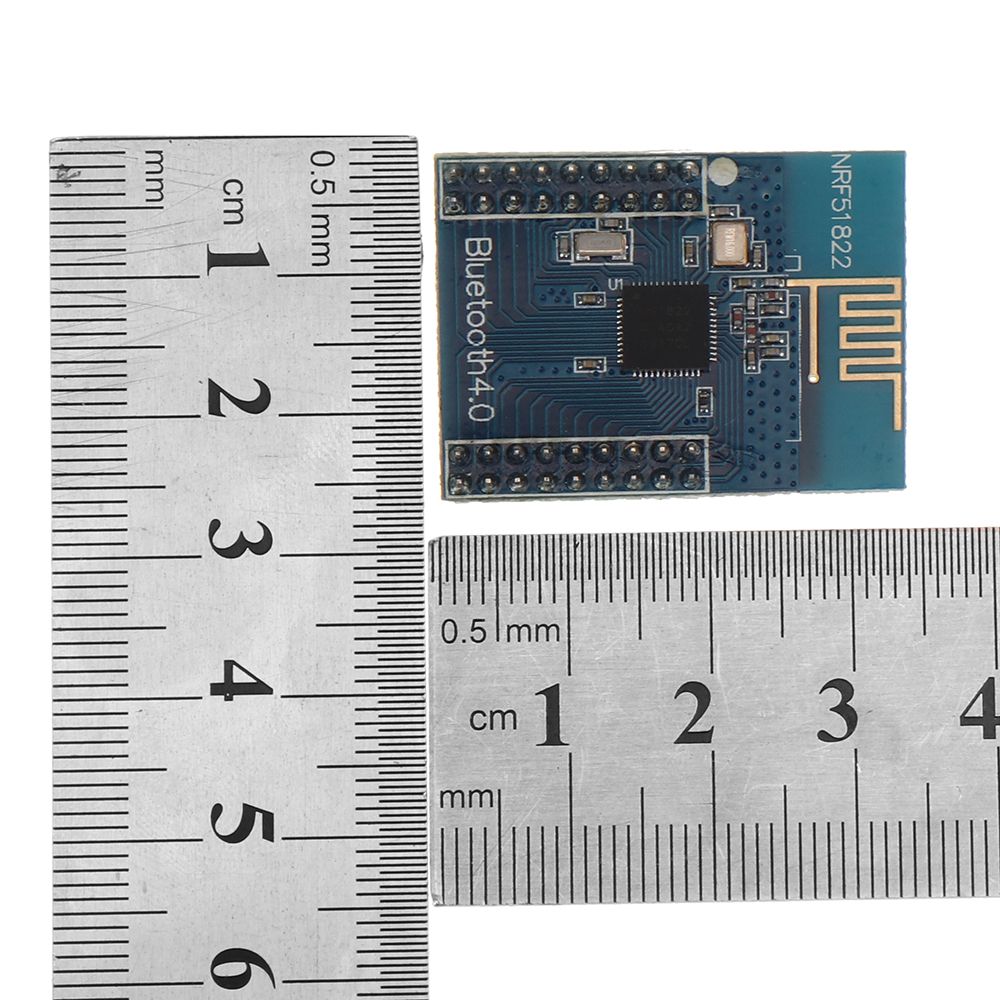

    Dimensions: 24.5mm x 32.26mm (PCB)

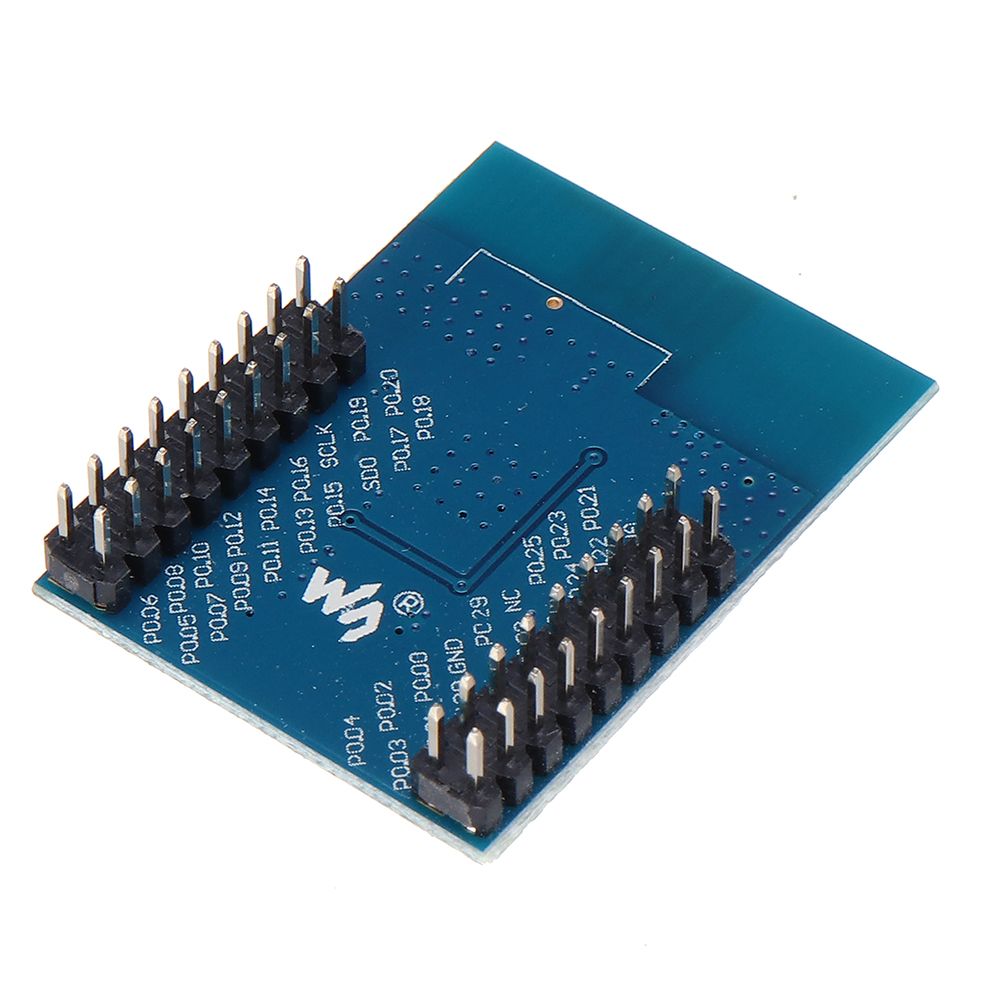

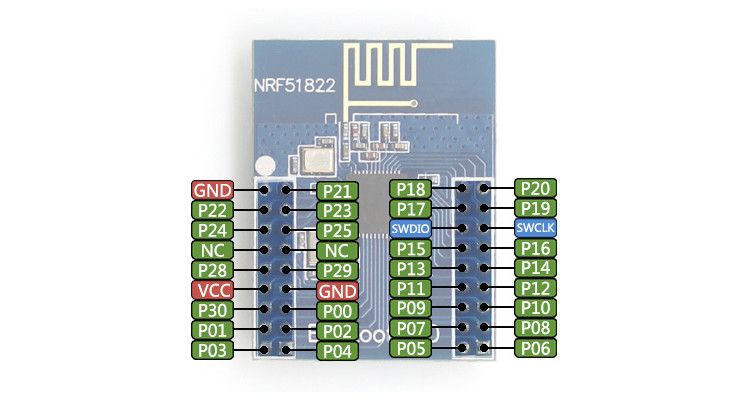

    Interface: All I/O interfaces except P0.26 and P0.27
    Pin spacing: 2.00mm
    Pin spacing on both sides: 18.00mm
    Antenna: Onboard antenna

    Application:

    Wearable device
    Bluetooth Smart Application
    Mobile phone peripherals
    RF smart radio frequency tag
    Smart home appliances
    industrial control
    data collection system

    nRF51822 Introduction:

    nRF51822 is a multi-protocol single-chip solution for ultra-low power wireless applications (ULP wirelesss applications).
    It integrates Nordic's first-class wireless transmitter, and supports Bluetooth(R) low energy and a dedicated 2.4GHz protocol stack.
    The basic situation is:
    2.4GHZ multi-protocol radio frequency
    32-bit ARM Cortex M0 processor
    128-bit AES hardware encryption processor
    256kB flash / 32kB RAM
    Programmable peripheral interface PPI
    Full-featured digital interface: SPI / I2C / UART
    10-bit ADC
    Programmable output power: +4dBm to -20dBm
    Application development and protocol stack are completely independent
    Fully compatible with NRF24L series
    Pin compatible with NRF51xxx series
    Global independent power management
    Operating voltage range (1.8 V ~ 3.6 V)

    Version update instructions:

    Core51822 now uses Rev3 chip, RAM is doubled to 32kB, supports higher version of SDK, all programs are compatible with the original Rev2 chip

    Package includes:

    1 x nRF51822 bluetooth Module
