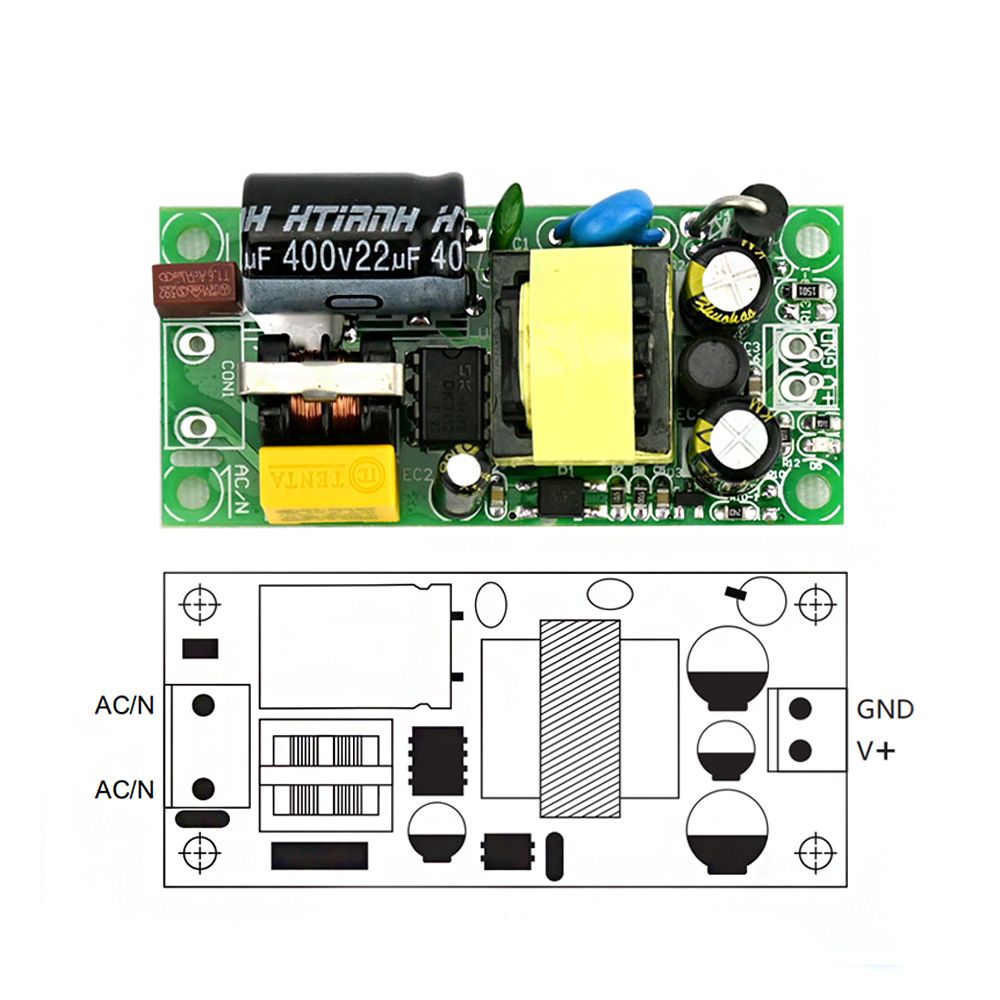

3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply

3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
3Pcs YS-U12S5H AC to DC 5V 2A Switching Power Supply Module AC to DC Converter 10W Regulated Power Supply
$14.99
Ex Tax: $14.99
  • Stock: In Stock
  • Model: EB0044877
  • SKU: EB0044877

Features:

-Universal voltage input: AC100-265V AC
-With overload, short circuit, over temperature protection function
-Full load aging test
-Ultra low output ripple

Specifications:

ModelYS-U12S5H
Output characteristicsOutput voltage5V
Rated current2000mA
Current range0-2000mA
Ripple<50mVp-p
Output accuracy±1%
Voltage regulation rate±1%
Load regulation rate±1%
Rated power10W
Adjustable output range/
Setup, rise, hold time300ms、20ms、20ms/220VAC
Input characteristicsInput voltage rangeAC100-264V
Input current< 0.2A
Frequency range47Hz-63Hz
Effectiveness>83.5%
Start impact circuitCOLD START<30A/230VAC
Leakage current<2mA/220VAC
Protection characteristicsOver power protection150-170% rated power, automatic recovery after fault removal
Over voltage protectionVH1:>150%
Output short circuit protectionIntermittent power interruption to eliminate short-circuit power recovery
Environmental parametersWorking temperature, humidity-15℃ to +40℃@100%LOAD,+60℃@60%LOAD:20%-90%RH
Storage temperature and humidity-20℃ to +85℃   10%-95%RH
Safety and EMC standardsEMI. Safety standardsMEET GB4943
Withstand voltageI/P-O/P:2KVAV 1min
Insulation resistanceI/P-O/P;500VDV/100M Ohms
OtherDimensions (length x width x height)66.7*30.5*19mm
Weight29.5g(1pcs)

Note:

1. All parameters are measured under the conditions of rated voltage AC220V input, rated load, environment 25℃ and humidity 70%.
2. Accuracy: including setting error, voltage adjustment rate, load adjustment rate
3. Ripple test: Connect the power supply and the load with a 30cm stranded wire, connect 0.1uF and 47uF capacitors in parallel at the load end, and measure with a 20MH oscilloscope at the load end.
4. Voltage regulation rate: under rated load conditions, the input voltage changes from low to high.
5. Load regulation rate: the measured output changes from 0% to 100% load.
6. Each channel can output the maximum current, but the total load cannot exceed the maximum output power.

Package Included:

3 x YS-U12S5H AC to DC 5V 2A Switching Power Supply Module
