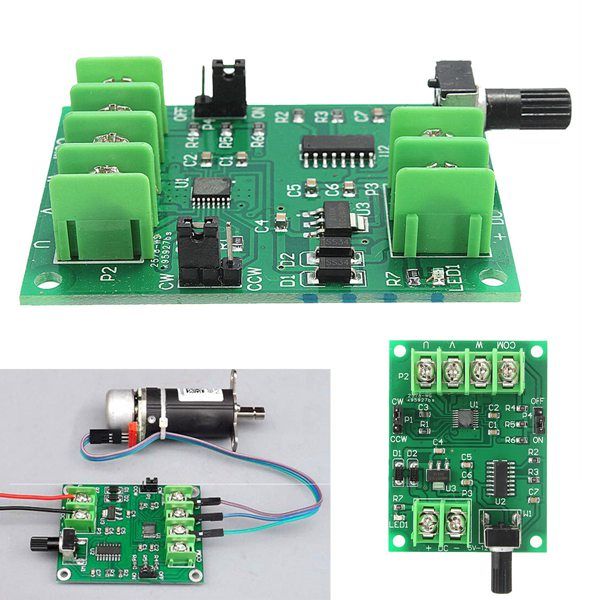

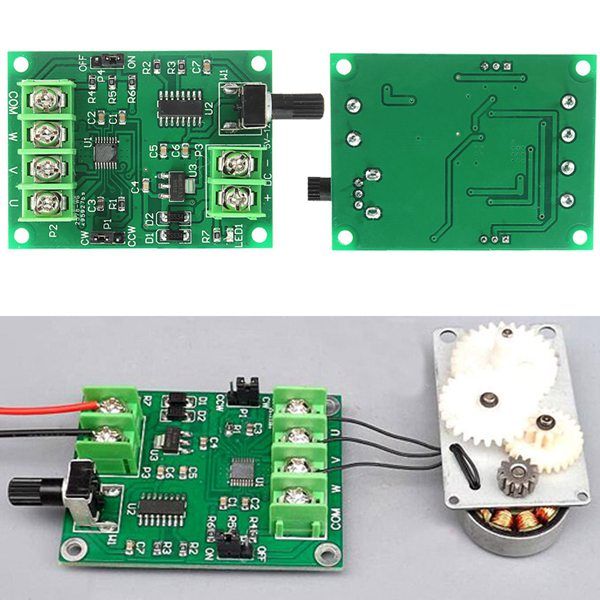

5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire

5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
5pcs 5V-12V DC Brushless Motor Driver Board Controller For Hard Drive Motor 3/4 Wire
$27.00
Ex Tax: $27.00
  • Stock: In Stock
  • Model: EB0048722
  • SKU: EB0048722
>
Features:

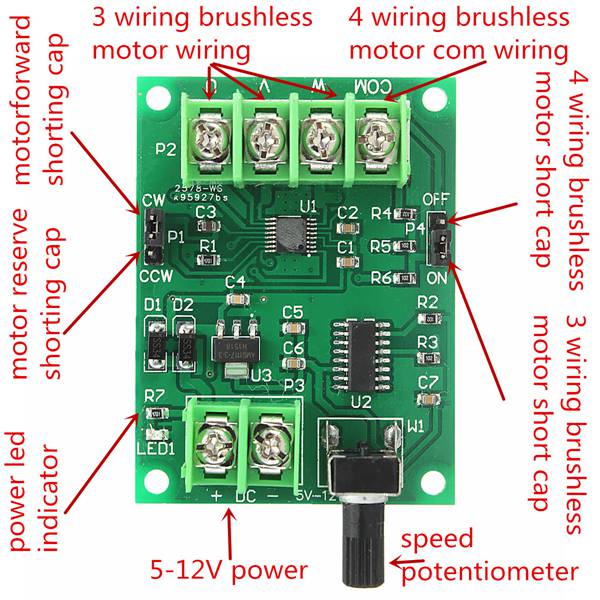

-For driving micro line 3 or 4 lines no Hall brush-less motor such as Hard disk brush-less motor, Drive brush-less motor
-With Reverse Voltage Protection,OCP(over-current protection)

Specifications:

Material: PCB
Color: Green

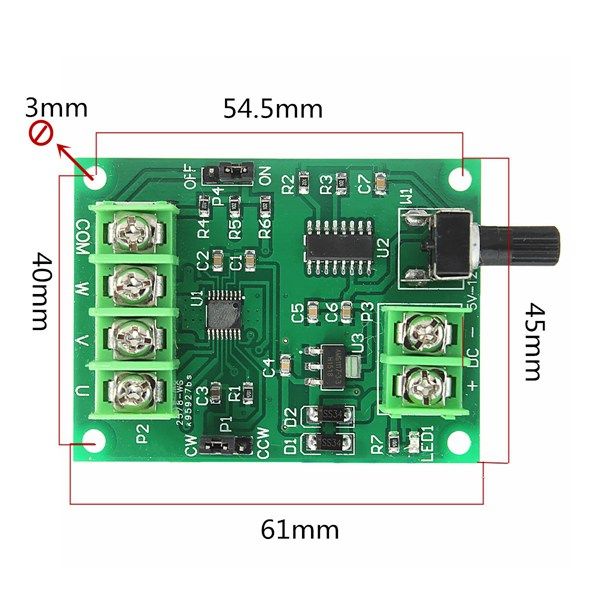

Size: 31*45mm
Diameter of location hole: 3mm
Driving voltage: 5-12V
Working current: ≤1.2A
Speed adjustable range: 0%-100%

Note:

The brush-less motor line must be pressure sturdiness when receiving terminal drive plate , poor contact will burn out the chip phase operation deficiency. If there is a interval between the board terminals and fixed screw, please use coarser line connected to the board.

Package included:

5 x Brushless Motor Driver Board Controller
5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958
5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958

5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958
5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958
5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958
5pcs-5V-12V-DC-Brushless-Motor-Driver-Board-Controller-For-Hard-Drive-Motor-34-Wire-1171958
