7-45X 1080P 36MP HDMI USB Video Camera Simul Focal Double Boom Stand Stereo Microscope For Phone SMD PCB CPU Soldering

Based on 0 reviews. - Write a review

$566.14

Ex Tax: $566.14

Stock: In Stock
Model: EB004930
SKU: EB004930

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

High Quality, High Resolution, Clear Images

36.0MP 1/2.33 Inch big size Japan CMOS sensor

TF Card Video Recorder

Photo Model / Video Model

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.

It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, NegativeSupply USB2.0,HDMI HD video,Two output ports

Specification:

Model: Camera with HDMI USB2.0 two output

Image sensor: 36 megapixel sensor

Pixel size:1.335μm × 1.335μm

Frame rate: 60F/S @ HDMI output

Movie size:4K(25fps) 2K(25fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: Aluminium alloy

Support: CS C-Mount lens

White balance: Auto/manual

Digital Magnification Zoom: 5X digital zoom

Brightness control: Auto/manual

Color: R/G/B adjustable

Freeze: Renhotec

Film and record: Renhotec

Cross cursor: Support multi-color, size adjustable

Transverse and vertical line Support multi-color, 4 pcs of transverse lines/vertical lines, moveable SNR Renhotec

TF card interface: Max 32G

HDMI interface: Standard HDMI output (Type A)

Image resolution: 6912 x 5184 (for TF Card), 1920 x 1080 (for PC USB)

Video resolution: 1920 x1080 @ 60FPS (for HDMI USB)

Video format: MOV ((for TF card)

White Balance: Auto

Light: Auto

Negative: Renhotec

Morror: Left/right,Up/Dow

OSD: English/Chinese

Line: different color,4 horizontal line , 4 vertical line,any positions

7X to 45X Continuous Zoom Magnification Power

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces

Trinocular port for adding photo or video capability

30mm Super Widefield WF10X Eyepieces with 20mm Field of View

High Resolution with Great Flatness and Contrast

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

Accurate Alignment Ensuring a Fatigue-Free Viewing

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance,Interpupillary Distance: 2-1/8" to 3"(54-76mm),

Manufactured under ISO 9001 Quality Control Standard

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

Eyepiece: 30mm super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Range: 6.5:1

Trinocular Port: 23mm photo port

Field of View: 1-1/4" (33mm)

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)

Head Mounting Size: 3" (76mm) diameter

Accessory Mounting Size: 1-7/8" (48mm female thread) diameter Expand the scope of operations,any orientation and angle observed the objectives.

Vertical Pillar: high 380mm,Diameter Ø32mm

Horizontal moving:235mm

Base size: 210x260x40mm

Steel Gears on Focusing Holder.

Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm

144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-160mm

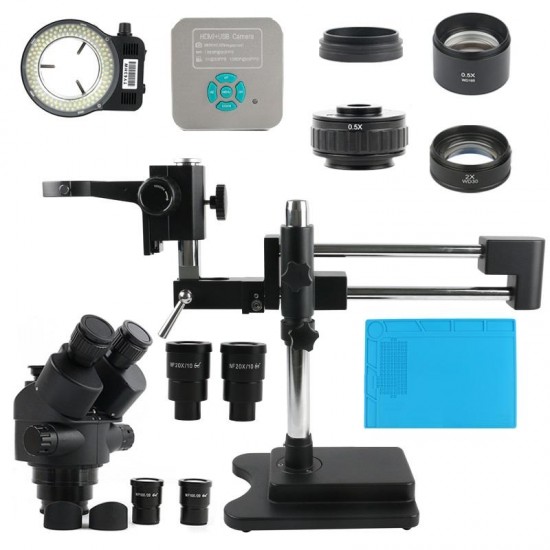

Package Included:

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X20MM Eyepieces

1 x Pair of Super Widefield 20X10MM Eyepieces

1 x 144-LED Ring Light

1 x Double Boom Microscope Bracket

1 x Focusing Rack

1 x C-mount Adapter

1 x Pair of Eye-Guards

1 x Dust Cover

1 x Microscope Camera

1 x Power Adapter

1 x IR remoter

1 x USB Lines

1 x HDMI Lines

1 x Paper Manual

1 x 16G TF Card

1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)

1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

1 x SZMCTV 1/2 Lens

1 x High Temperature Resistant Working Pad

Details Pictures:

7-45X-1080P-36MP-HDMI-USB-Video-Camera-Simul-Focal-Double-Boom-Stand-Stereo-Microscope-For-Phone-SMD-1594470
