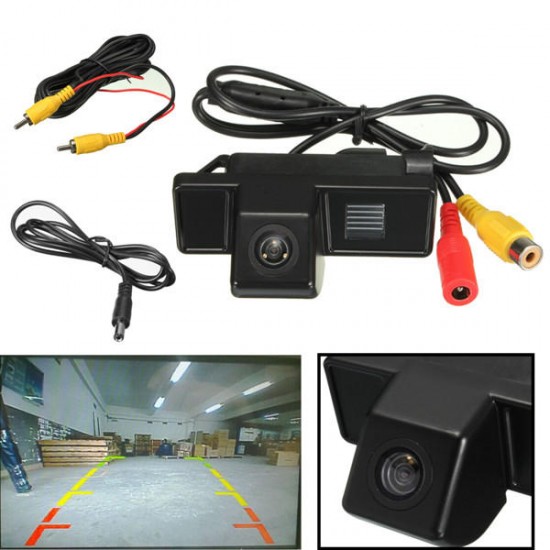

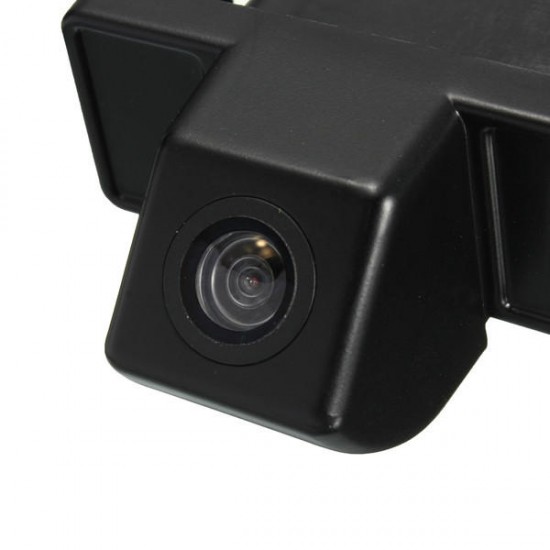

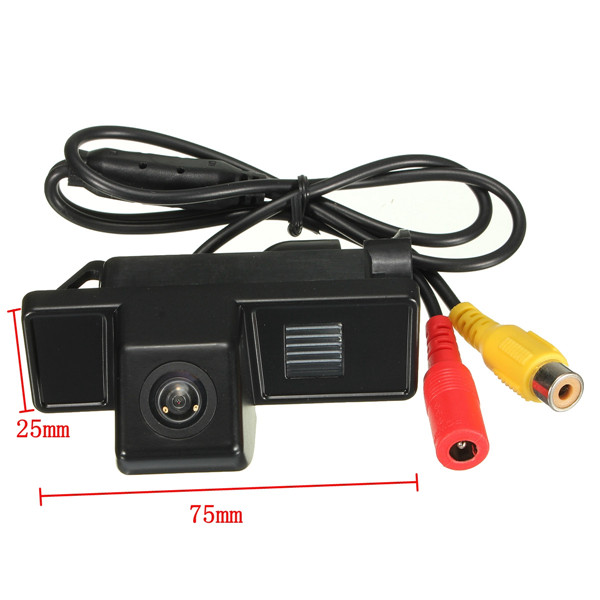

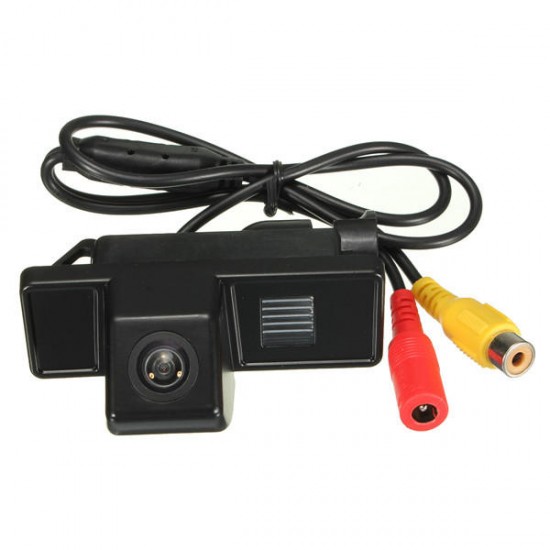

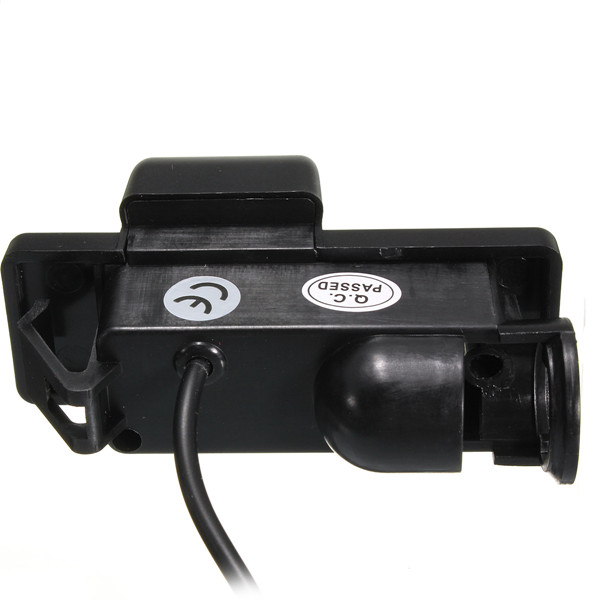

CCD Reverse Camera Rear View Parking Camera For Mercedes Benz Vito Viano
- Stock: In Stock
- Model: EB0032758
- SKU: EB0032758
Specification:
Video : Colour
Effective Pixel: 720X540
Horizontal Sync Frequency: 15625KHZ
Vertical Sync Frequency: PAL 50HZ/NTSC 60HZ
Scanning System: 2:1 Interlace
Sync System: Internal
AGC: Auto
BLC: Auto
White Balance: Auto
Resolution: 520TV Lines
S/N Ratio:More Than 48dB
Current Consumpition: No more 300mA
Power supply: DC12V±10%
Operating Temperature: -20℃-60℃ Rh95% MAX
Storage Temperature: -30℃-60℃ Rh95% MAX
Horizontal Angle: 110°
Lens Angle: 170°
Water-proof: IP671P68
Minimum Illumination: 0.2Lux/F 1.2(OLux with Led)
Fitment:
Mercedes-Benz Vito 2004 Onwards
Mercedes-Benz Viano 2004 Onwards
Fitting Instruction:
1.Take out your stock license plate light at the back of your car.
2. Insert the license plate light into the camera. (If non LED)
3.Connect the power cables of the Camera to your Reverse lights - red wire
to positive and black wire to negative.

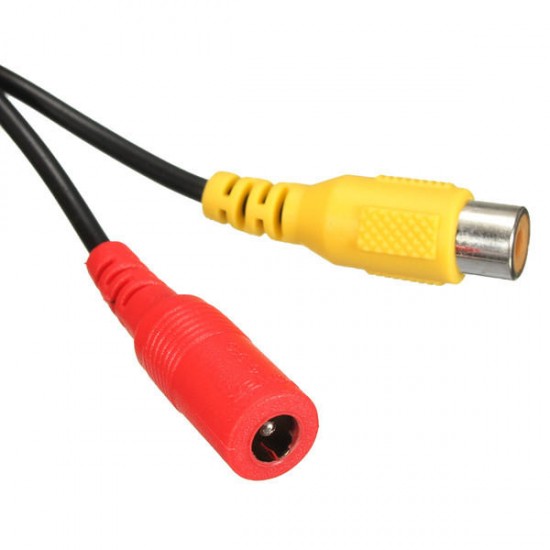

4. Connect the Phono cable of the camera to the extension cord.
5. Connect the extension cord to your Car's Screen / Head Unit.
6. You will see the reverse image automatically when the car is put into reverse
Gear (This Depends on your Head unit or screen).

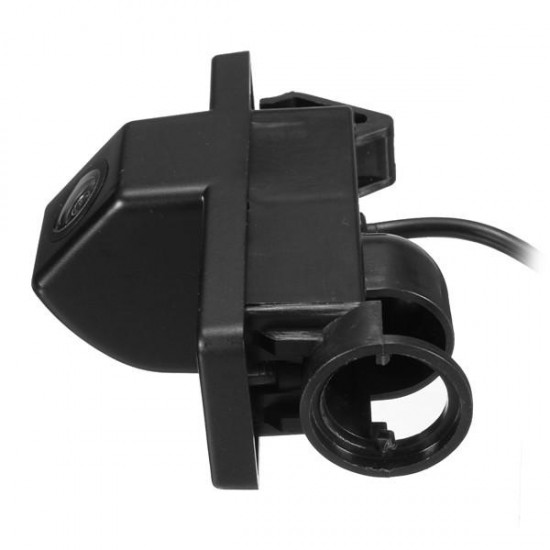

7. Insert the Camera into the license plate light socket.

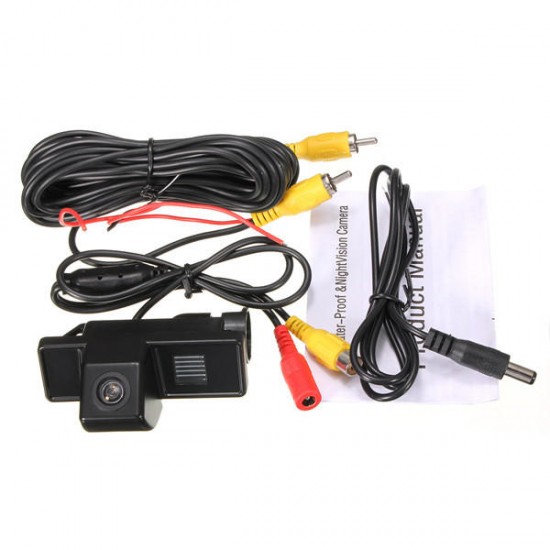

Package Included:
1 X CCD Camera

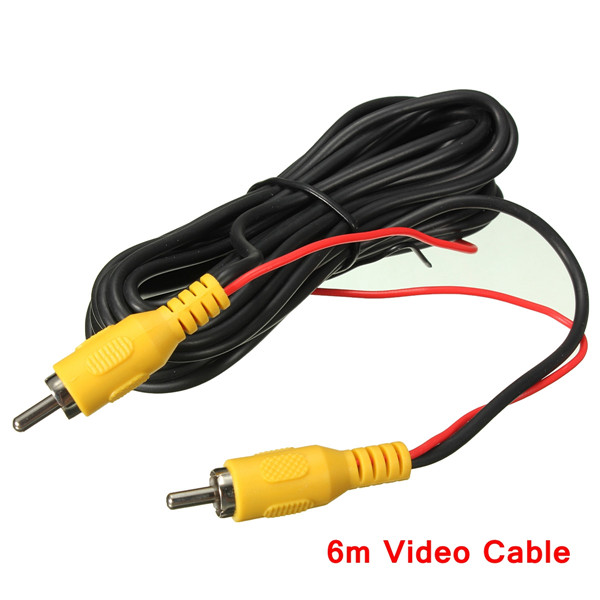

1 X 6m Video Cable

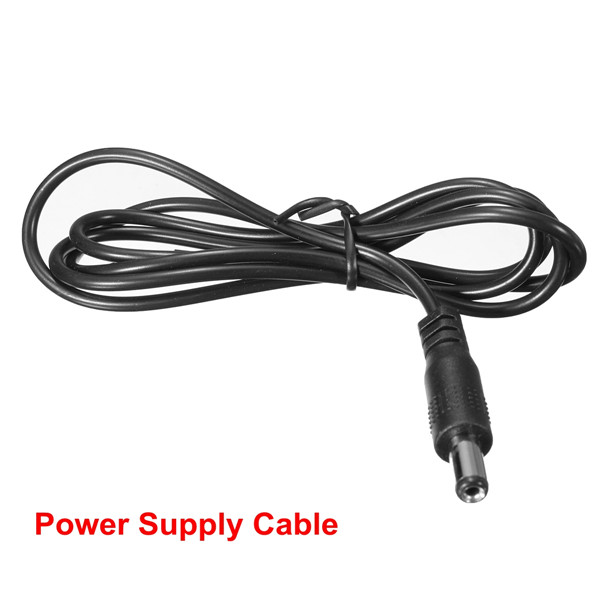

1 X Power Supply Cable
1 X English Instruction
