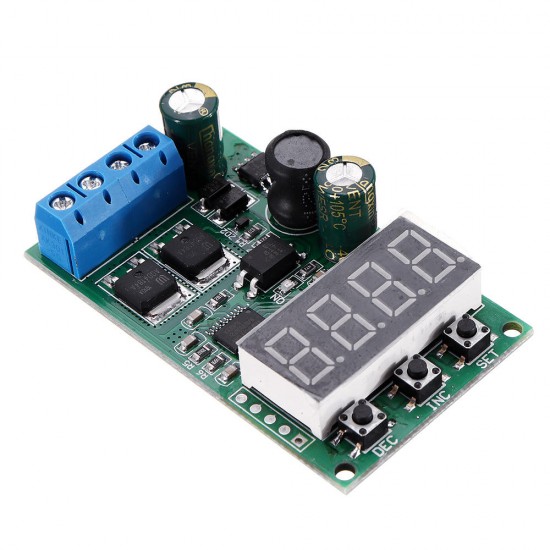

15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01

15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
15A DC 6-30V Lead-acid NiMH LiFePO4 Li-ION Li-PO LiFe Polymer Lithium Battery Discharge Protection Board Module PS9DC01
$11.99
Ex Tax: $11.99
  • Stock: In Stock
  • Model: EB0045824
  • SKU: EB0045824
Features:

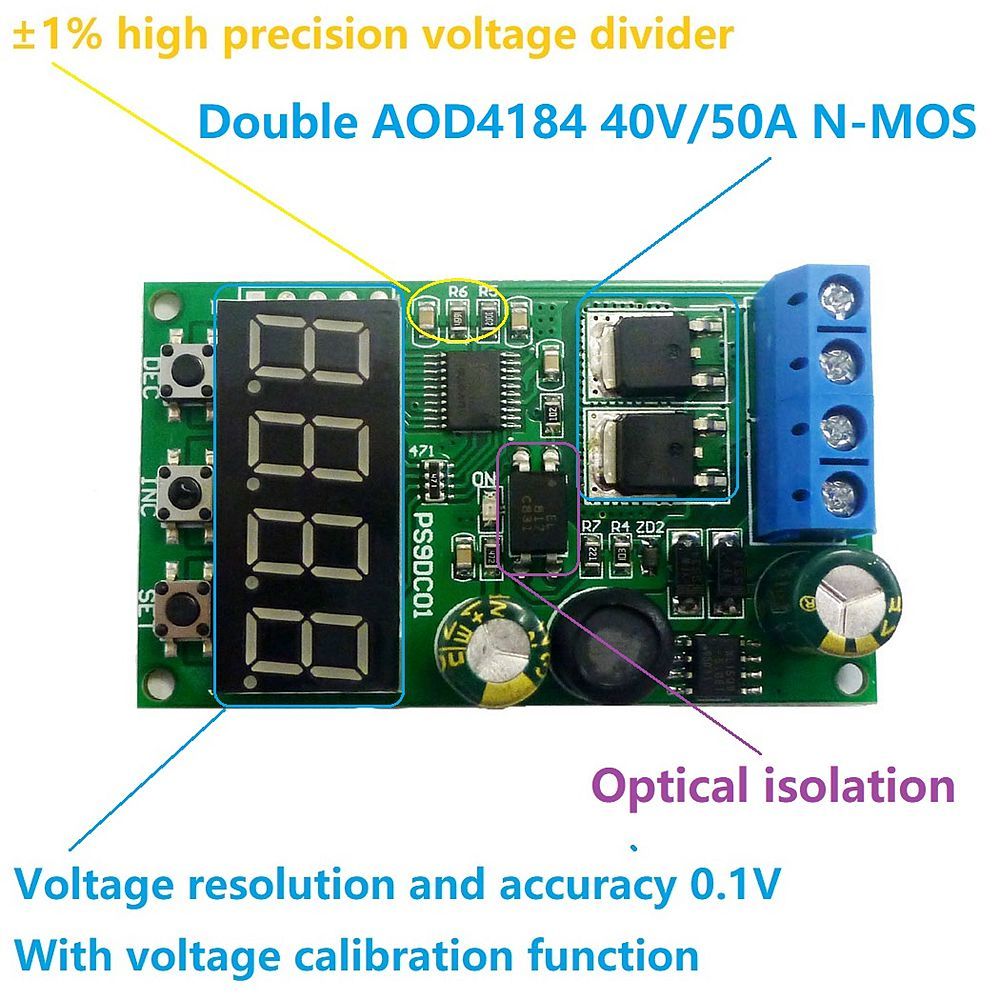

- Photoelectric isolation can effectively protect the circuit board.
- 1% high-precision divider resistors make the measurement voltage more accurate.
- Voltage accuracy and resolution is 0.1V, and with a calibration function.
- Reduce the brightness of the digital display, save energy and protect your eyes.
- Parameter power-down save, to avoid duplicate settings.

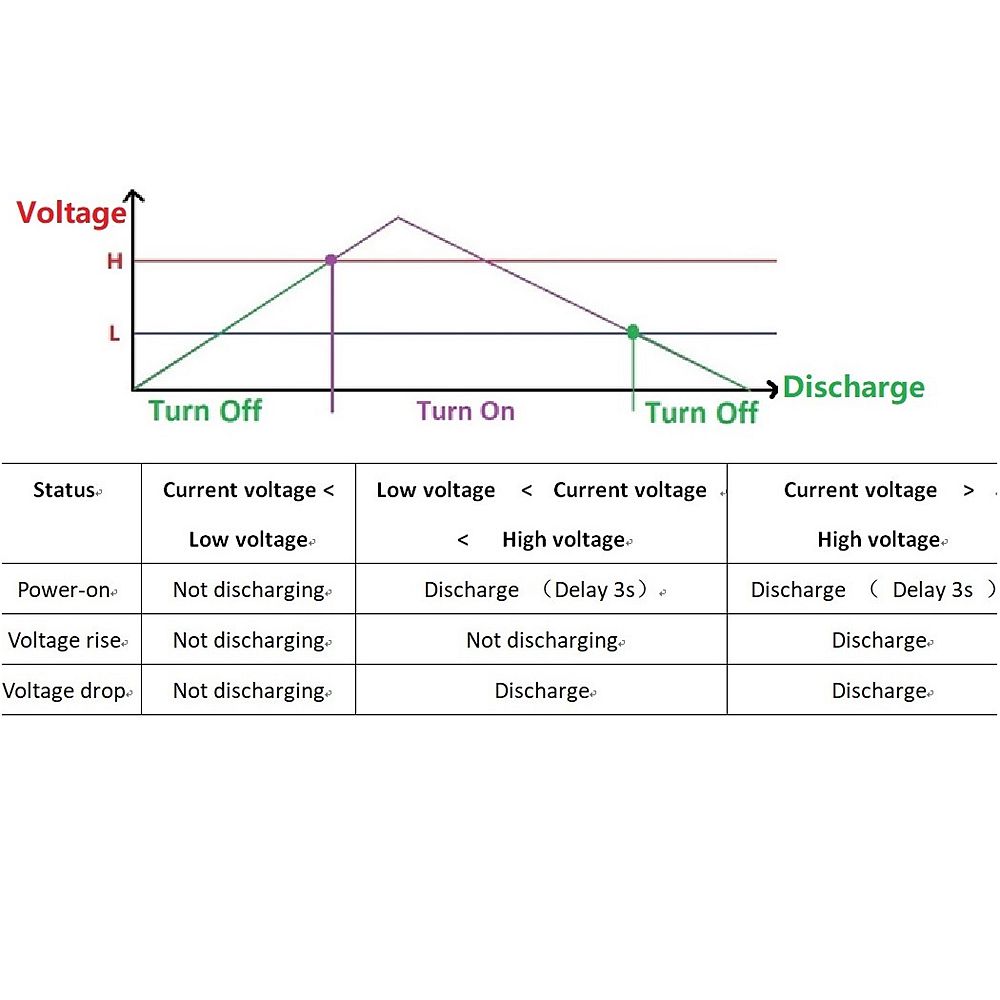

- Set the Start Discharge Voltage(H) and Cutoff Discharge Voltage(L) to the lowest (<6V), which can be used as a voltmeter to measure 6-30V voltage.
- It has Energy-Saving Mode and restore Factory-Settings.

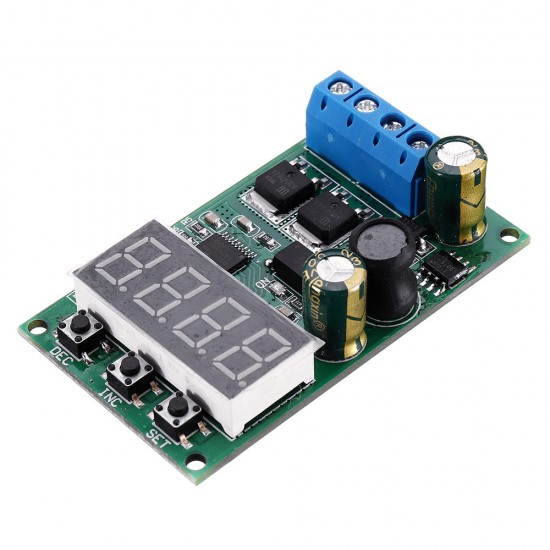

- 3 control buttons, 4 bit digital display, 1 LED charge indicator.

Specifications:

Operating voltage: DC 6-30V.
Operating current (12V):
Standard mode, standby current 7MA; Working current 11MA;
Energy-Saving mode,Standby current 4MA; Working current 7MA.
Mode: Standard-Mode, Energy-Saving Mode, Setup-Mode, Voltage-Calibration, Factory-Settings.

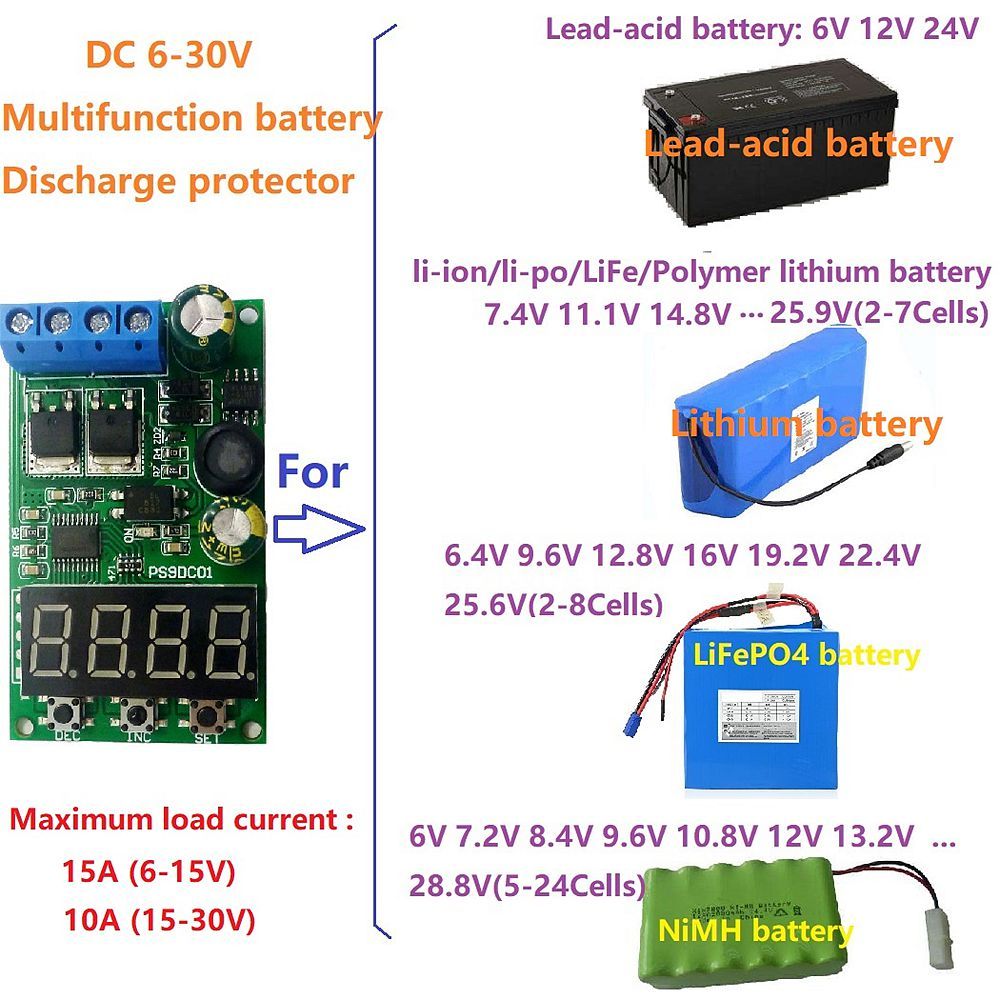

Can protect any 6-30V battery discharge, double N-MOS maximum load current: 15A (6-15V); 10A (15-30V) .
The default Cutoff discharge voltage 11.8V, Start discharge voltage is 12.2V(for 12V lead acid battery).
Size: 60 x 35x 16mm

Applications:

Car battery discharge protection
Solar battery discharge protection
Mobile Loadspeaker
Lead-Acid Battery discharge protection
Electric Bicycle discharge protection
UPS Uninterruptible power supply
Portable Industrial and Medical Equipment
Standalone Battery Uninterruptible power supply
Lead-acid  /Ni-Cd / Ni-MH / Li-ION  /Li-PO /LiFe/PolymerLithium battery

Package Included:

1 x 15A DC 6-30V Battery Discharge Protection Board Module
