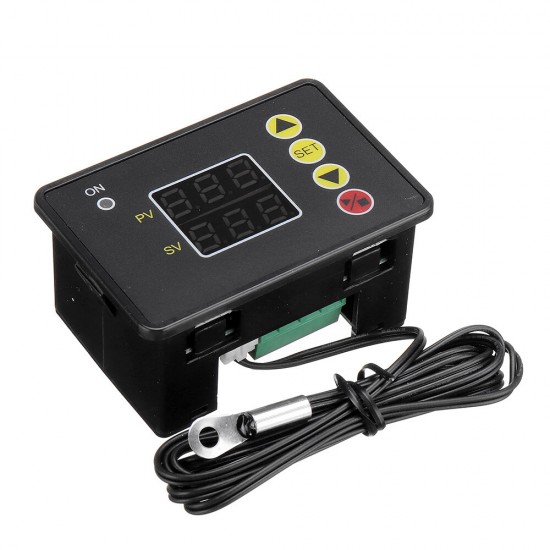

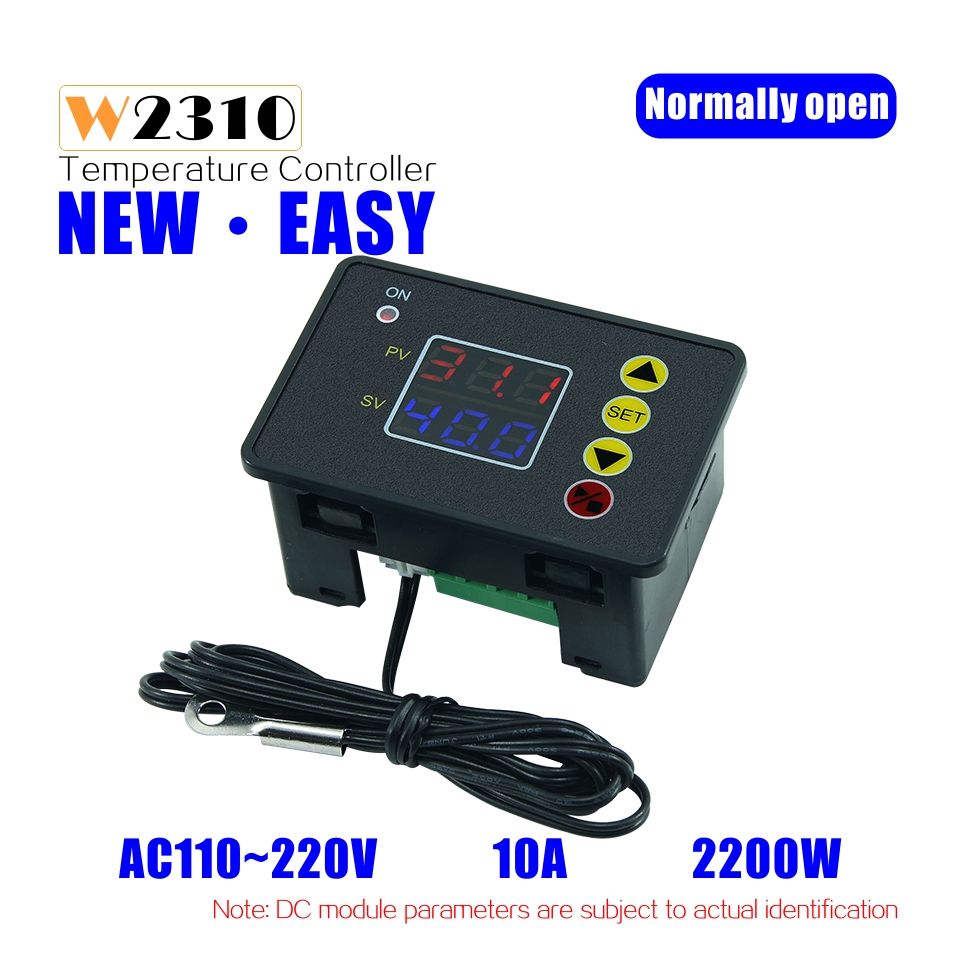

W2310 10A 12V 24V 220VAC Digital LED Temperature Controller for Incubator Thermostat NTC Sensor Microcomputer Thermoregulator

Based on 0 reviews. - Write a review

$9.99

Ex Tax: $9.99

Stock: In Stock
Model: EB0045829
SKU: EB0045829

Available Options

Voltage

110V~220V

DC12V

DC24V

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

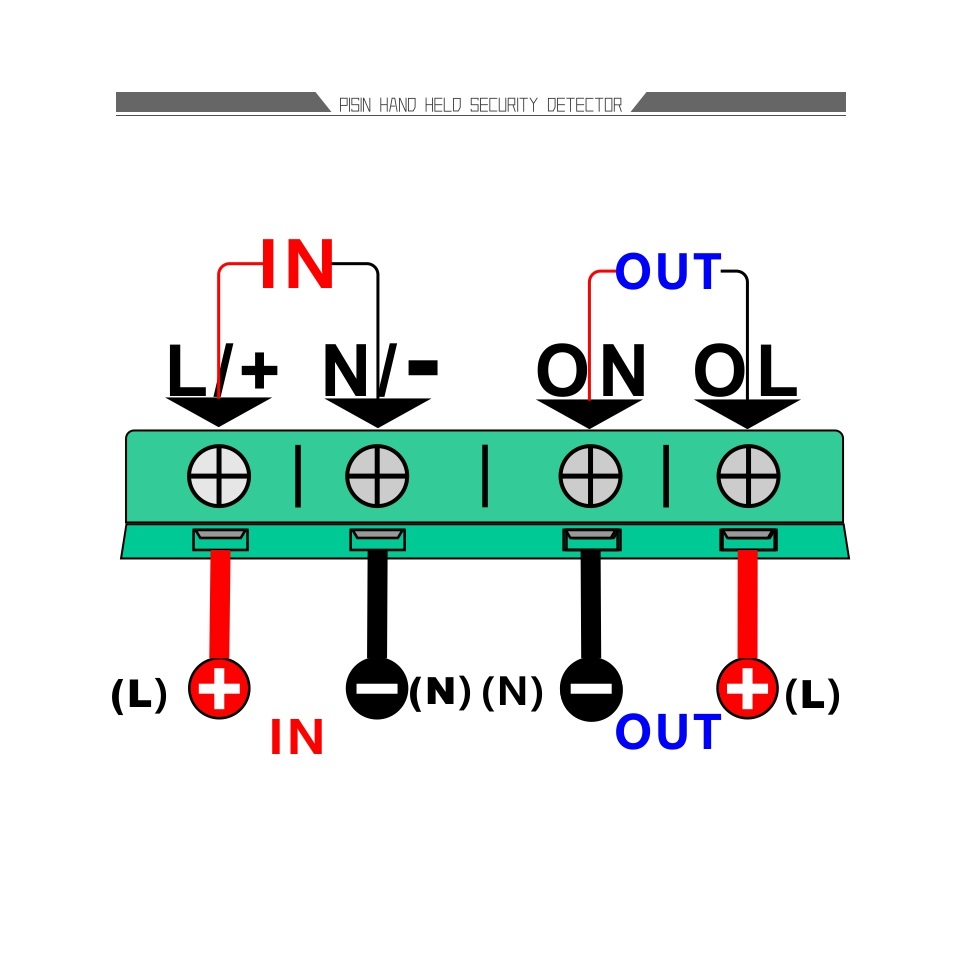

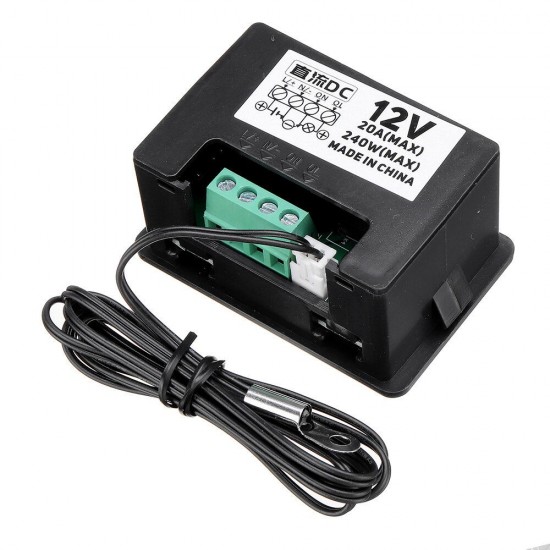

1. Convenient direct output wiring

2. Add buzzer and audible alarm

3. Add pause button to stop urgently

4. Ring waterproof sensor, easy to fix

5. Start and stop setting mode, provincial conversion, which is more convenient

6. Automatically save when power off, run automatically when power on

7. Both Fahrenheit and Fahrenheit can be measured (need to switch mode)

Specification:

Controller type : Normally open temperature controller

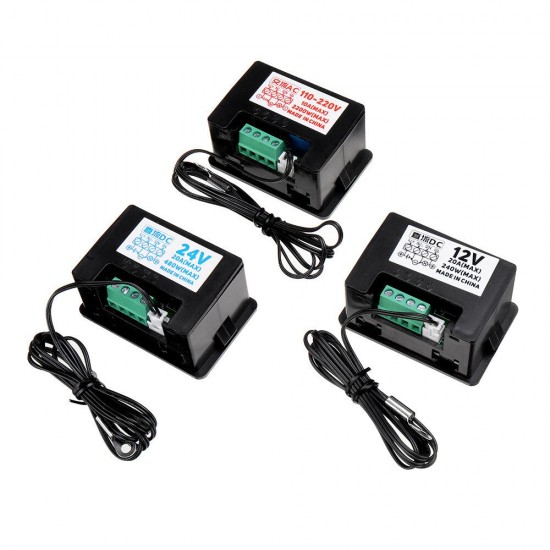

Operating Voltage : DC12V DC24V AC110~220V

Control circuit voltage : DC12V DC24V AC110~220V

Relay carrying power : 240W 480W 10A（max）

Recommended power : ＜Relay carrying power×80%

Relay type : Normally open relay

Power consumption : ＜1W

Relay service life : 100000 Times

sensor : NTC10K 1%

Range : -50℃~120℃（±1%）

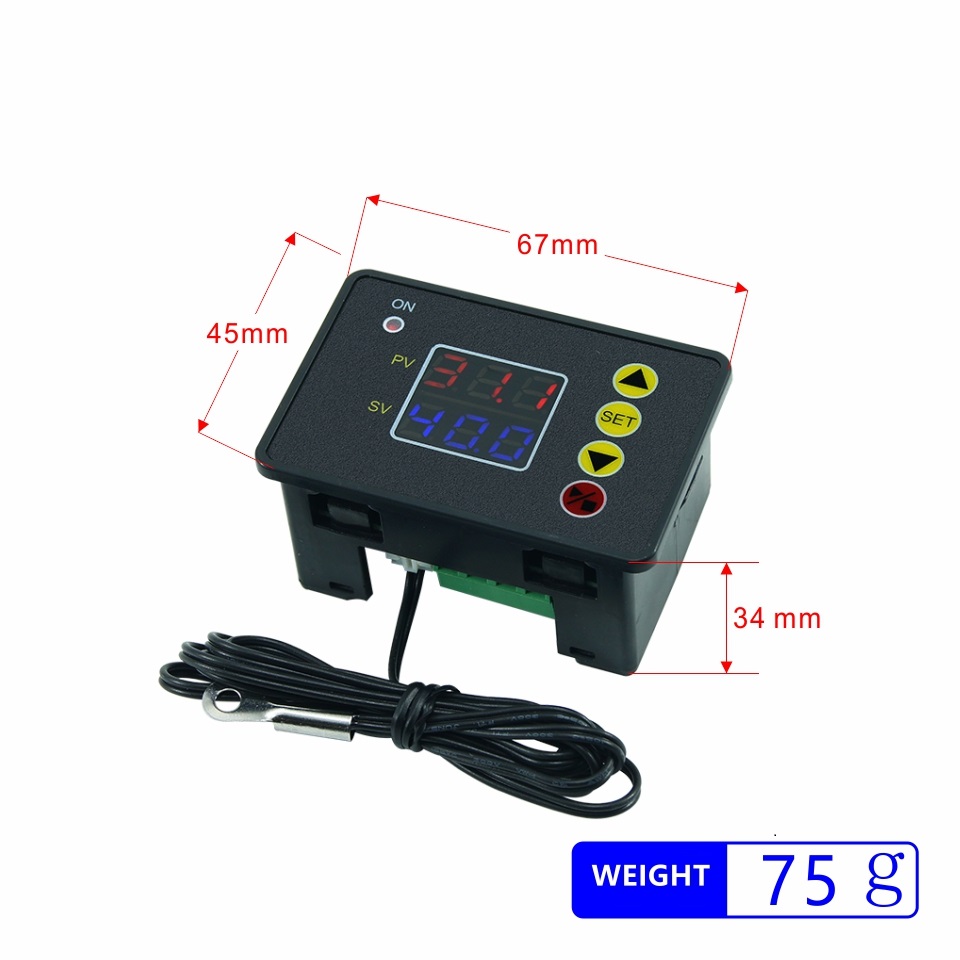

Size : 67mm×45mm×34mm

Fixed way : Embedded Hole 63mm×42mm

Operation demonstration:

1. Application example: Heating method for hatching poultry eggs

2.Incubation conditions: The optimum temperature is 38.6℃, and the allowable temperature is 0.2℃, then the incubation temperature range is 38.4℃-38.8℃

3. Assumptions: It is assumed that the incubation equipment has been connected, but it is found that the measured temperature is 0.5℃ higher than the actual temperature

4. Operation introduction:

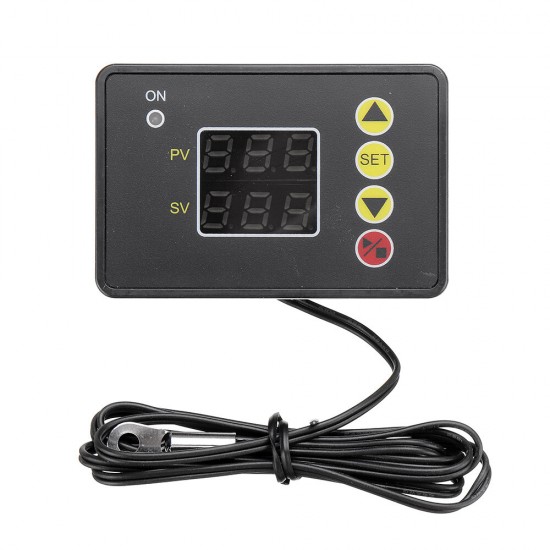

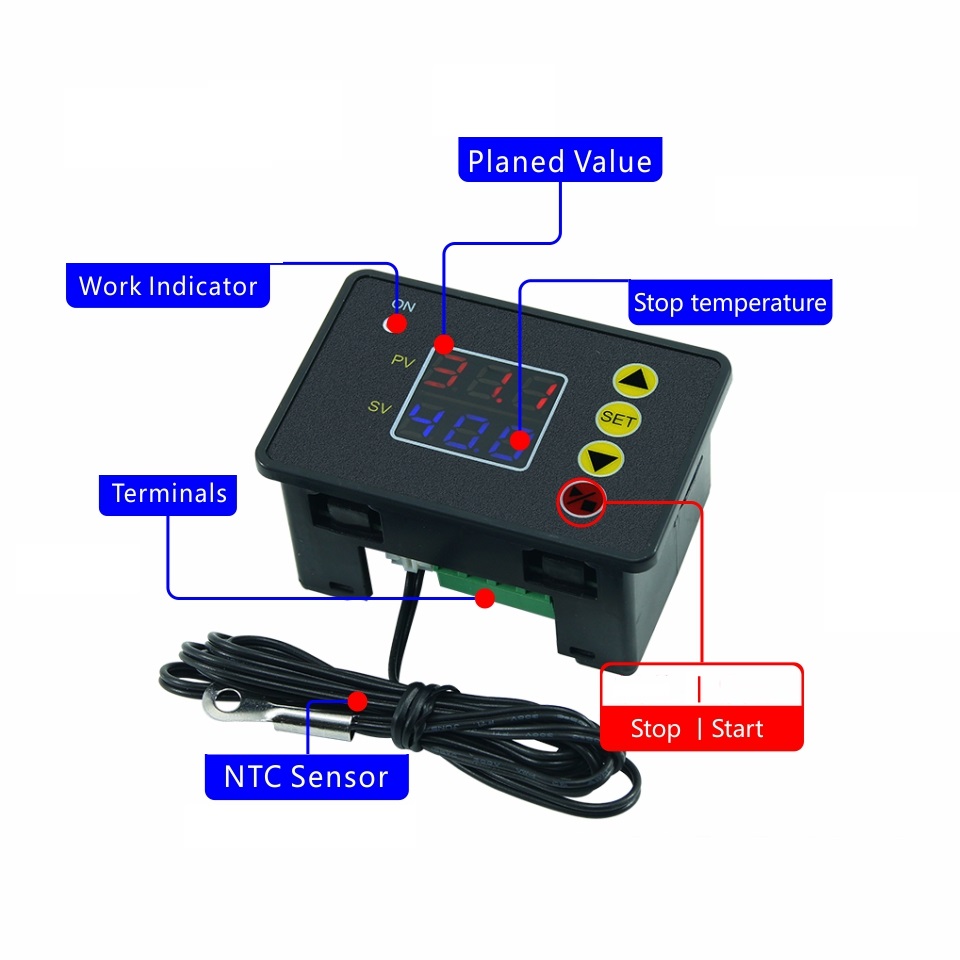

A: Press the SET button (10 seconds) on the conventional interface to enter the setting mode, the red digital tube displays the code, the blue digital tube displays the code parameter value; press SET key to switch the code, press up/down key Modify parameter value

B: Adjust the value of P0 to 38.4 and the value of P1 to 38.8

C: Adjust P4 to -0.5

D: After the code setting is completed, wait for 10 seconds to automatically save, the setting is completed

Note:

All settings are automatically saved when power is turned off, run automatically when power is turned on, and no manual start is required

Press and hold the SET key to power on to recover the factory settings, please refer to the manual for detailed parameters

Package included:

1 x W2310 Normally Open Temperature Controller
