0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V

0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
0.91 inch White OLED Module Expansion Board LCD Screen I2C Interface SSD1306 128x32 3.3V
$9.71
Ex Tax: $9.71
  • Stock: In Stock
  • Model: EB0050479
  • SKU: EB0050479

Overview:

This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.

Features:

0.91inch small form factor
128x32 high resolution
I2C interface, requires only two signal pins

Specifications:

Driver: SSD1306
Interface: I2C
Display color: White
Resolution: 128x32
Viewing angle: >160°
Operating voltage: 3.3V / 5V

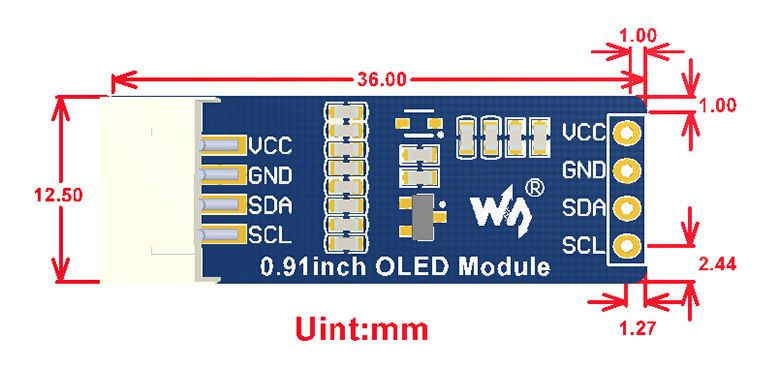

Dimension: 36 x 12.5 (mm)

Interface:

SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
SDA Data input
SCL Clock input

Package includes:

1 x 0.91inch OLED Module

Wavesharereg-091-inch-White-OLED-Module-Expansion-Board-LCD-Screen-I2C-Interface-SSD1306-128x32-33V-1754208

Wavesharereg-091-inch-White-OLED-Module-Expansion-Board-LCD-Screen-I2C-Interface-SSD1306-128x32-33V-1754208

Wavesharereg-091-inch-White-OLED-Module-Expansion-Board-LCD-Screen-I2C-Interface-SSD1306-128x32-33V-1754208

Wavesharereg-091-inch-White-OLED-Module-Expansion-Board-LCD-Screen-I2C-Interface-SSD1306-128x32-33V-1754208

Wavesharereg-091-inch-White-OLED-Module-Expansion-Board-LCD-Screen-I2C-Interface-SSD1306-128x32-33V-1754208
