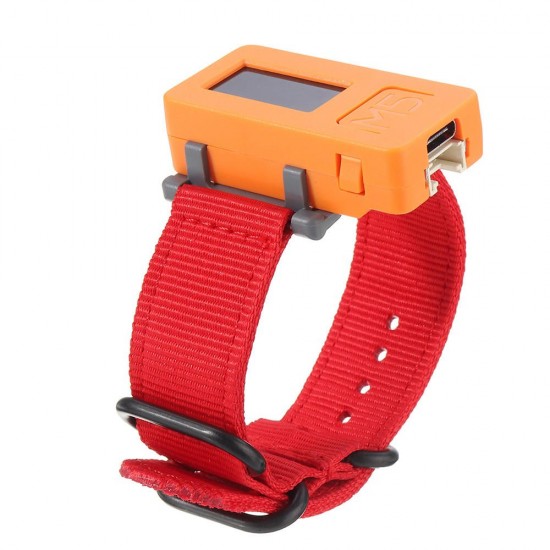

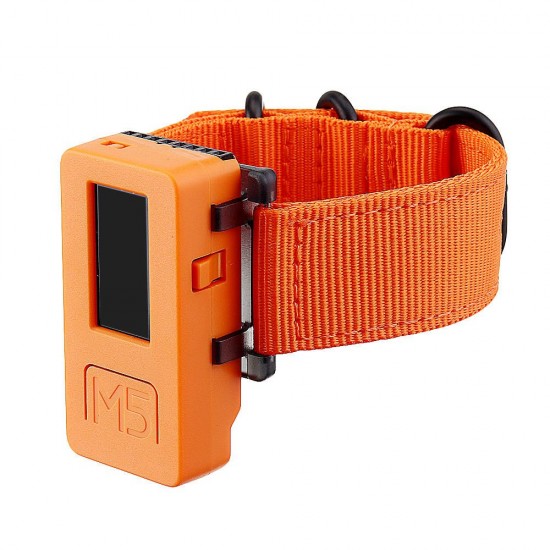

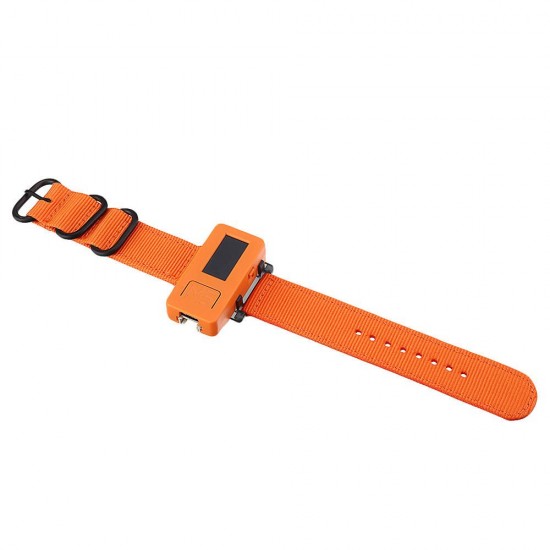

3pcs ESP32 PICO Color LCD Mini IoT Development Board Finger Computer with Watch Accessories
- Stock: In Stock
- Model: EB0041727
- SKU: EB0041727
>>>More M5Stack Item: Click here to open<<<
Description:

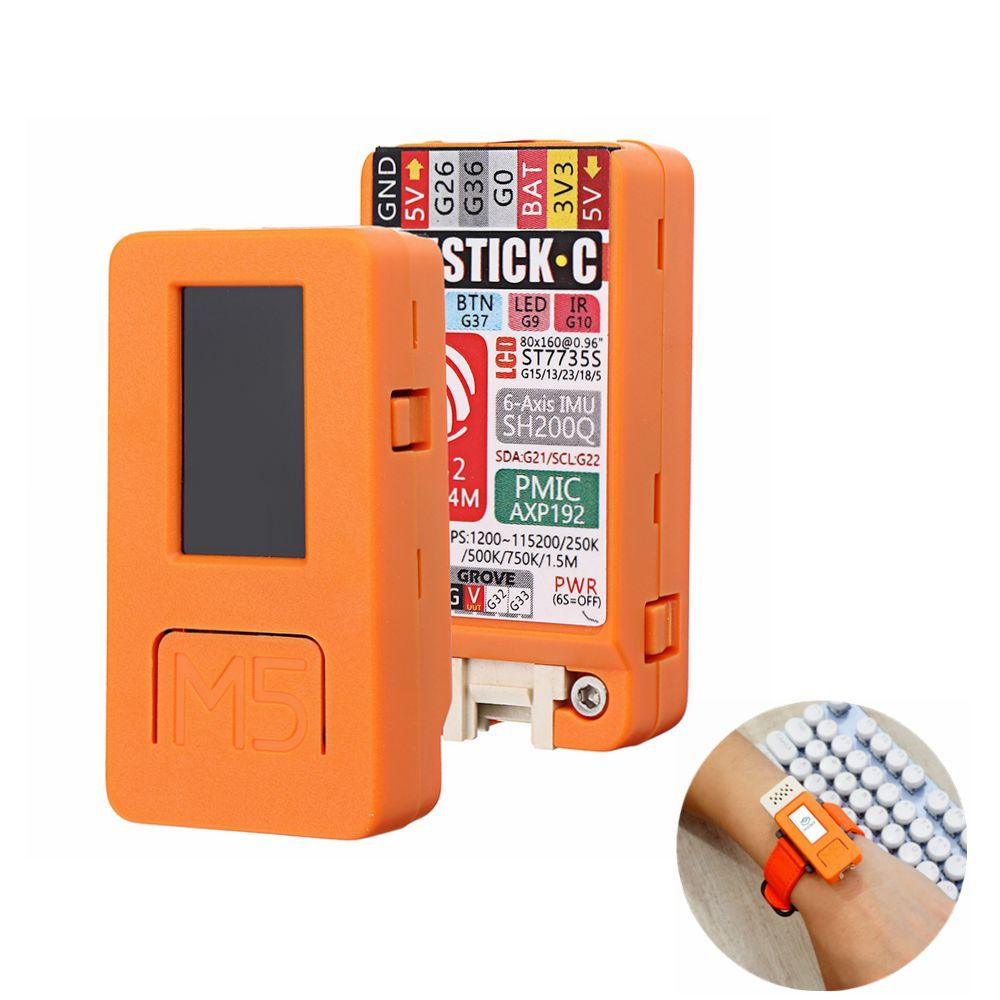

RED LED & IR Transmitter & BUTTON A & BUTTON B
| ESP32 | GPIO10 | GPIO9 | GPIO37 | GPIO39 |
| RED LED | LED PIN | |||
| IR Transmitter | Transmitter Pin | |||
| Button A | Button Pin | |||
| Button B | Button Pin |
TFT LCD
Driver IC:ST7735S
Resolution:80 * 160
| ESP32 | GPIO15 | GPIO13 | GPIO23 | GPIO18 | GPIO5 |
| TFT LCD | TFT_MOSI | TFT_CLK | TFT_DC | TFT_RST | TFT_CS |
GROVE PORT
| ESP32 | GPIO33 | GPIO32 | 5V | GND |
| GROVE port | SCL | SDA | 5V | GND |
MIC (SPM1423)
| ESP32 | GPIO0 | GPIO34 |
| MICPHONE | SCL | SDA |
6-Axis posture sensor (SH200Q/MPU6886) & power management IC (AXP192)
| ESP32 | GPIO22 | GPIO21 |
| 6-Axis posture sensor | SCL | SDA |
| power management IC | SCL | SDA |
datasheet
Example
Comparision Between Different Development Kits of M5
-
For details click here
-
Download chart click here
-
M5StickC facory test code
-
M5StickC Vending Machine

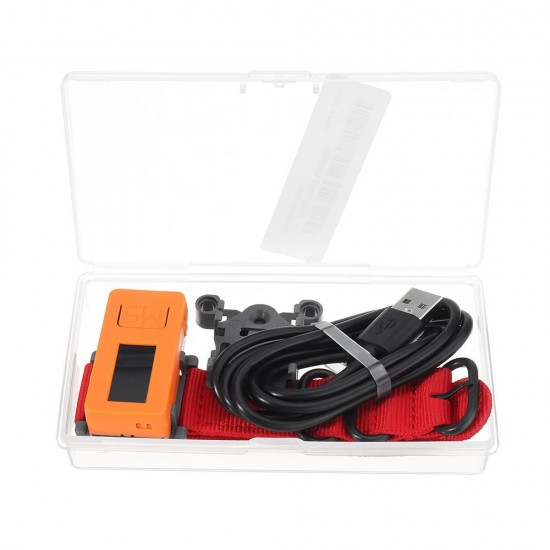

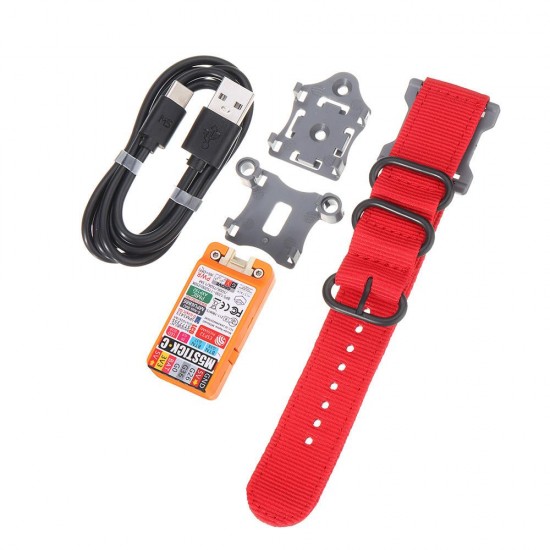

Package Included:
3 x M5StickC
3 x USB Type-C cable
3 x Watch Accessories
