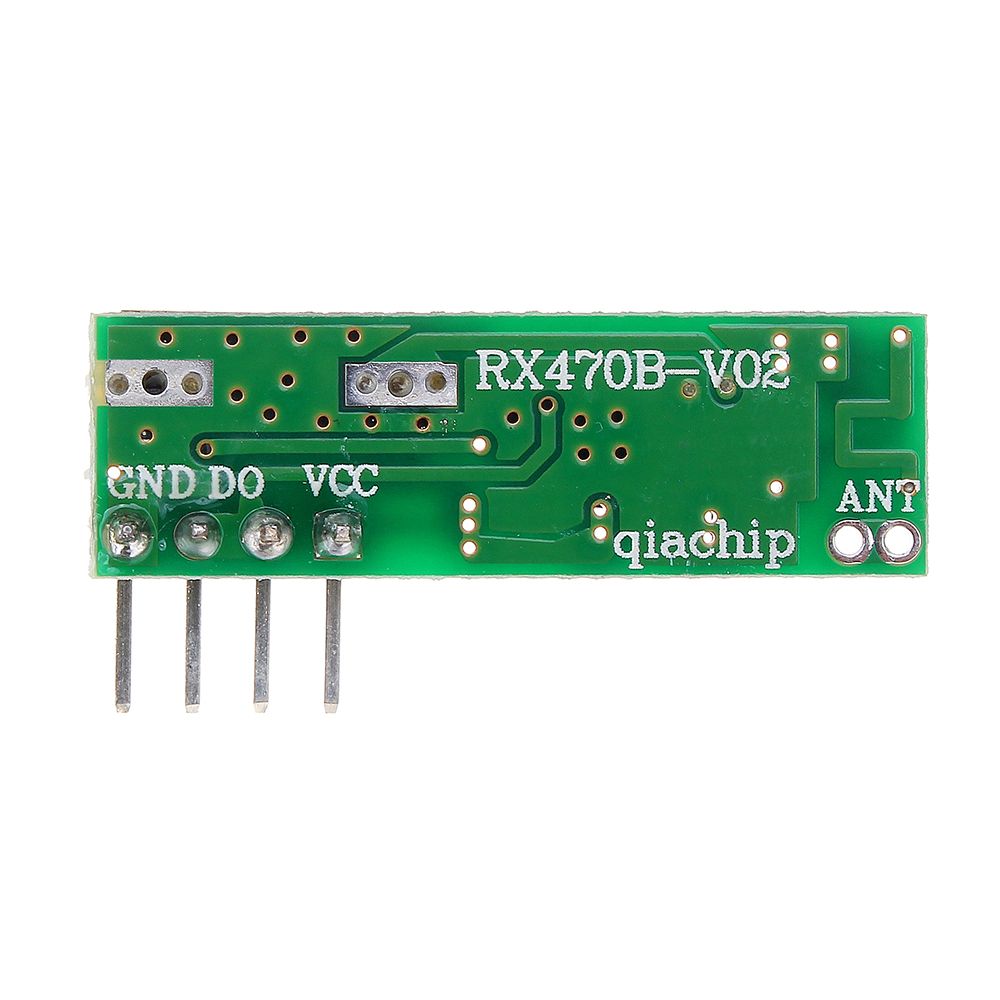

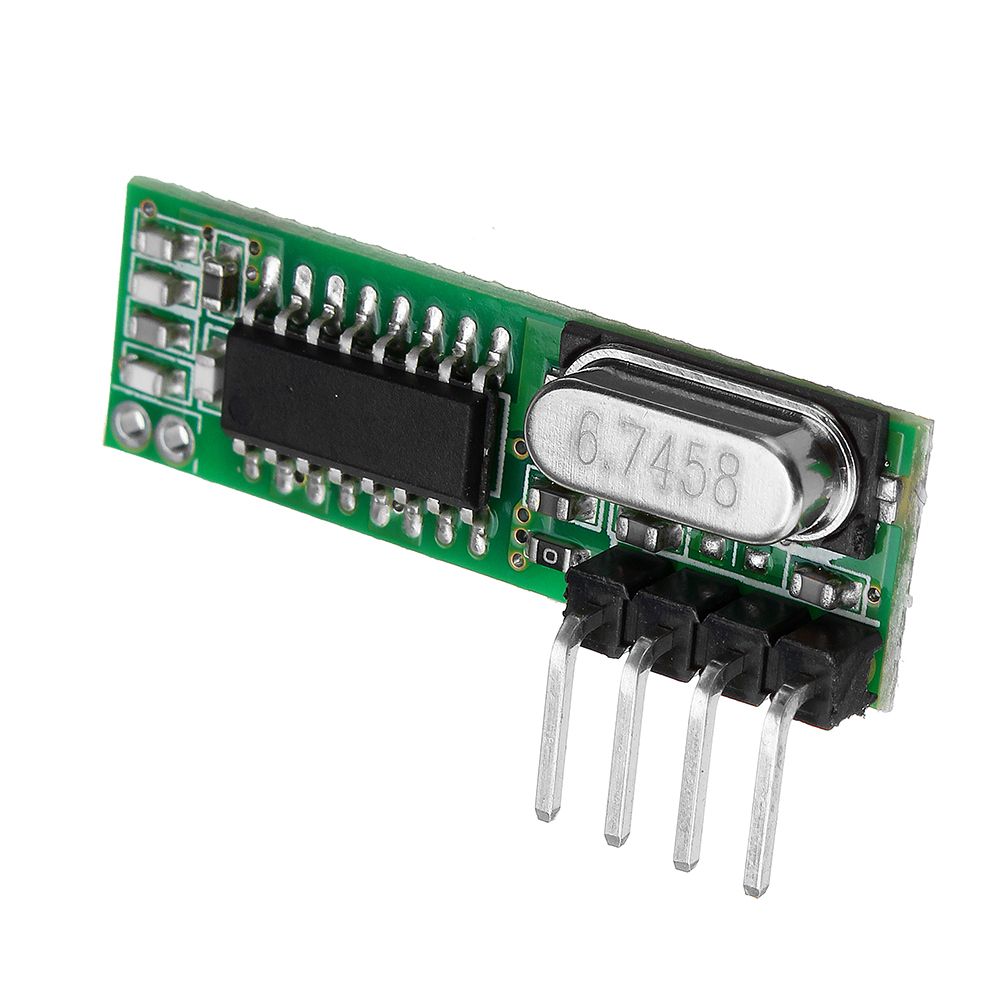

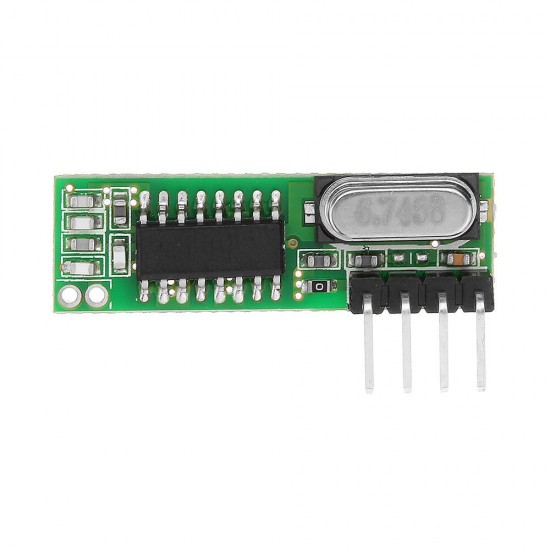

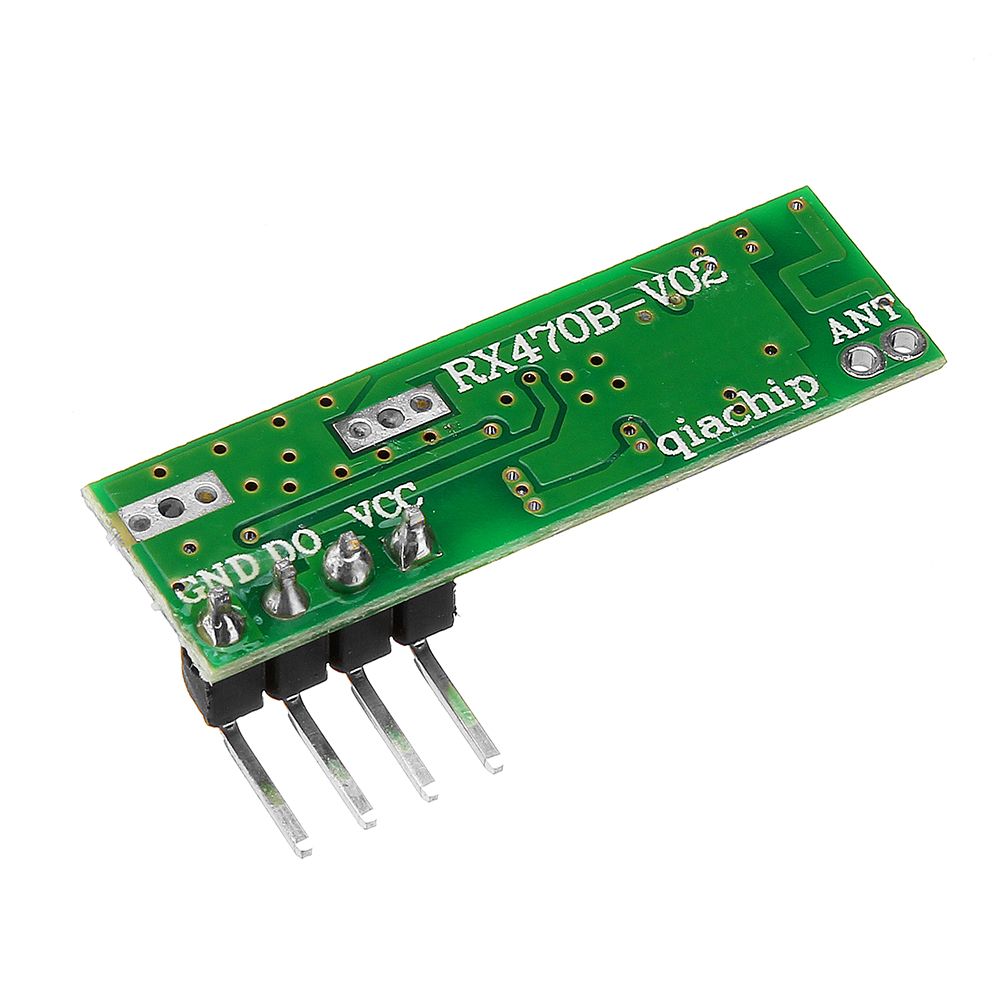

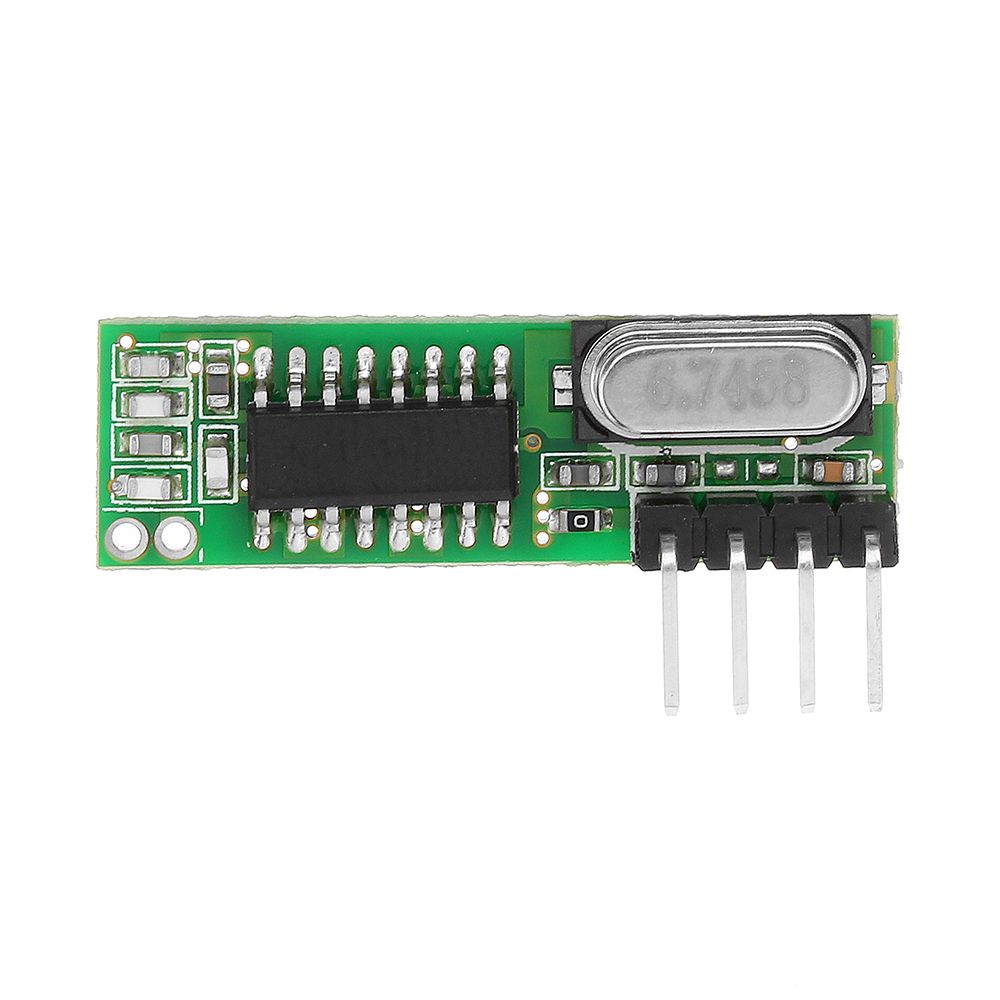

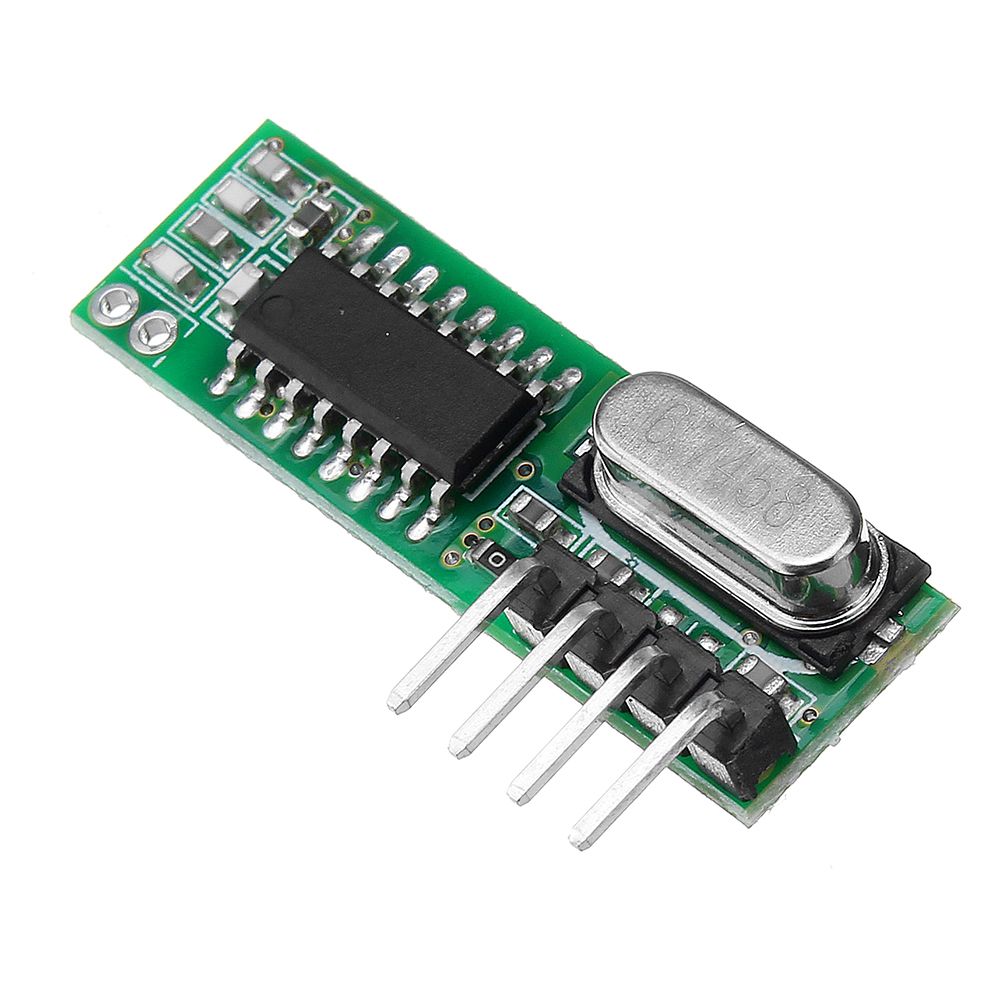

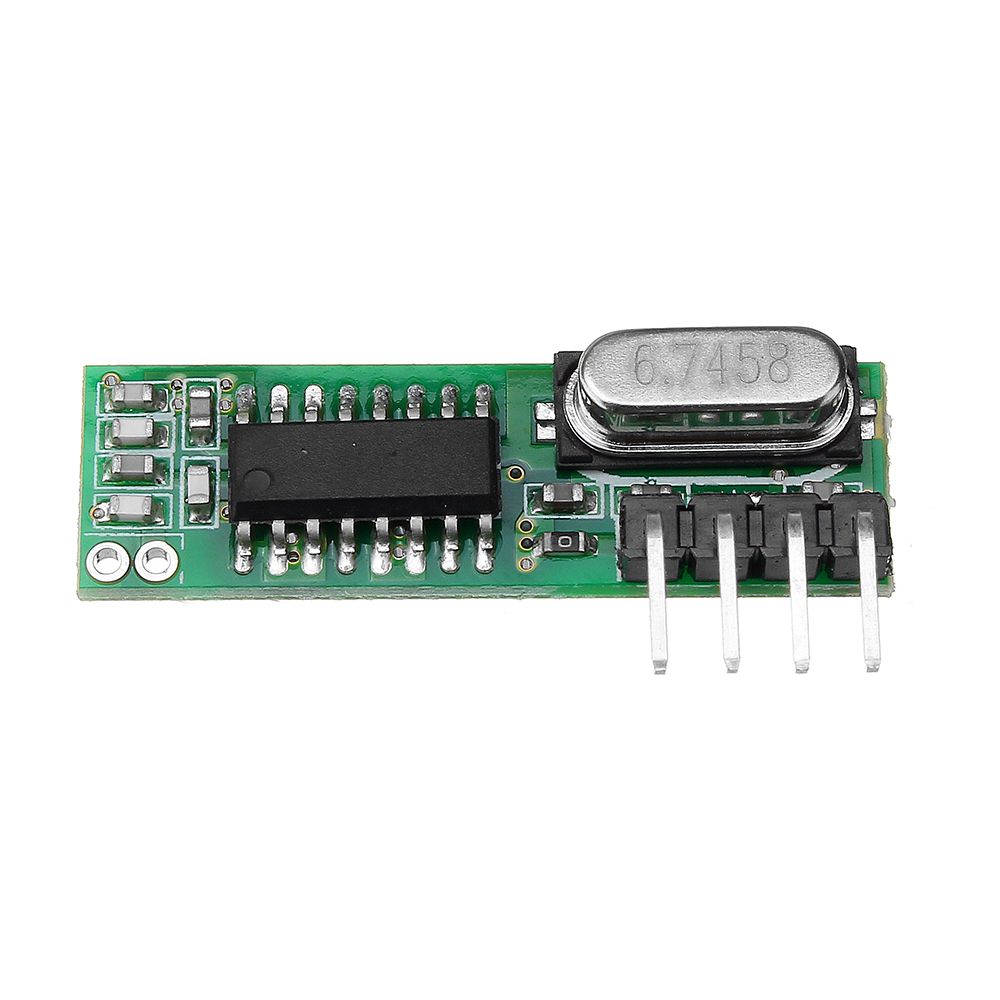

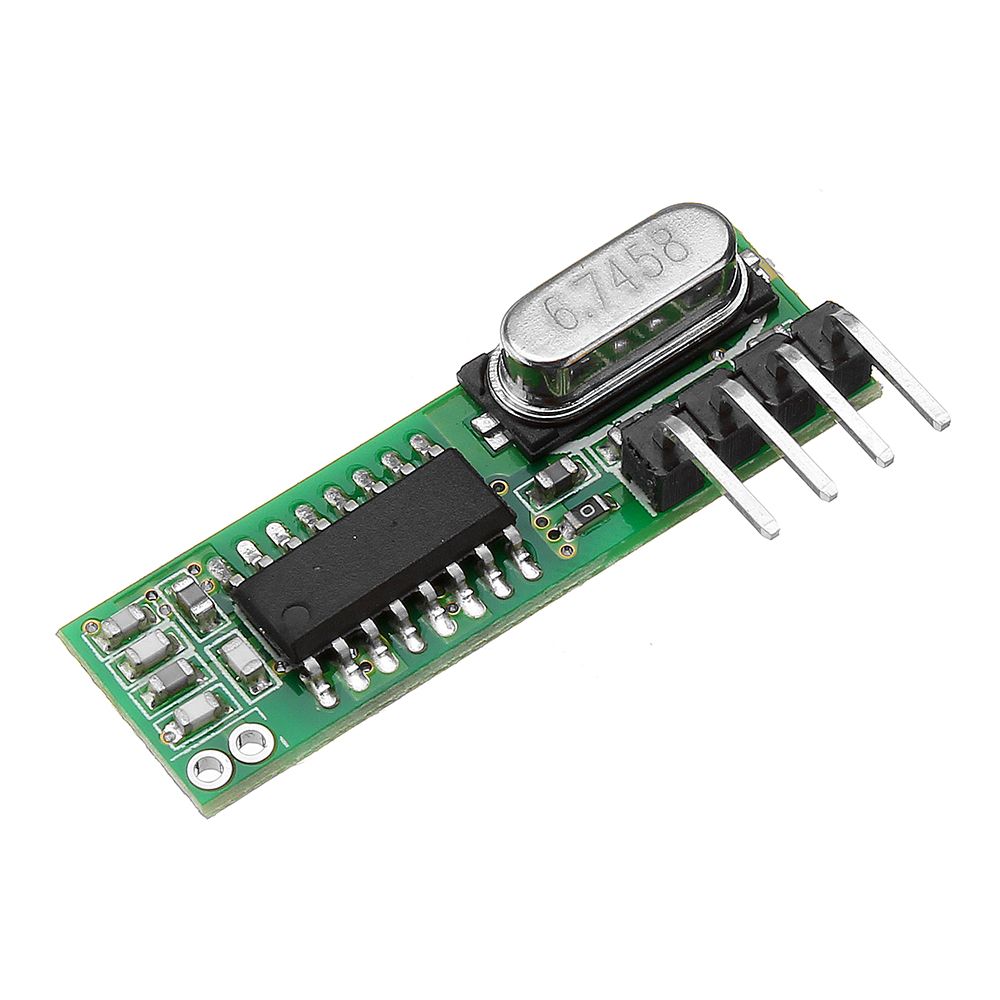

10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home

10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
10pcs RX470 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module ASK/OOK for Transmitter Smart Home
$21.11
Ex Tax: $21.11
  • Stock: In Stock
  • Model: EB0047462
  • SKU: EB0047462
>
Features:

- RX470-4 Superheterodyne Wireless Receiver Module is receiving UHF ASK demodulators support ASK and OOK modulation.
- The receiver module has high sensitivity (-108dBm)
- It has low-power performance, along with high dynamic range (greater than 60dB)
- Module uses highly integrated chip, built front-end low-noise amplifier, Mixers, filters, frequency synthesizer circuit, etc. It can maximize the signal optimization.
- Multiple transmission rates, the general module for 2KHz, up to 10KHz
- Support ASK / OOK modulation, the receiver sensitivity of -108dBm

Specifications:

Operating Frequency: RF 433.92MHz, bandwidth of about ± 150KHz
Mains Input Voltage Range: 2.2V-5V DC
Working Current:  Type A: 2.1mA (Requirement:VDD=5V) ; Type B: 2.1mA (Requirement:VDD=3V)
Support external antenna: 32CM single core wire, wound into a spiral
Quiescent Current: 1uA
Temperature range: -40 ~ 85 °C

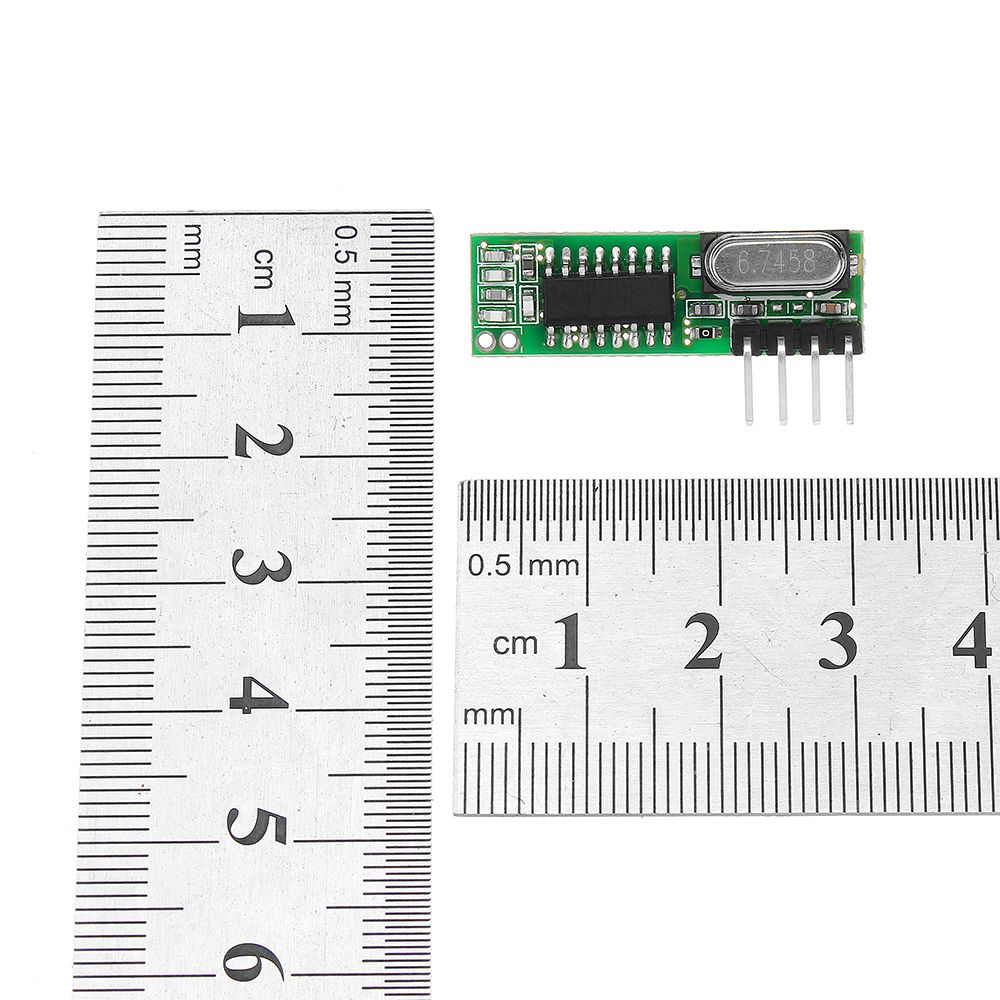

Size: 30 × 9 × 1 mm

Application:

1.Wireless power switch, socket, remote control switch, receiver module.
2. Access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system.
3. Security, surveillance systems, home security products, electric doors, alarm host, alarm.
4. Rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door.
5. smart home products, remote control curtains, remote MP3, audio

Package Included:

10 x 433Mhz RF Superheterodyne Wireless Remote Control Receiver Module
