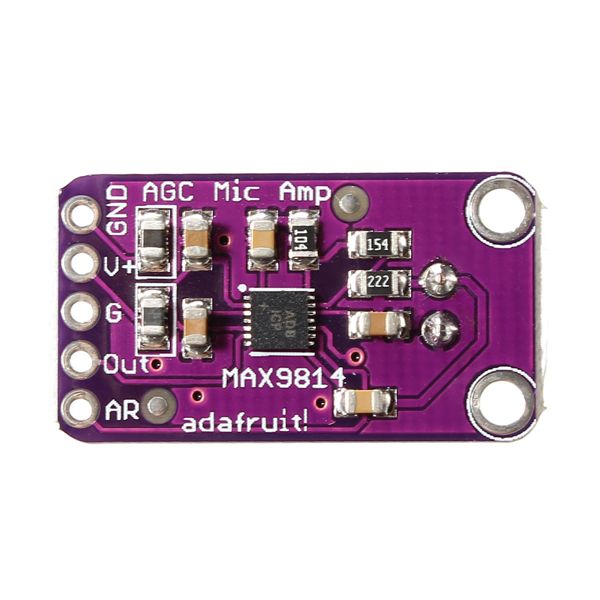

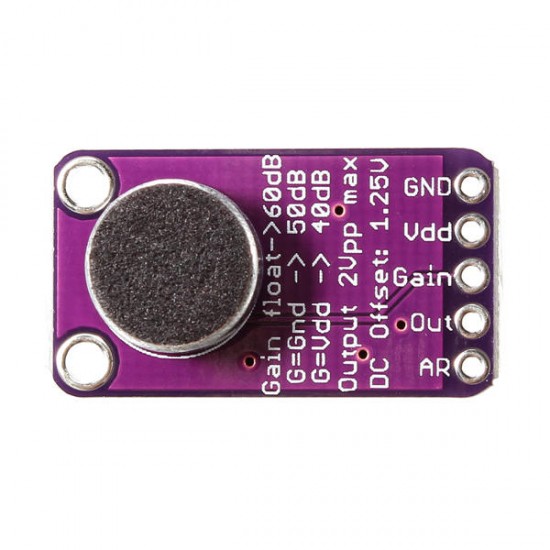

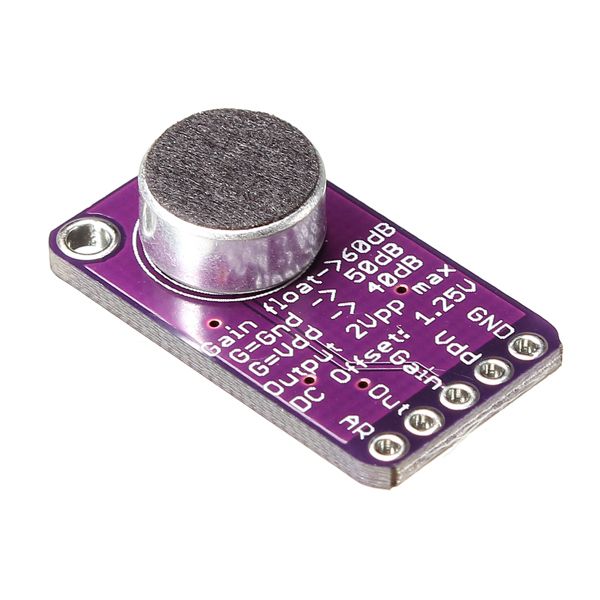

MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W

MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
MAX9814 High Performance Microphone AGC Amplifier Module CMA-4544PF-W
$4.40
Ex Tax: $4.40
  • Stock: In Stock
  • Model: EB0051757
  • SKU: EB0051757
Content-Length: 1857 >
Specifications:

- Supply Voltage: 2.7v-5.5v @ 3mA current
- Output: 2Vpp on 1.25V bias
- Frequency Response: 20Hz - 20KHz
- Programmable Attack and Release Ratio
- Automatic gain, selectable max from 40dB, 50dB or 60dB
- Low Input-Referred Noise Density of 30nV/
- Low THD: 0.04% (typ)
- Low Power Shutdown Mode
- Built-in 2V low-noise microphone bias
- -40°C ~ +85°C extended temperature range


Package included:

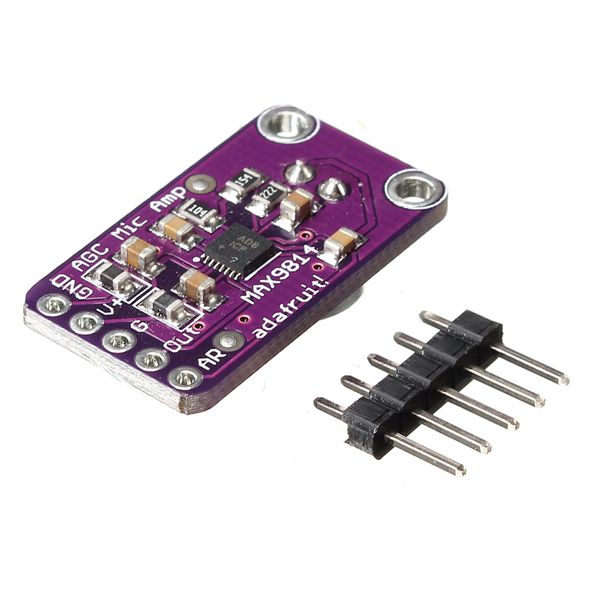

1 x Microphone AGC Amplifier Module
