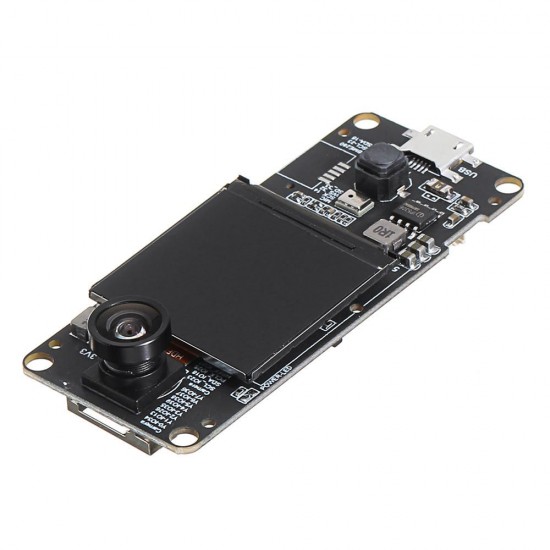

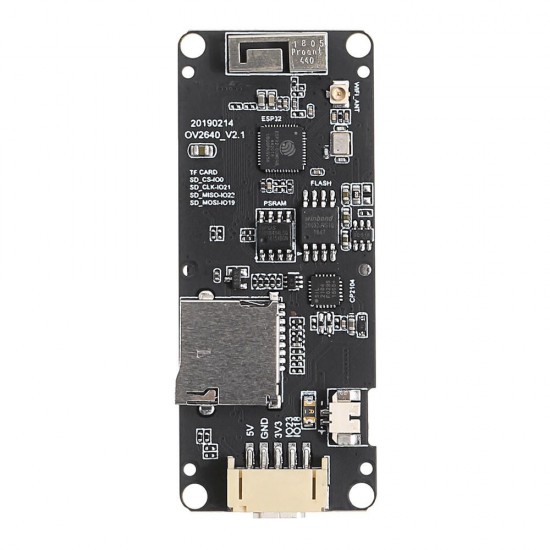

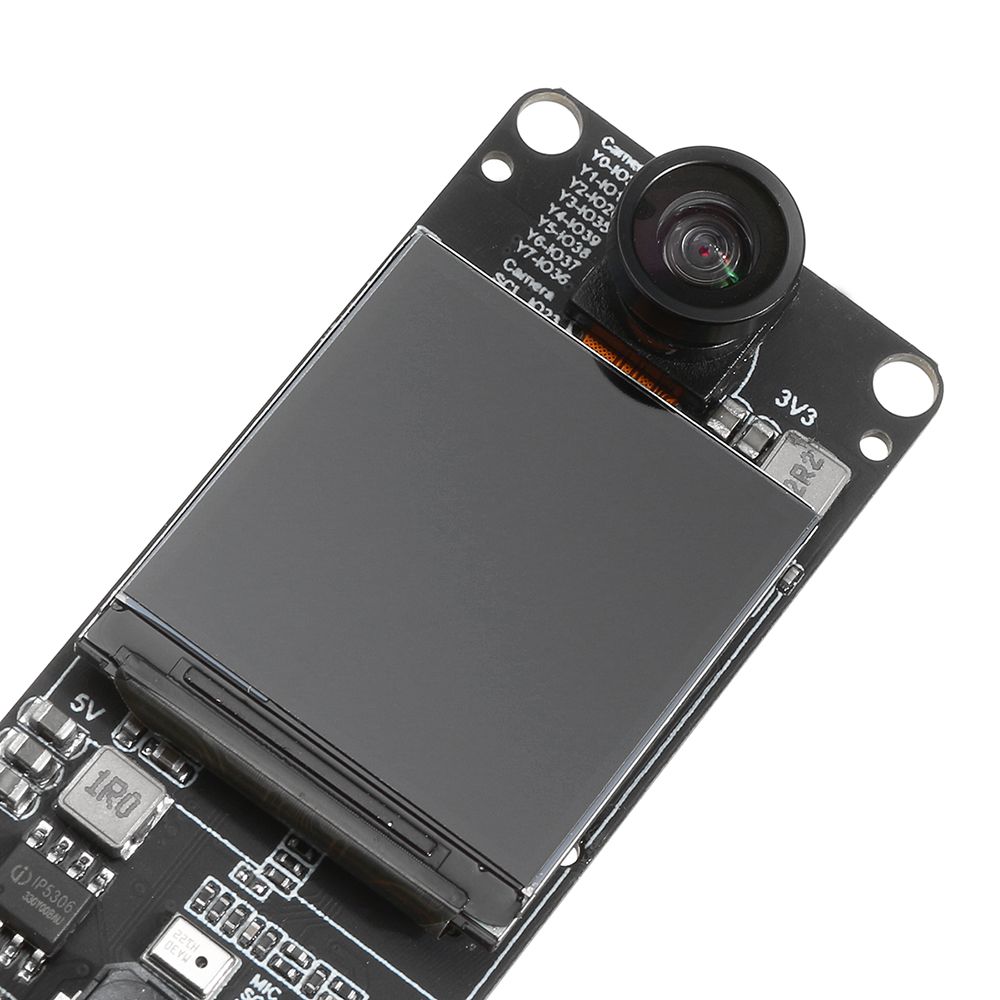

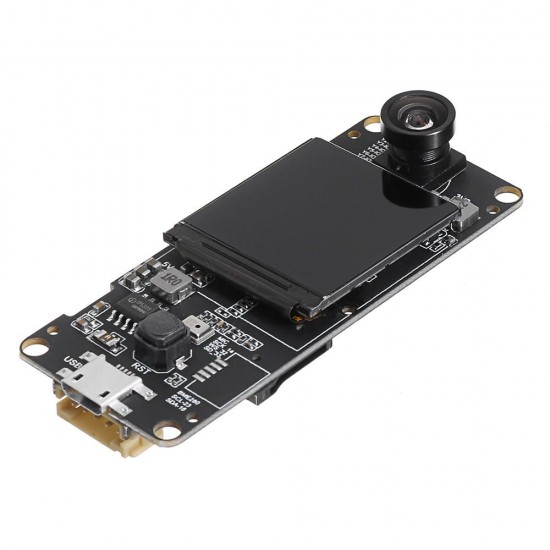

T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board

T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
T-Camera Plus ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
$25.99
Ex Tax: $25.99
  • Stock: In Stock
  • Model: EB0042042
  • SKU: EB0042042

Available Options

More details:

Hardware Specifications
Chipset ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® dual-core 32-bit LX6 microprocessor
FLASH QSPI 4M flash / 8M SRAM
SRAM 520 kB SRAM +  8MBytes External SPRAM
KEY Reset
Dispaly IPS Panel ST7789/1.3 Inch
Power indicator lamp Red
USB to TTL CP2104
Camera OV2640  2Megapixel
on-board clock 40MHz crystal oscillator
Working voltage 2.3V-3.6V
Working current about 160mA
Working temperature range  -40 to +85
Size 69.13*28.41*8.45mm
Mic MSM261S4030H0
SDCard Integrated external SD card slot
Sensor BME280/humidity/pressure/temperature

Power management chip IP5306
Power Supply USB 5V/1A
Charging current 1A
Battery 3.7V lithium battery

WIFI Description
Standard FCC/CE/TELEC/KCC/SRRC/NCC
Protocol 802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
communication distance 300m

bluetooth Description
Protocol Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency With -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency CVSD&SBC audio frequency

Software specification Description
Wifi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA (Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS

TTGO Camera VS TTGO Camera Plus:

Function TTGO T-Camera (Product ID: EB0042664) TTGO T-Camera Plus (This item)
MIC not supported supported
SDCard not supported supported
BME280 not supported not supported
Charging supported supported
I2C supported supported
Screen OLED SSD1306/0.96 IPS Panel ST7789/1.3
Camera OV2640 OV2640
PIR supported not supported
User button supported not supported
Core ESP32-WROVER-B ESP32-DOWDQ6
PSRAM 8MBytes 8MBytes
FLASH 4MBytes 4MBytes
UART CP2104 CP2104

Package includes:

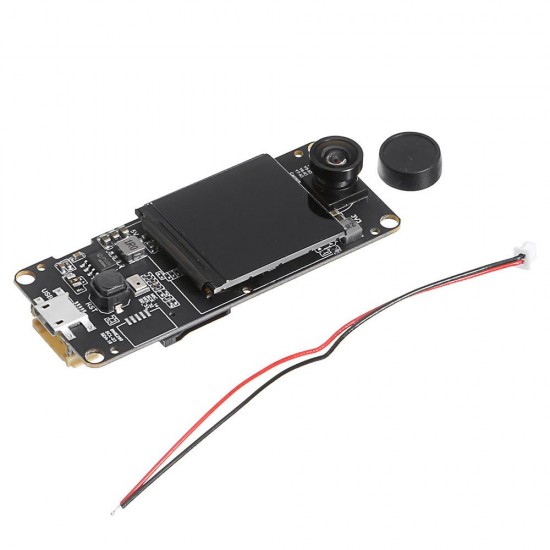

1 x TTGO T-Camera plus

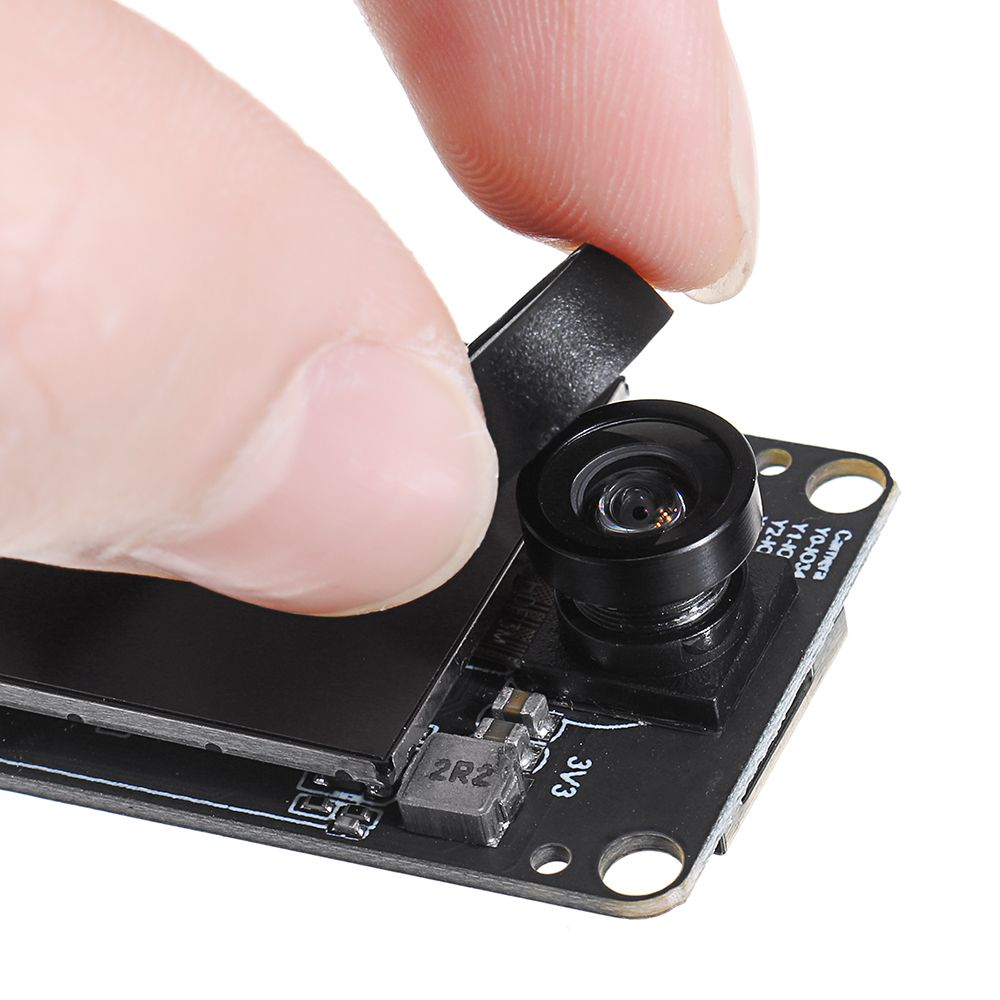

(Normal/Fish-eye Lens optional)
