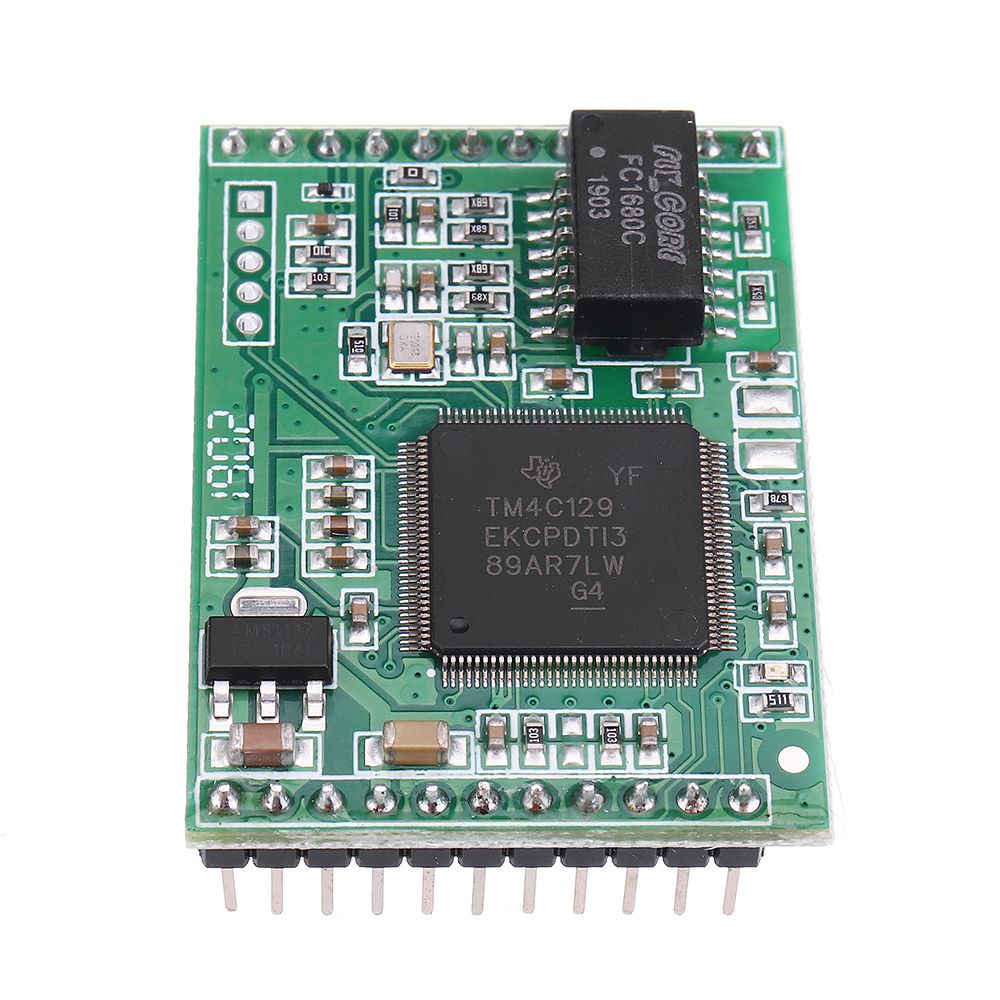

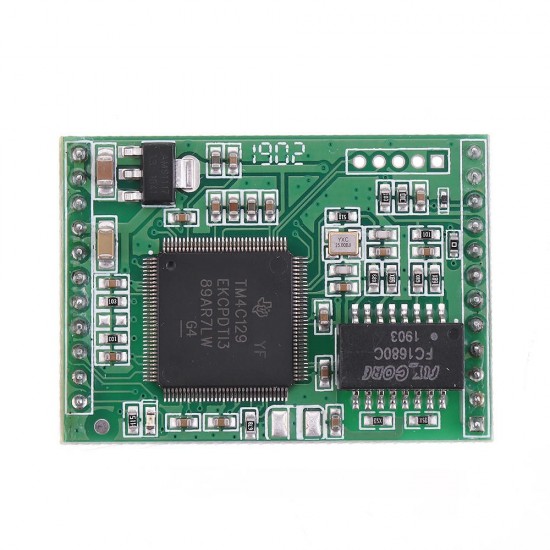

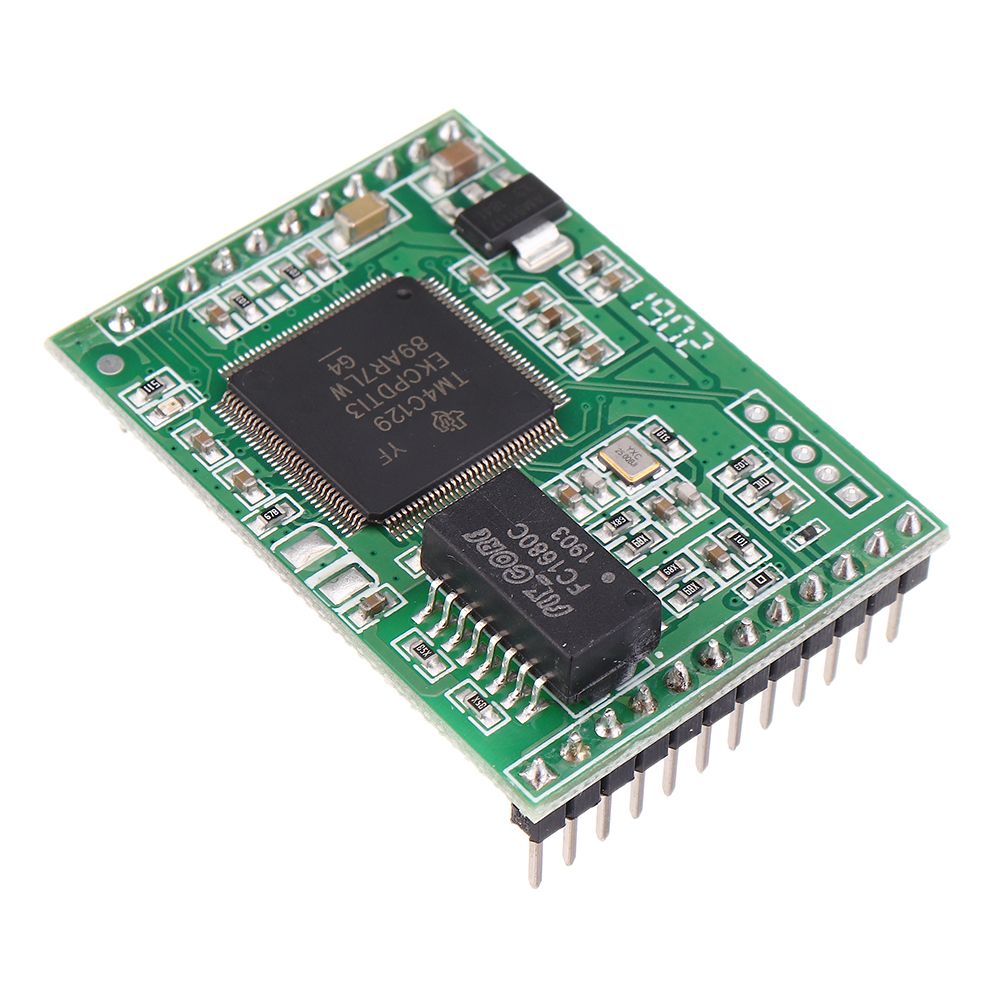

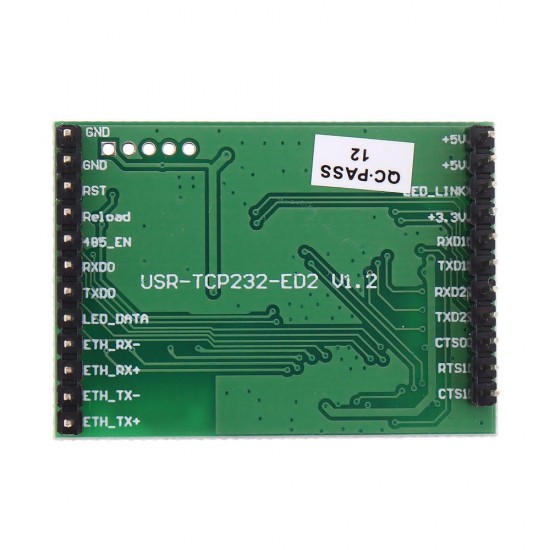

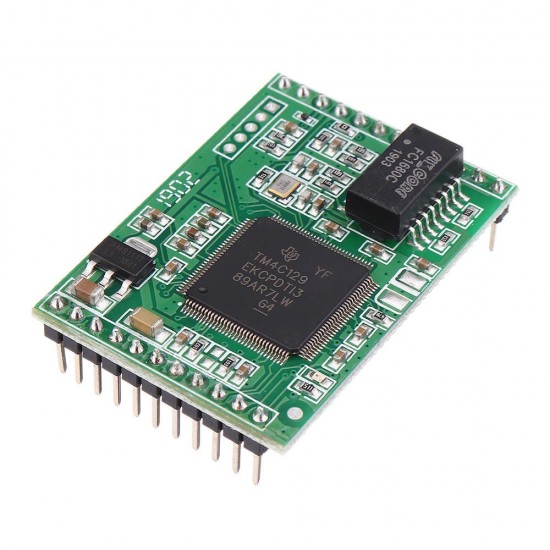

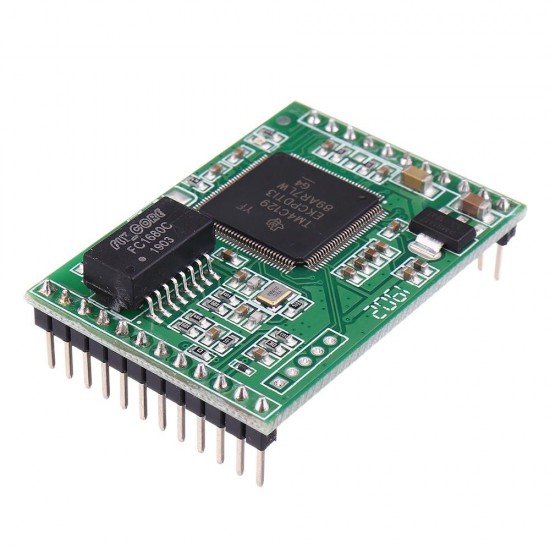

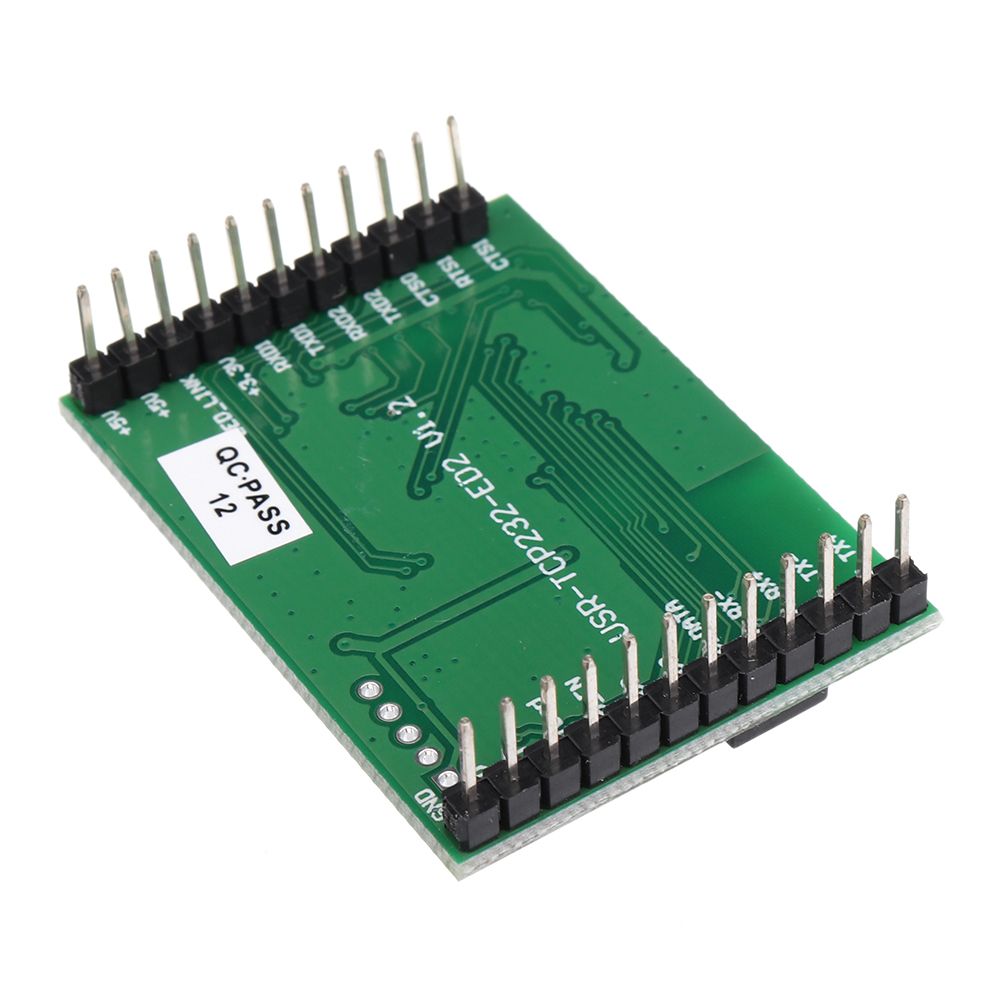

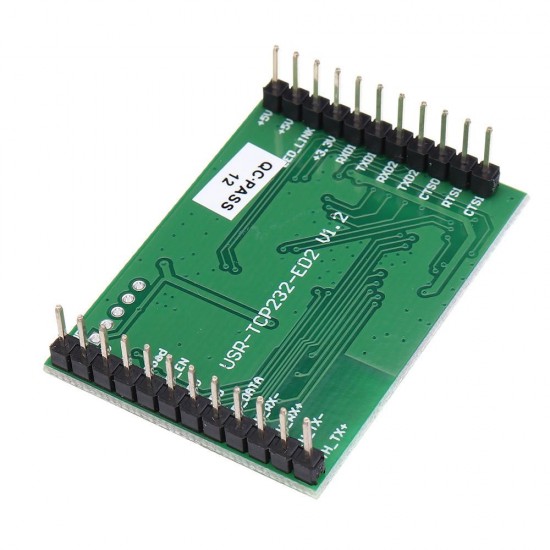

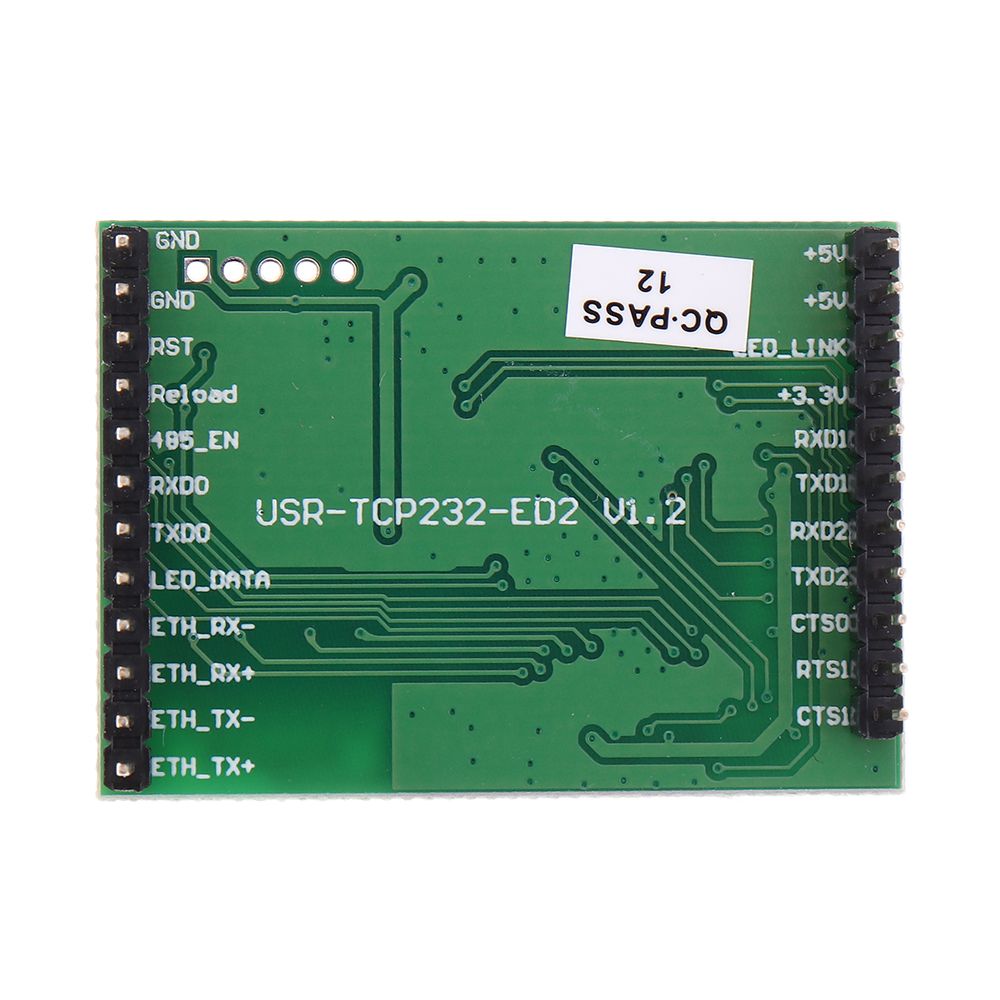

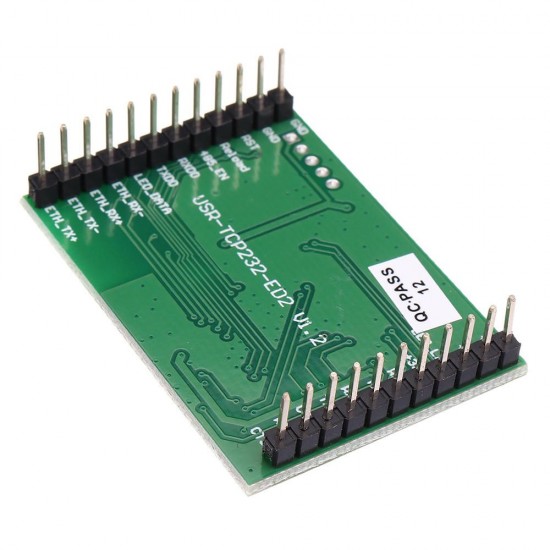

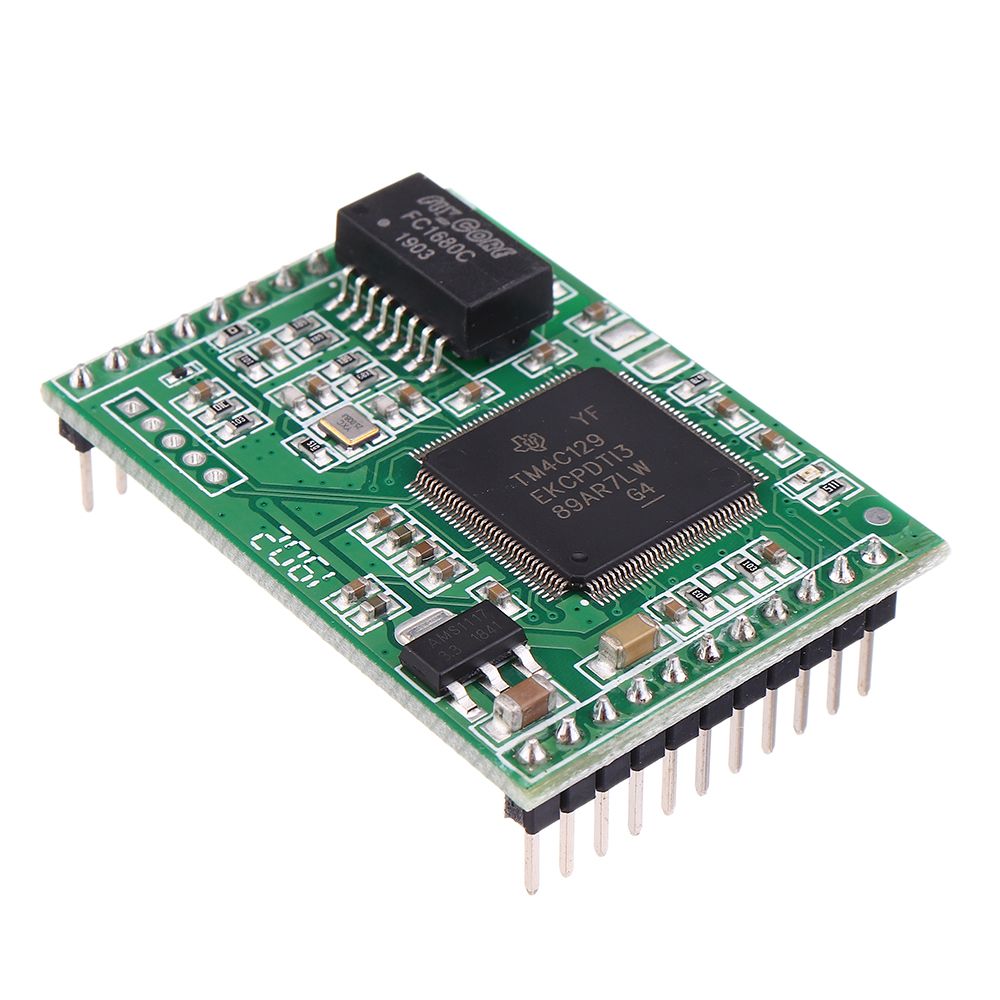

Three 3 Channel Serial Port to Ethernet Module TTL Level Support DHCP WEB Configuration USR-TCP232-ED2
- Stock: In Stock
- Model: EB0042607
- SKU: EB0042607
Feature:
| System message | |
| Processor | Cortex-M4 |
| Main frequency | 120MHz |
| Flash | 512K bytes |
| Ethernet | |
| Number of ports | 1 |
| Interface standard | 4-pin connector (with network transformer) TX+, TX-, RX+, RX- |
| Rate | 10/100Mbps, MDI/MDIX cross-connect automatic switching |
| Protection | 1.5KV electromagnetic isolation |
| Network protocol | IP, TCP, UDP, ARP, ICMP, DHCP, DNS, Web socket, HTTP, HTTPD Client |
| Receive buffer | Maximum support for 16K byte cache |
| Serial port | |
| Number of ports | 3 (3-way TTL serial port, support simultaneous work) |
| Interface standard | TLL serial port: 2.54 pin 3.3V |
| Data bit | 5,6,7,8 |
| Stop bit | 1,2 |
| Check Digit | None, Even, Odd, Space, Mark |
| Baud rate | TTL serial port: 600bps-1000Kbps |
| Flow Control | RTS/CTS |
| Cache | Send and receive 2K bytes each |
| RS-485 pull-up resistor | No, reserve 485 transceiver control pin |
| Software | |
| Virtual serial port (USR-VCOM) | Windows 2000 or higher (32 bit / 64 bit) |
| Configuration method | Built-in web page, host computer setting software, serial port com mand |
| Basic parameters | |

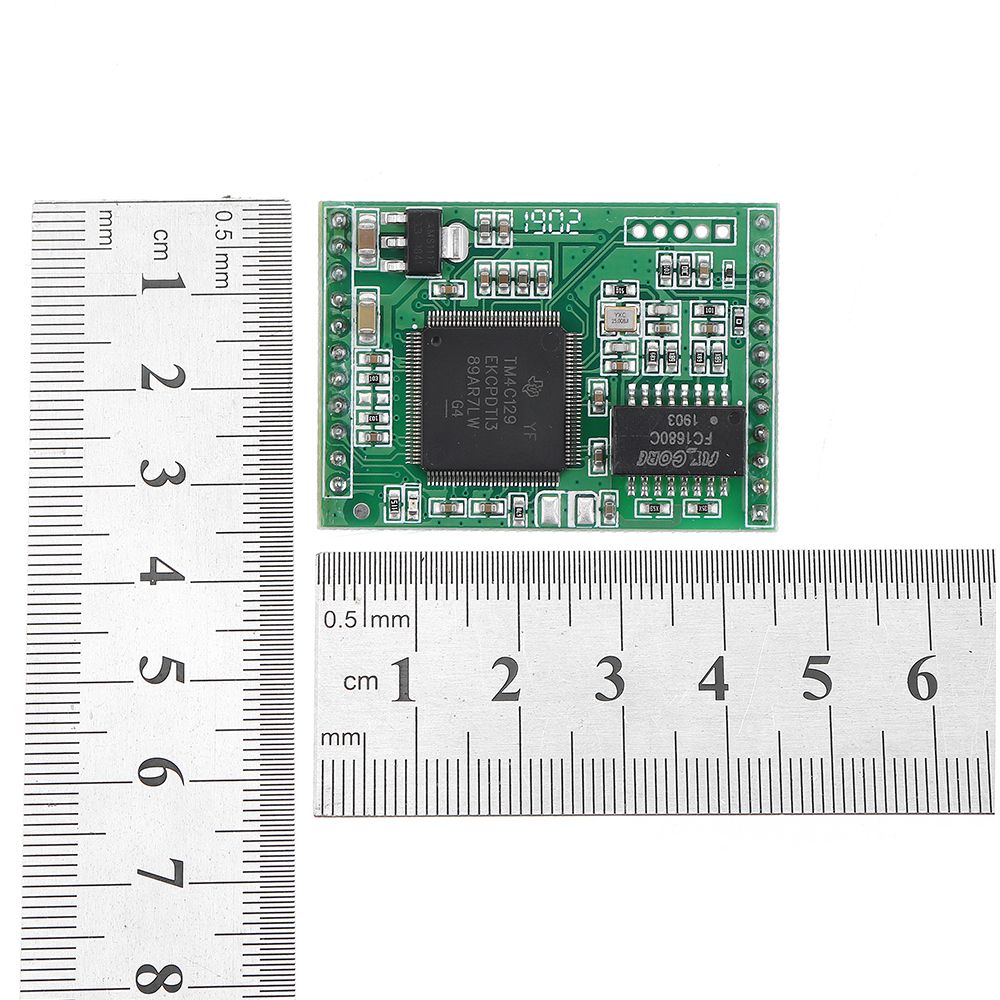

| Size | 44.5 x 31.8 x 15.4mm |
| Operating temperature | -40~85°C (industrial grade) |
| Save environment | -40~105°C, 5~95% RH (no condensation) |
| Renhotec | DC3.3V/DC5V |
| Working current | 120mA (aver) / 125mA (max) @ 3.3V 120mA (aver) / 125mA (max) @ 5V |
| Power consumption | <1W |
| More | |
| Safety certification | CE (EMC+LVD) FCC ROHS WEEE |
Package includes:
1 x Module
