$11.24
Ex Tax: $11.24
  • Stock: In Stock
  • Model: EB004519
  • SKU: EB004519
Specifications:

DC Voltage (Auto ranging)
Range Resolution Accuracy
200mV 0.1mV ±(0.8% of rdg + 5dgts)
2V 1mV ±(0.5% of rdg + 2dgts)
20V 10mV
200V 100mV
600V 1V ±(1.0% of rdg + 5dgts)
Input Impedance: 10MΩ
Overload Protection: 600V DC/AC rms
Max. Input voltage: 600V DC

DC Current
Range Resolution Accuracy
200µA 0.1µA ±(0.8% of rdg + 5dgts)
2000µA 1µA
20mA 10µA
200mA 100µA
Overload Protection: F0.5A/600V fuse
Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV

AC Current
Range Resolution Accuracy
200µA 0.1µA ±(1.0% of rdg + 5dgts)
2000µA 1µA
20mA 10µA
200mA 100µA
Overload Protection: F0.5A/600V fuse

Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV
Frequency Range: 40Hz ~ 400Hz
Response: Average, calibrated in rms of sine wave

AC Voltage (Auto ranging)
Range Resolution Accuracy
2V 1mV ±(1.2% of rdg + 3dgts)
20V 10mV
200V 100mV
600V 1V ±(1.2% of rdg + 8dgts)
Input Impedance: 10MΩ
Frequency Range: 40Hz ~ 400Hz
Overload Protection: 600V DC/AC rms
Response: Average, calibrated in rms of sine wave
Max. Input voltage: 600V AC rms

Display: LCD, 1999 counts updates 2/sec
LCD size: 40 x 20mm
Polarity Indication : “-” displayed automatically
Over-range Indication: “OL” displayed
Low Battery Indication: “” displayed
Range select: auto or manual
Operation Temperature: 0°C to 40°C, less than 80%RH
Storage Temperature: -10°C to 50°C, less than 85%RH

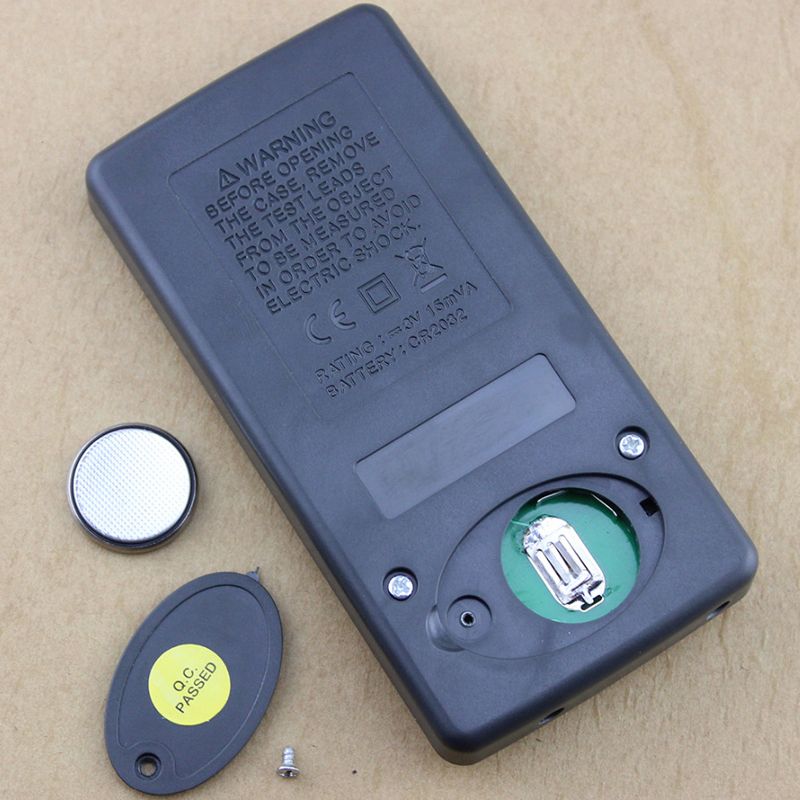

Battery Type : 3V x 2,2032 size
Dimension(H×W×D): 110×55×10mm
Weight: Approx 100g

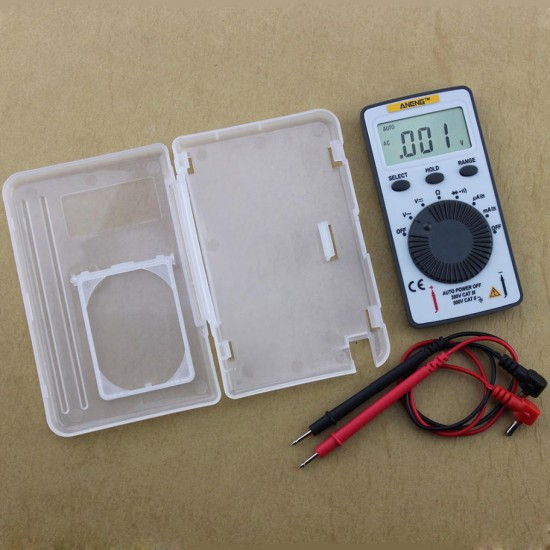

Package included:

1 x ANENG AN101 Pocket Digital Auto Range Multimeter
2 x Electronic Probe

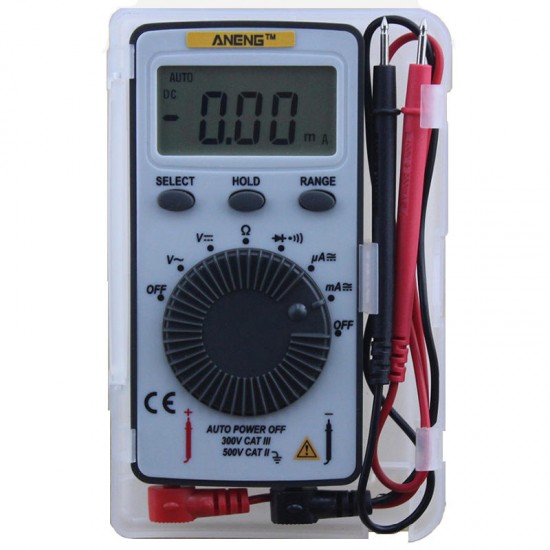

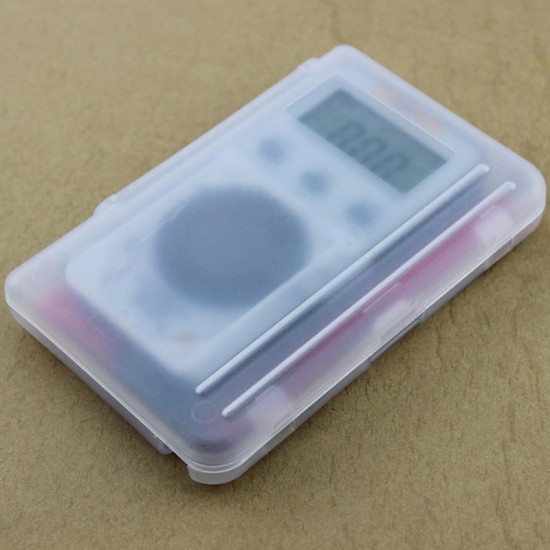

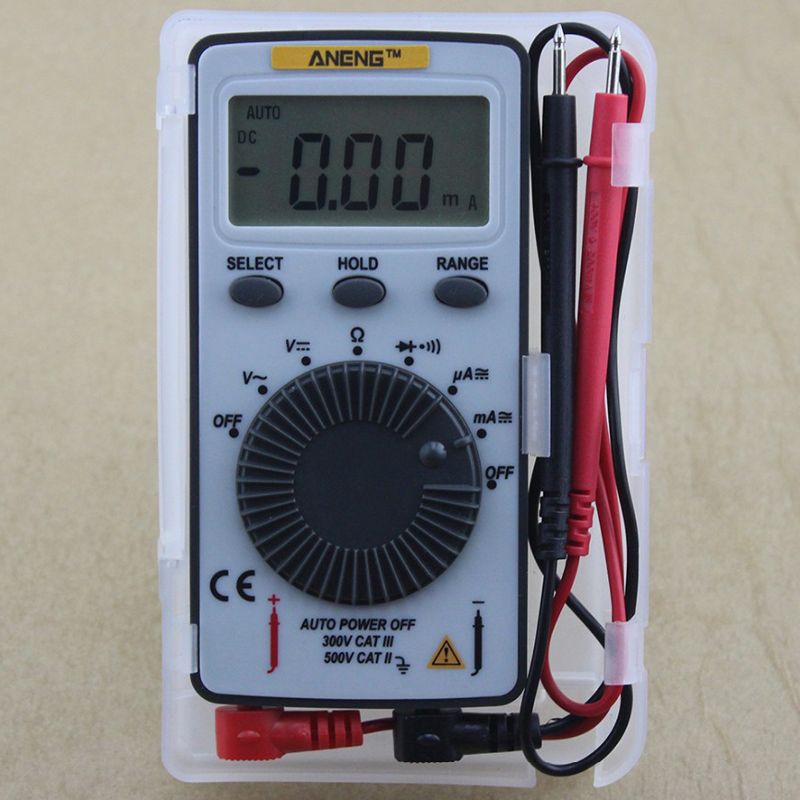

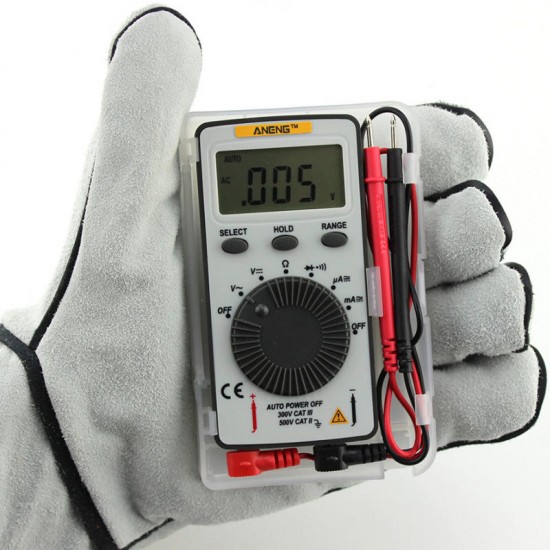

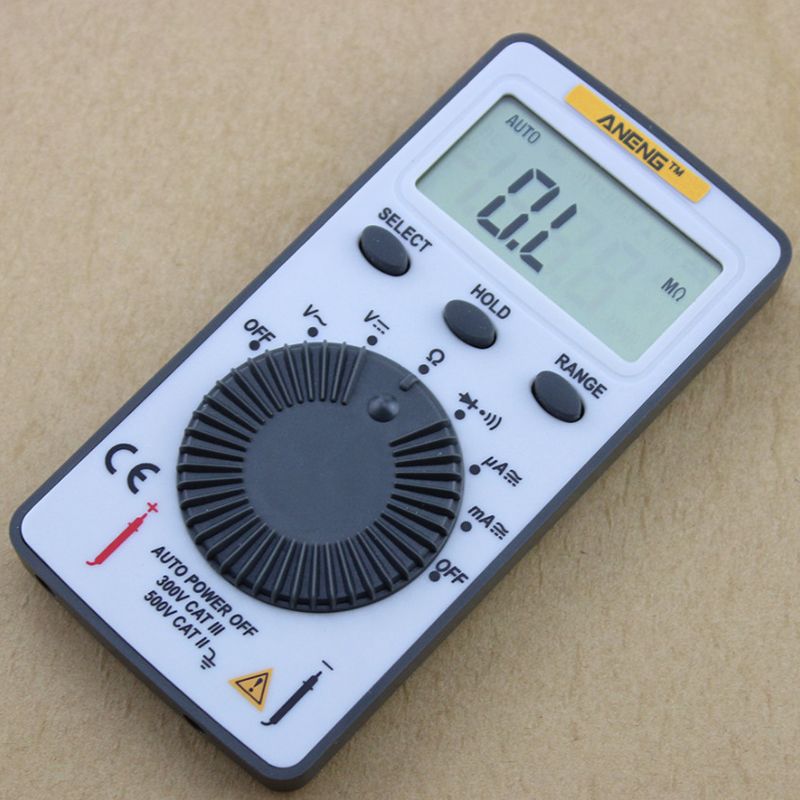

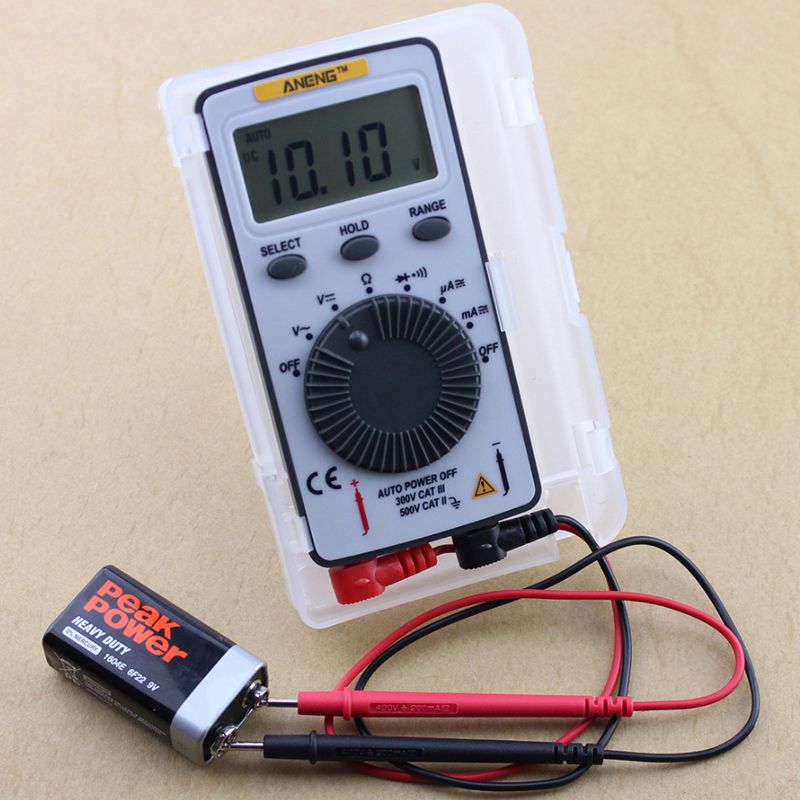

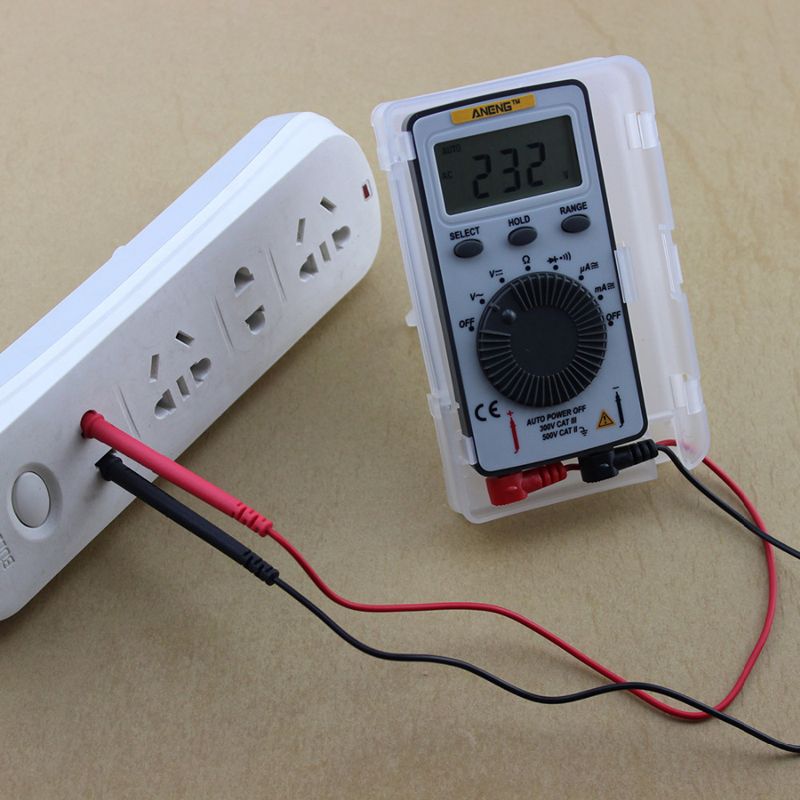

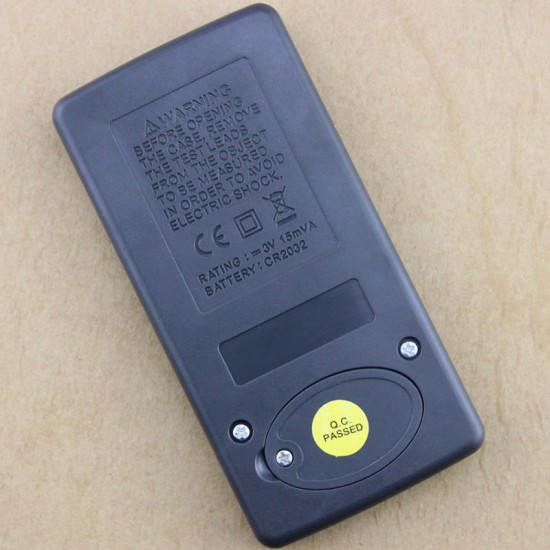

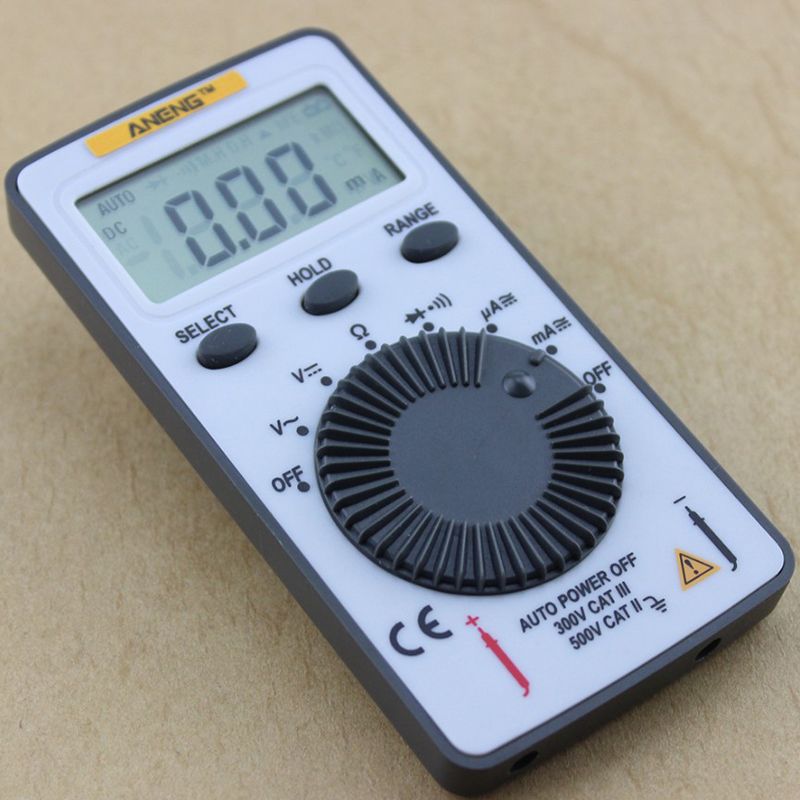

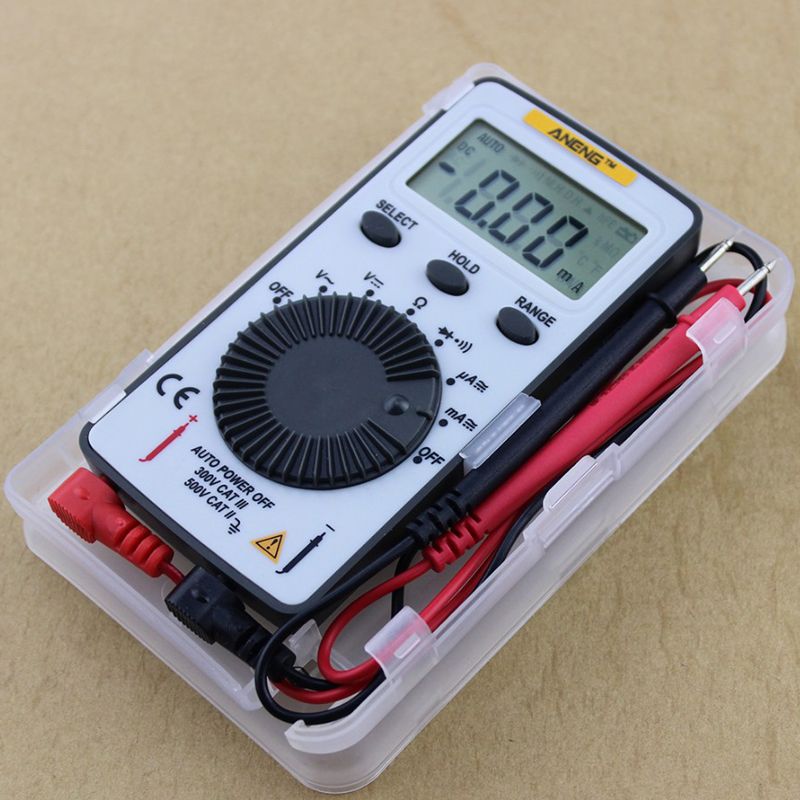

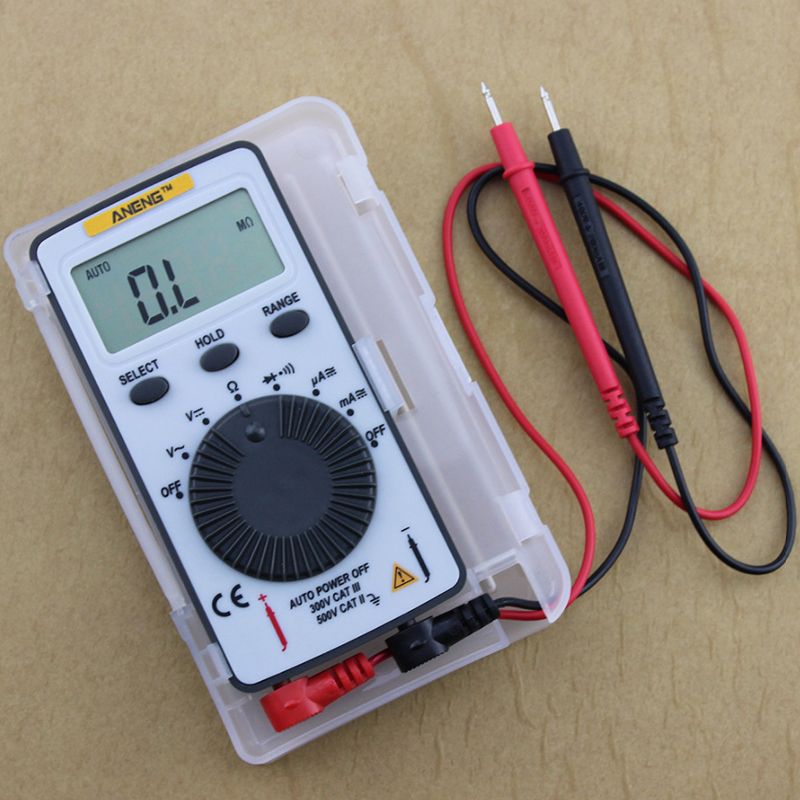

Detail Pictures:


ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983

ANENG-AN101-Pocket-Digital-Auto-Range-Multimeter-Backlight-ACDC-Voltage-Current-Meter-SA847-1157983
