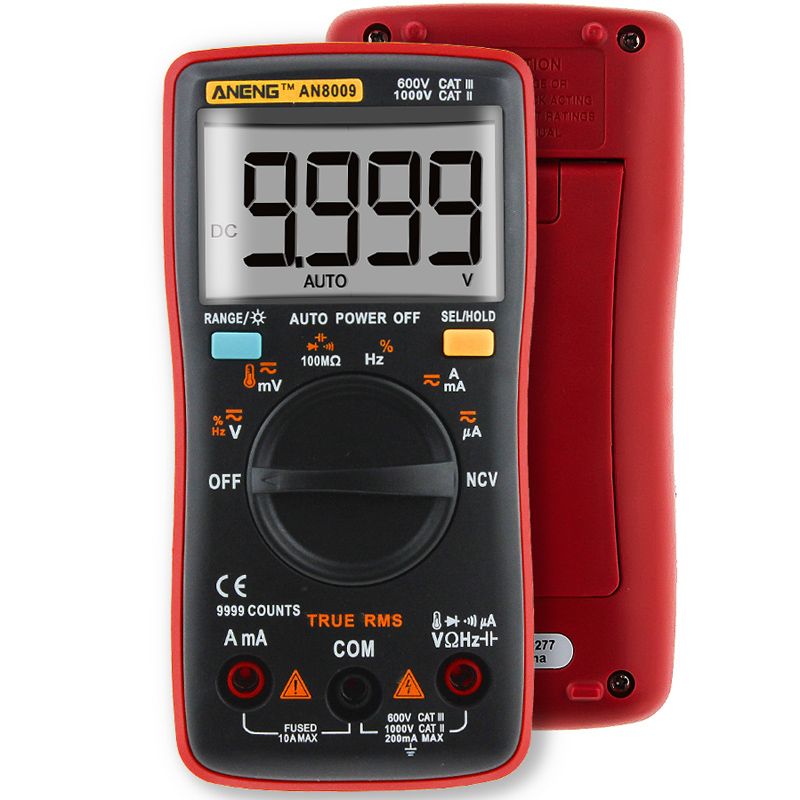

AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester

AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Tester
$21.99
Ex Tax: $21.99
  • Stock: In Stock
  • Model: EB004116
  • SKU: EB004116
Specification:

Function Range Resolution Accuracy MAX. Value Other
DC Voltage
(V)
999.9mV 0.1mV ±(0.5%+3) 999.9V
9.999V 0.001V
99.99V 0.01V
999.9V 0.1V
DC Voltage
(mV)
9.999mV    0.001mV 99.99mV
99.99mV     0.01mV
AC Voltage
(V)
999.9mV 0.1mV ±(1.0%+3) 750V 40Hz-1kHz
9.999V 0.001V
99.99V 0.01V
750.0V 0.1V
AC Voltage
(mV)
9.999mV    0.001mV 99.99mV
99.99mV     0.01mV
DC Current
(mA&A)
999.9mA 0.1mA ±(1.0%+3) 9.999A
9.999A 0.001A
DC Current
(μA)
99.99μA 0.01μA ±(0.8%+3) 999.9μA
999.9μA 0.1μA
AC Current
(mA&A)
999.9mA 0.1mA ±(1.2%+3) 9.999A 40Hz-1kHz
9.999A 0.001A
AC Current
(μA)
99.99μA 0.01μA ±(1.0%+3) 999.9μA
999.9μA 0.1μA
Resistance 99.99Ω 0.01Ω ±(1.0%+3) 99.99MΩ
999.9Ω 0.1Ω ±(0.5%+3)
9.999kΩ 0.001kΩ
99.99kΩ 0.01kΩ
999.9kΩ 0.1kΩ
9.999MΩ 0.001MΩ ±(1.5%+3)
99.99MΩ 0.01MΩ

Function Range Resolution Accuracy MAX. Value Other
Capacitance 9.999nF 0.001nF ±(5.0%+20) 9.999mF
99.99nF 0.01nF ±(2.0%+5)
999.9nF 0.1nF
9.999μF 0.001μF
99.99μF 0.01μF
999.9μF 0.1μF
9.999mF 0.001mF ±(5.0%+5)
Frequency 99.99Hz 0.01Hz ±(0.1%+2) 9.999MHz
999.9Hz 0.1Hz
9.999kHz 0.001kHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
9.999MHz 0.001MHz
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Diode
Continuity
NCV

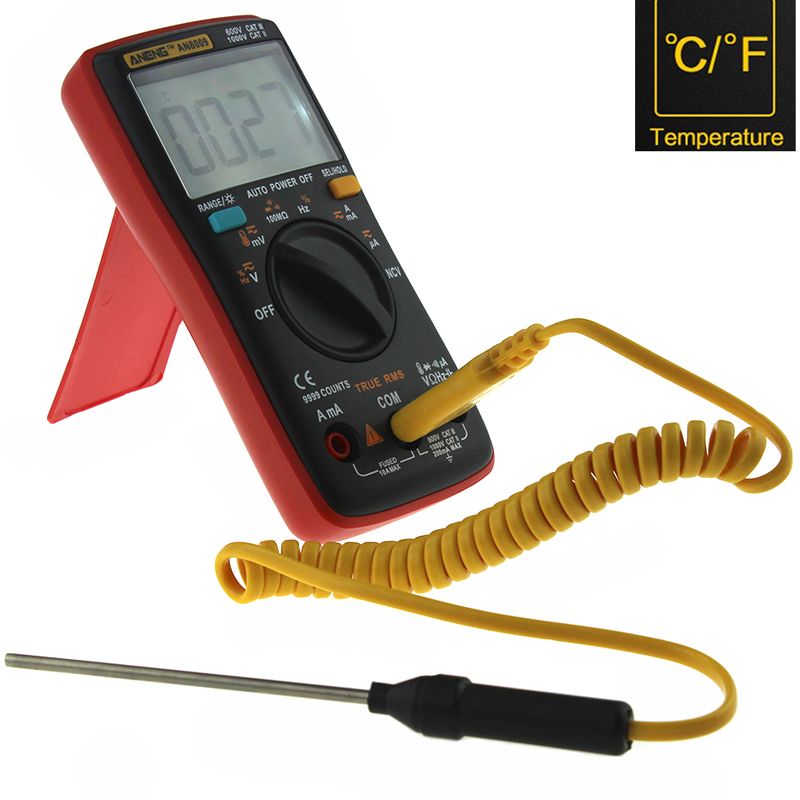

Temperature -20~1000℃ 1℃ ±(2.5%+5) 1000℃
-4~1832℉ 1℉
1832℉
General Specifications
LCD Display 9999 Counts
Ranging Auto/ Manual
Material Renhotec
Update Rate 3 Times/Second
Ture RMS
Back Light
Data Hold
Low Battery Alert
Auto Power Off
Mechanical Specifications
Dimension 130 x 65 x 32mm
Weight 114g
Battery Type 2 x 1.5V AAA Batteries (NOT included)
Warranty One year
Environmental Specifications
Operating Temperature 0~40℃
Humidity <75%
Storage Temperature -20~60℃
Humidity <80%

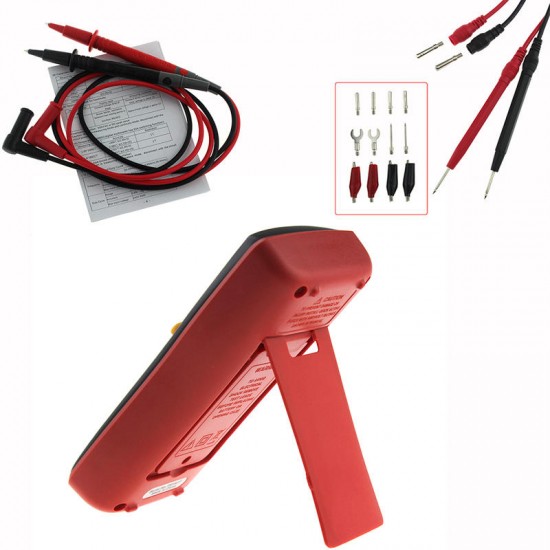

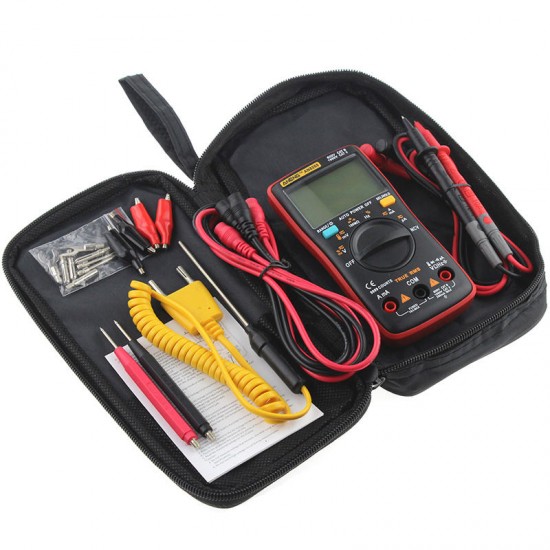

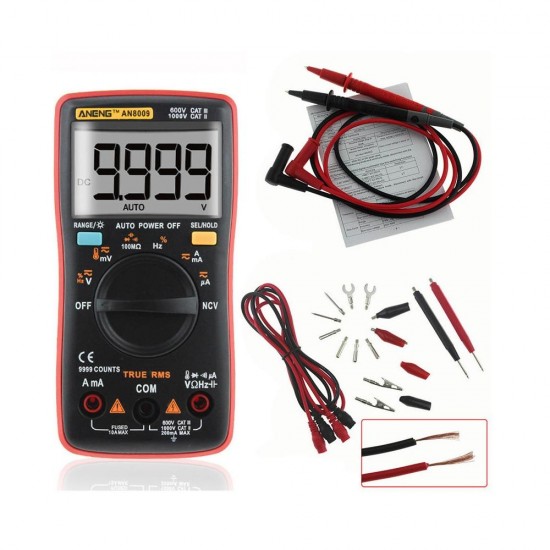

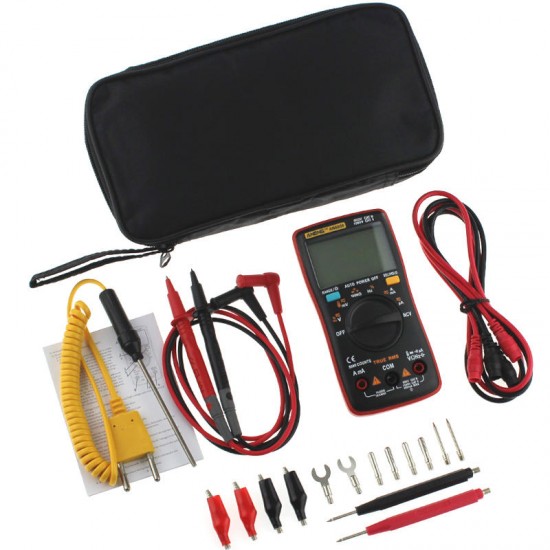

Package included:

1 x ANENG AN8009 True RMS Digital Multimeter (Battery not included)
1 x Electronic Test Probe

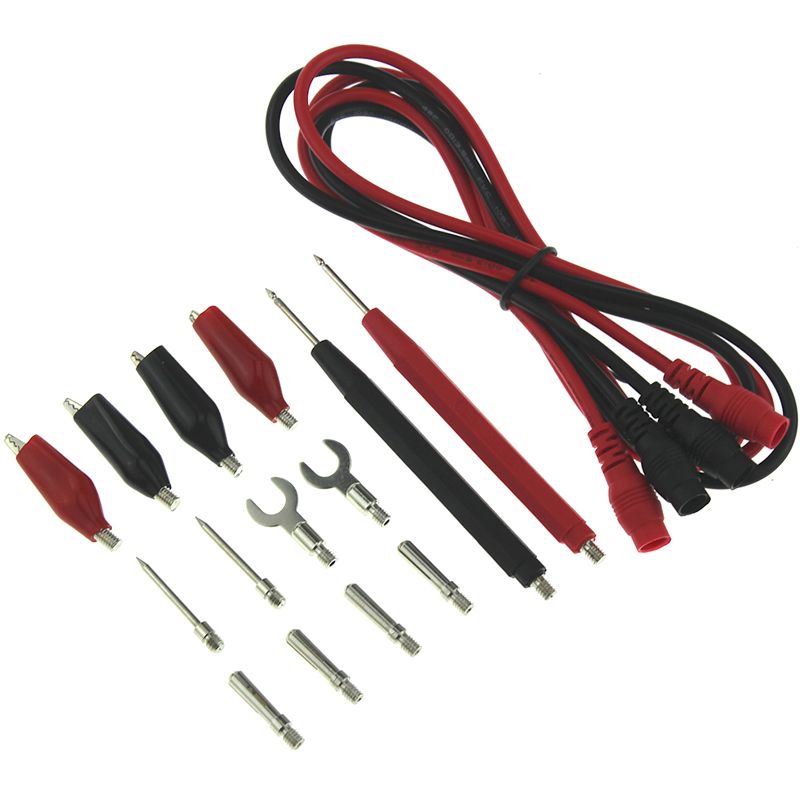

1 x 1set Digital Multimeter Probe Test Leads / Alligator Clip

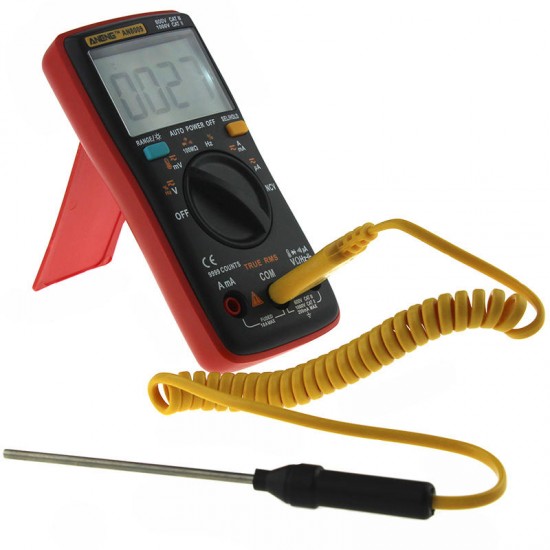

1 x Temperature Test Probe
1 x English User Manual

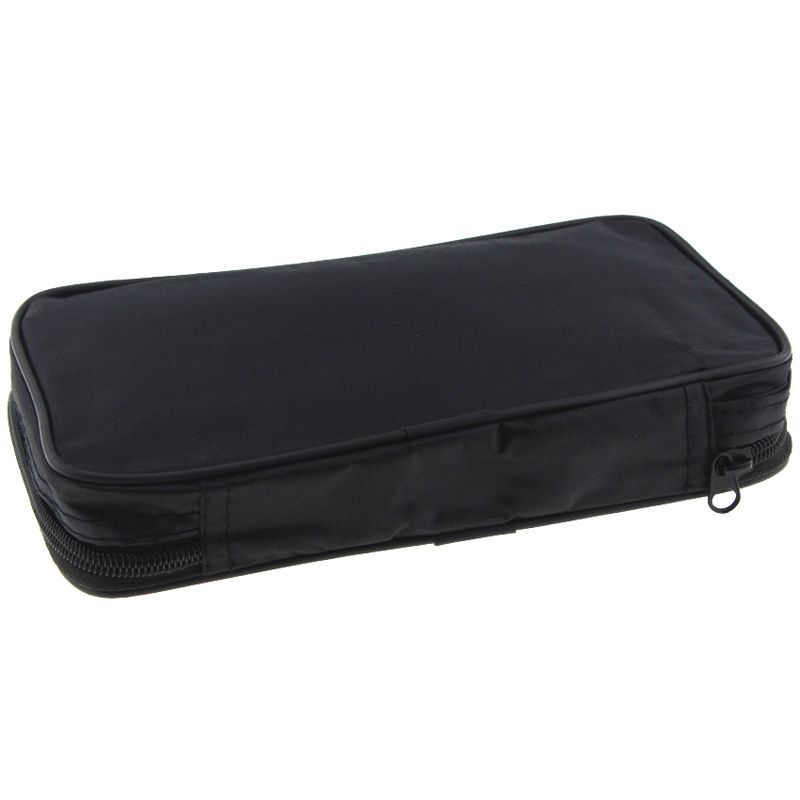

1 x Portable Bag

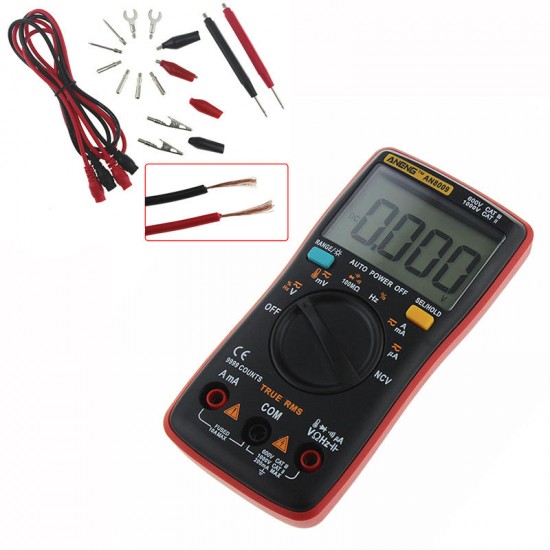

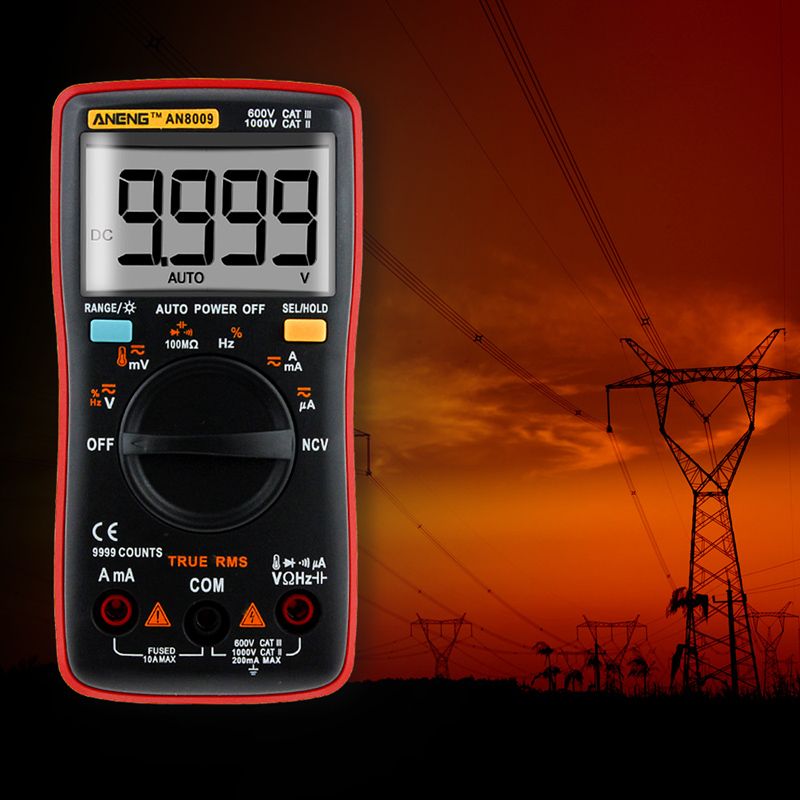

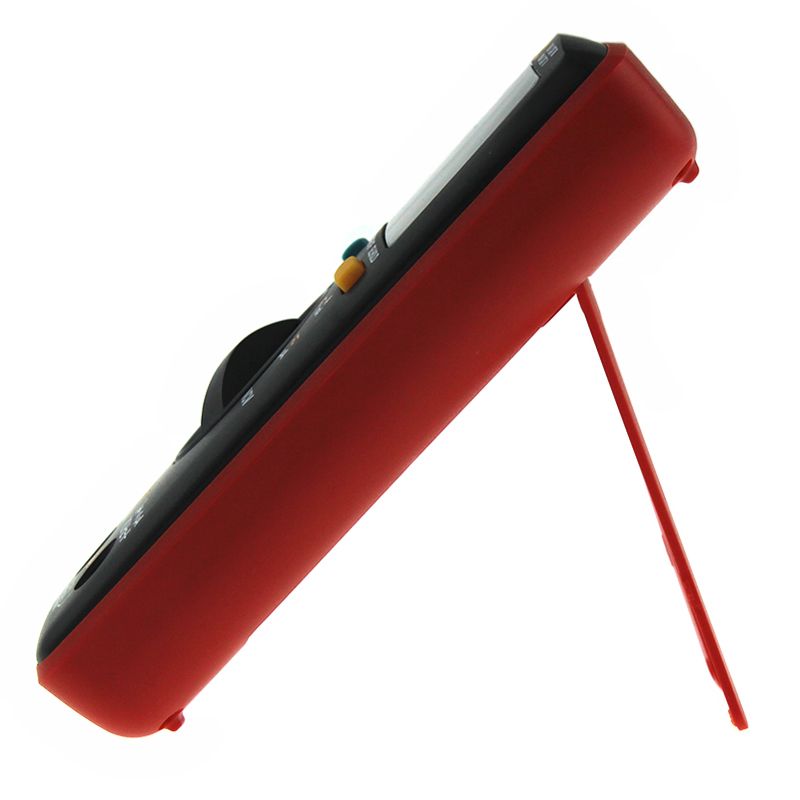

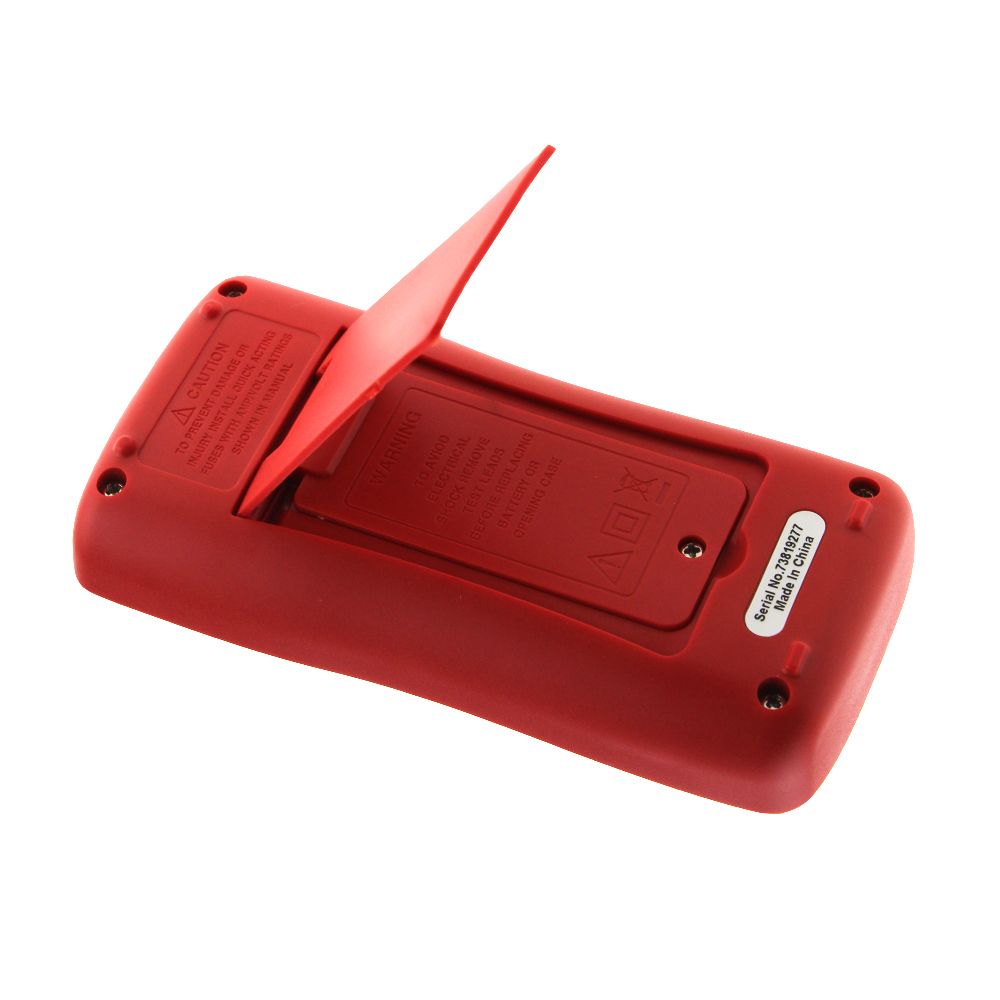

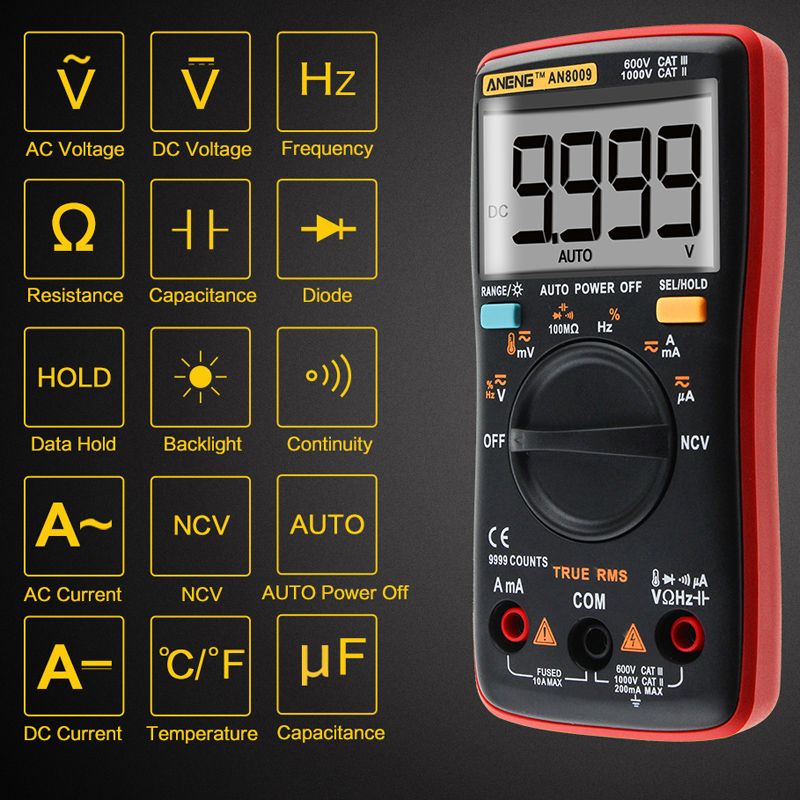

Detail Pictures:
