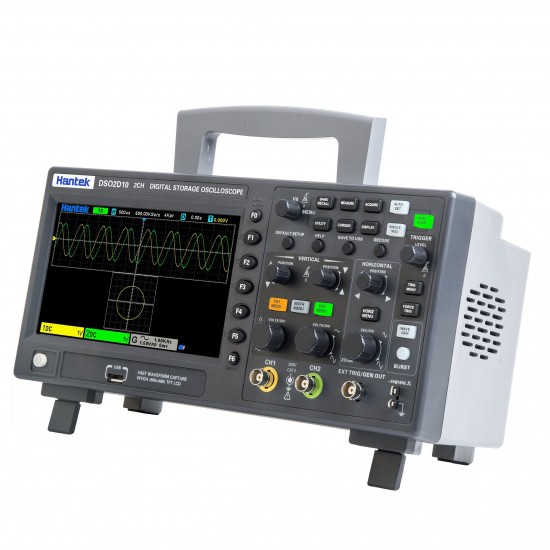

DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)

DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
DSO2D10 Digital Oscilloscope 2CH+1CH Digital Storage 1GS/s Sampling Rate 100MHz Bandwidth Dual Channel Economical Oscilloscope with Signal Source(AWG)
$279.99
Ex Tax: $279.99
  • Stock: In Stock
  • Model: EB004609
  • SKU: EB004609

Features:


1), 2 channels, each channel has independent knob control;

2), Analog bandwidth 100MHZ

3), The highest sampling rate is 1 GSa/s;

4), The storage depth is 8Mpts;

5), The vertical range 2mV/div ~ 10V/div;

6), Built-in a 25MHz signal generator;

7), Vertical resolution: 8bit;

8), Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;

9), Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN;

10), Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats.

11), 3-digit digital voltmeter and 6-digit frequency meter functions;

12), Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information;

13), Two sets of digital voltmeter functions;

14), Support threshold test to realize free measurement in the screen;

15), Rich SCPI remote control instructions;

16), Provide multiple types of peripheral interfaces: USB Host/Device.


Product Model(NOTE:Click on the model to reach the purchase link of the corresponding model)


Model

          Channels

Bandwidth
Sampling Rate
Storage Depth
Signal Source (AWG)

>>DSO2C10<<

2CH

100MHz

1GSa/S8M/

>>DSO2C15<<

2CH150MHz1GSa/S
8M
/

>>DSO2D10<<

2CH+1CH100MHz1GSa/S
8M
1CH

>>DSO2D15<<

2CH+1CH
150MHz1GSa/S
8M
1CH


>>Please Click Here to Download the English User Manual<<


>>Click to Download DSO2000 Software<<


Specification:



modelDSO2D15DSO2D10DSO2C15DSO2C10
bandwidth150MHz100MHz150MHz100MHz
Number of oscilloscope channels2CH2CH2CH2CH
Built-in signal source1CH1CH - -
Oscilloscope index
Sampling rate range1GSa/s (single channel), 500MSa/s (dual channel)
Collection method
samplingSample data
Peak-to-peakDisplay high frequency and random glitches
average valueAverage waveform, times: 4, 8, 16, 32, 64, 128
High precisionUp to 12bit
enter
Input couplingDC, AC or ground (DC, AC, GND)
input resistance1MΩ±2% ‖20pF±3pF
Probe attenuation coefficient setting1X, 10X, 100X, 1000X
Voltage level300V CAT II
Maximum input voltage300VRMS (10X)
Horizontal system
Waveform interpolation(sin x)/x
Maximum record lengthMaximum 8M per channel
Maximum 4M for dual channels
Horizontal scale range2ns/div~100s/div 1, 2, 5 steps
Time base modeYT, XY, Roll
Zero offset±0.5 div×minimum time base gear
Sampling rate and delay time accuracy±50ppm
Clock drift≤±5 ppm/year
Incremental time measurement accuracySingle, "sampled" mode
(Full bandwidth)±(1 sampling interval+100ppm×reading+0.6ns)
>16 times above average
±(1 sampling interval+100ppm×reading+0.4ns)
Sampling interval = second/div÷200
Vertical system
modelDSO2D15DSO2D10DSO2C15DSO2C10
bandwidth150MHz100MHz150MHz100MHz
Rise time at BNC (typical)2.3ns3.5ns2.3ns3.5ns
Vertical resolution8-bit resolution, simultaneous sampling for each channel
Vertical sensitivity2mV/div to 10V/div
Offset range2mV/div to 20mV/div, ±100mV; 50mV/div to 200mV/div, ±1V;
500mV / div to 2V / cell, ± 10V; 5V / div to 10V / division, ± 50V
computationAdd, subtract, multiply, divide, FFT
FFTWindow: Rectangular, Hannin
