Mini Wireless Wifi Digital Oscilloscope for Windows Computer 50M 200Msps Professional
- Stock: In Stock
- Model: EB004631
- SKU: EB004631

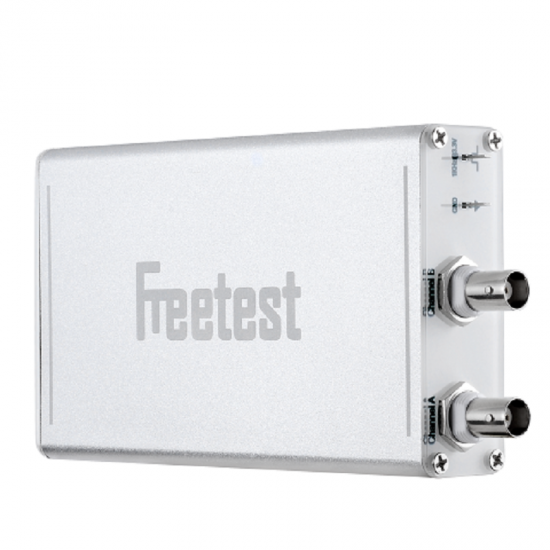

FreeTest Digital OscilloscopeIt is a wireless digital storage oscilloscope that Connect mobi le-Phone with WIFI (currently supports Android) for test and measurement. It only needs a mobi le phone +charging treasure size wireless oscilloscope to complete the test anytime, anywhere. Full dual-channel Analog pat h with built-in high-energy-density lithium battery and full charge for up to 5 hours of independent test application. Small size, easy operation and flexible application scenarios. The interface is beautiful and supports gestures; WIFI connection allows you to bring Your own lab all the time. Can meet the basic requirements of school experiments, home appliance repair, business travel / field testing, electronic engineering.
Size: 84 x 160 x 28mm
Weight: 600g
OS: And roid 4.0 above; Windows XP
Charging interface: Micro USB. DV 5V
| Model | F28M6 | F28M6D | ||
| Bandwidth | 25M | 50M | ||
| Channels | 2 Channel | 2 Channel | ||
| Real-time sampling rate | 100M/2channel | 100M/2channel,200M/1channel | ||
| Rise Time | 7 ns | 5.5 ns | ||
| Storage depth | 3K | 3K/6K | ||
| Charging time | 7 hours | 7 hours | ||
| Life time | 5.5 hours | 5.5 hours | ||
| Vertical resolution | 8bit | |||
| Trigger mode | Rising edge/Falling edge | |||
| Sampling method | General sampling/Peak value/Average | |||
| Time base rang e | 1ns/Div~10s/Div | |||
| Maximum input voltage | +16V(X1)/+120V(X10) | |||
| Input resistance | 1M ohm<16pF+3pF | |||
| Vertical sensitivity | 4mv/Div~10V/DIV(X1) | |||
| 40mv/Div~30V/DIV(X10) | ||||
| Input coupling | AC/DC | |||
| Probe position | X1 X10 | |||
| Charging standard | MicroUSB 5V DC | |||
>>Please Click Here to Download the English User Manual<<
Package includes:1 X F28M6 or F28M6D Oscilloscope

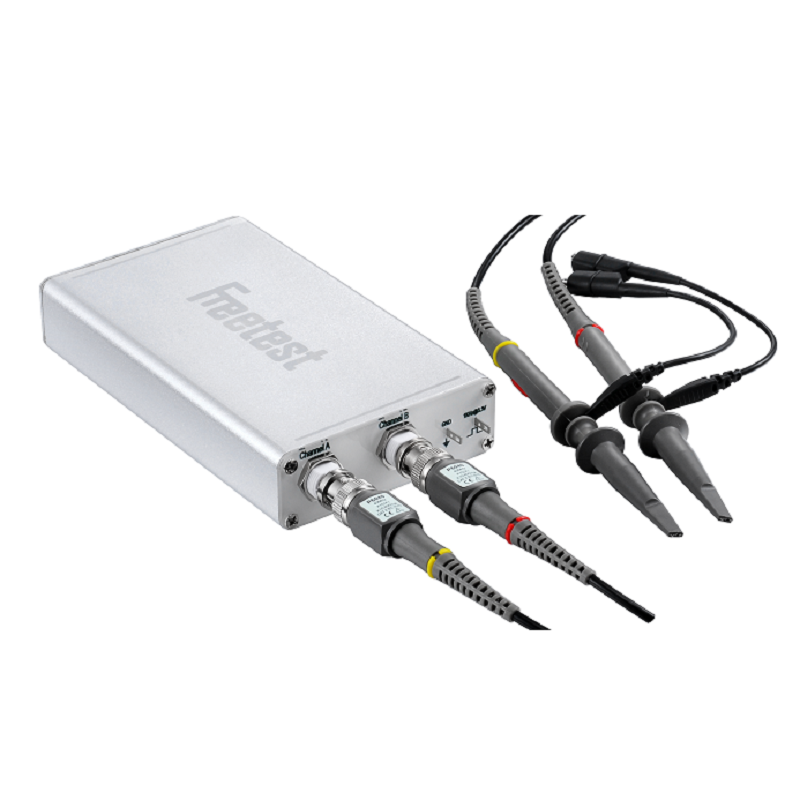

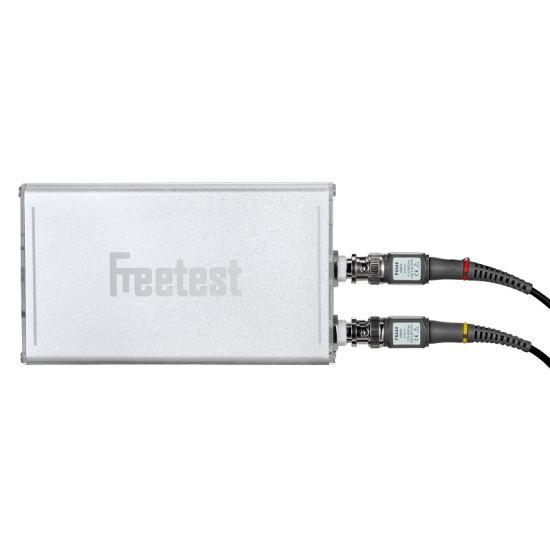

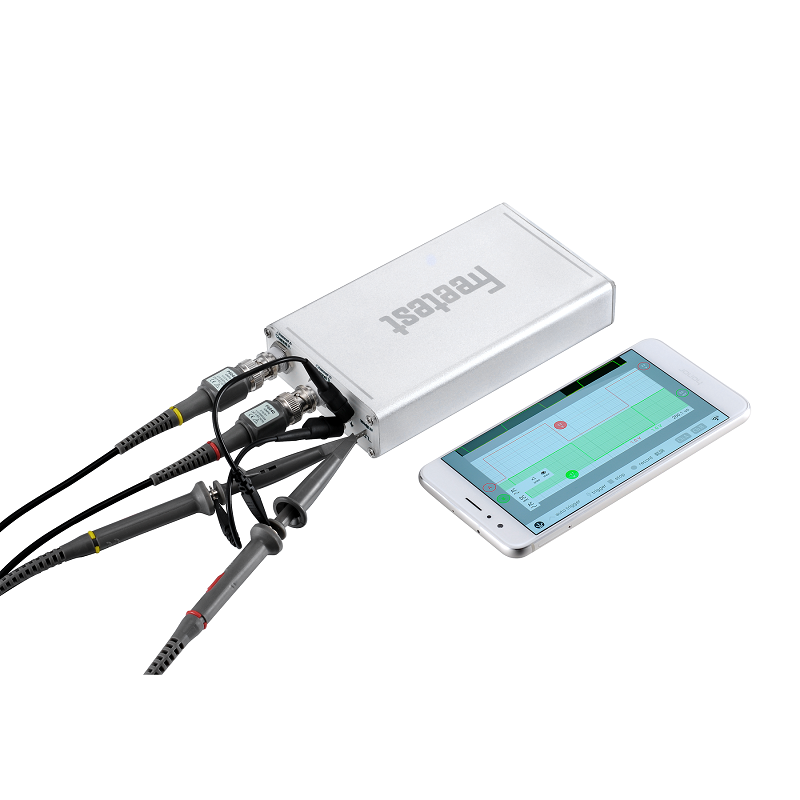

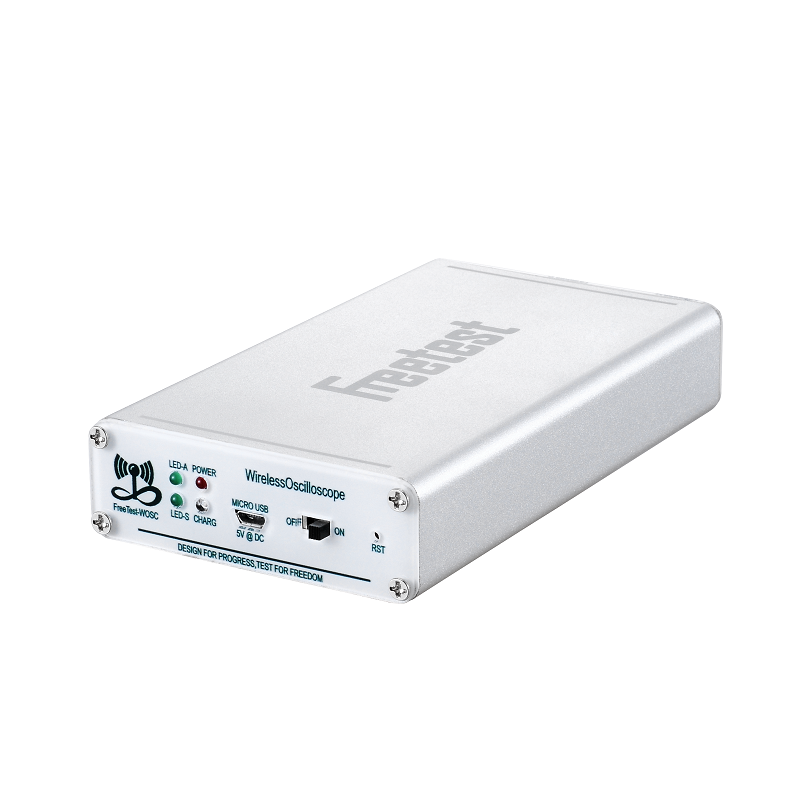

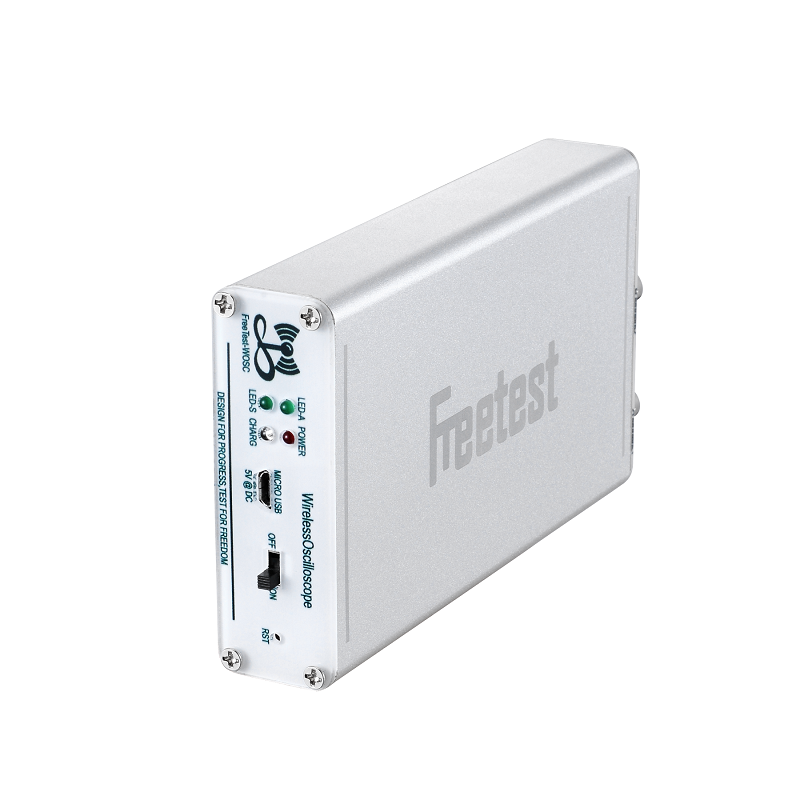

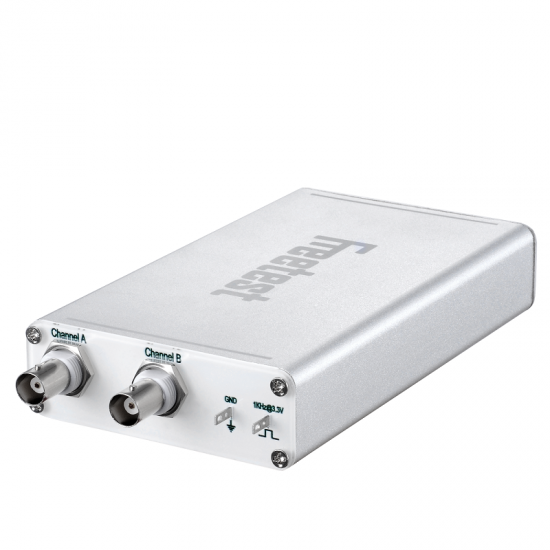

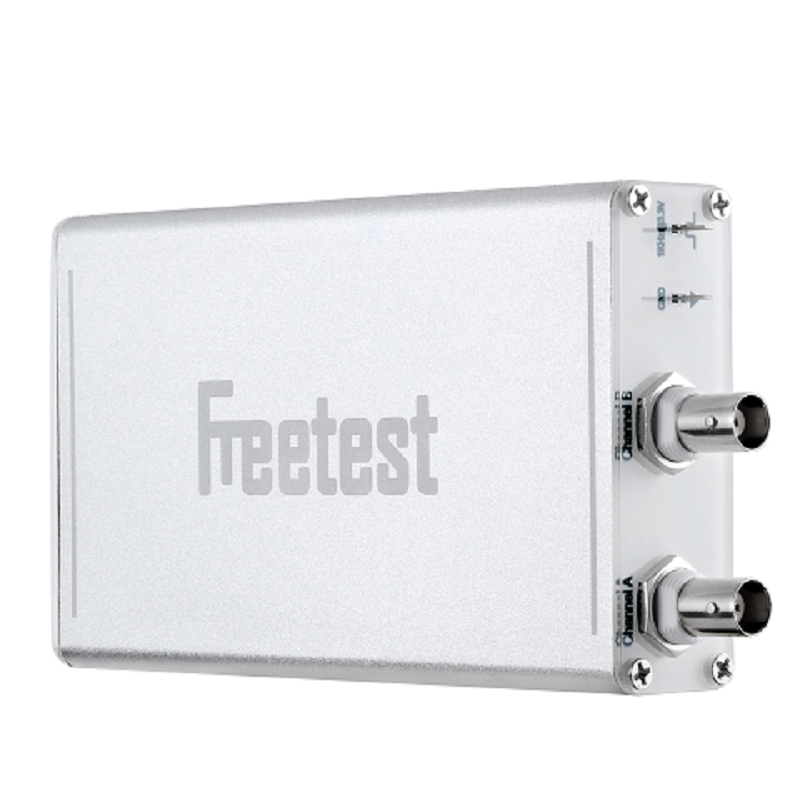

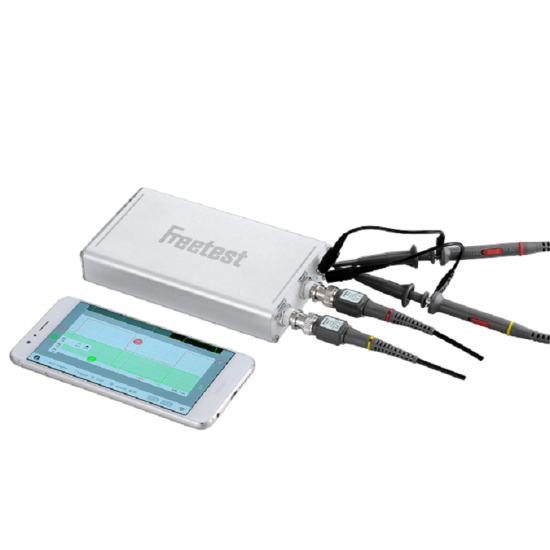

Details pictures:
