Virtual Digital Handheld Oscilloscope can connect Android & PC 2 Channel Bandwidth 20Mhz/50Mhz Sampling Data 50M/1G
- Stock: In Stock
- Model: EB004680
- SKU: EB004680
Specificaions:
| Model: | C520 | C520M | C520X | C550 |
| Input channels: | 2 | 2 | ||
| Maximum sampling rate (S/s): | 50M | 1G | ||
| Bandwidth (−3 dB): | 20M | 50M Hz | ||
| FFT: | YES | YES | YES | YES |
| Data logger: | YES | YES | YES | YES |
| I/O extension: | YES | YES | YES | NO |
| Serial bus decoding: | NO | NO | NO | YES |
| Hardware trigger: | NO | NO | NO | YES |
| Ext trigger module support: | NO | NO | NO | YES |
| Signal generator module support: | NO | NO | YES | NO |
| Logic analyzer module support: | NO | NO | YES | YES |
Requirements

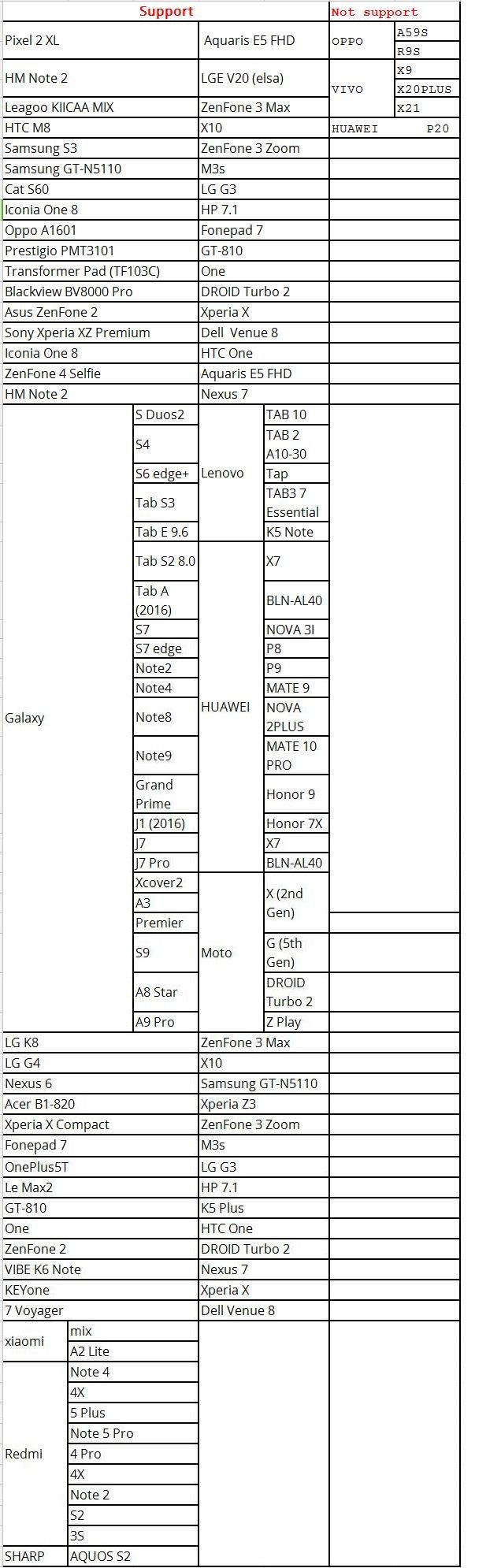

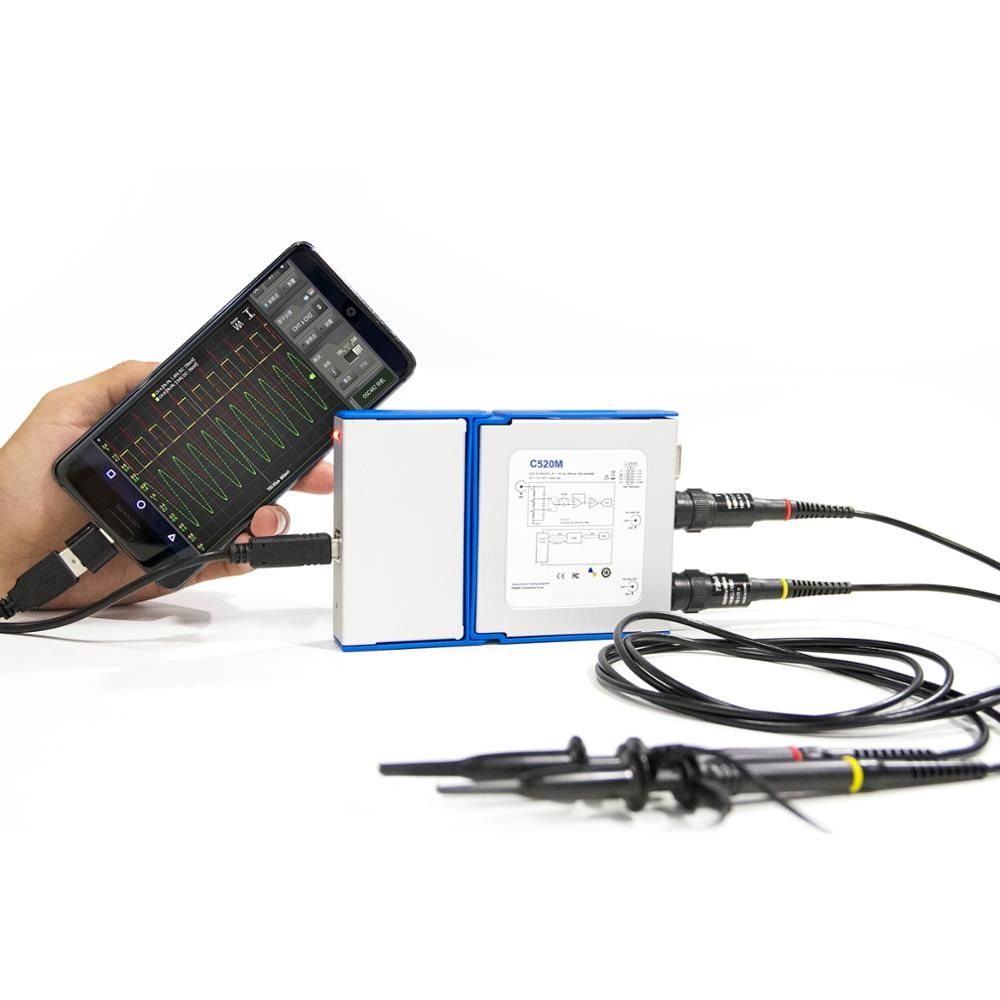

C520M can’t support all kinds of Android devices. Customers may need to check their Android phone/Tablet with these requirements, or check the support list.
| Device Operative System | Android API 16+ (Android 4.1) |
| Device Kind | Phone, Tablet, TV Box |
| Device Specifications | USB OTG Support, 2GB RAM or more |
| USB OTG Cable | B type male to micro c , type c or others(depend on your Android device) |
| USB Oscilloscope | LOTO OSC482M |

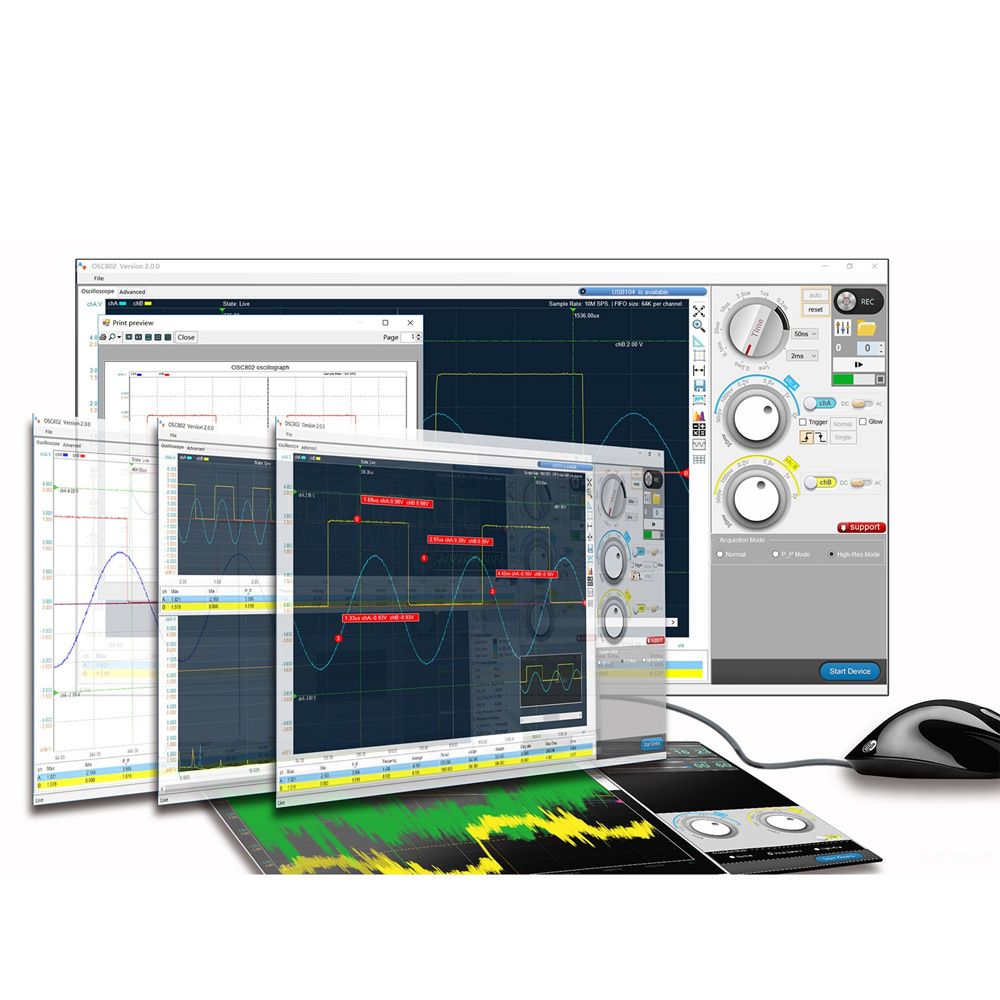

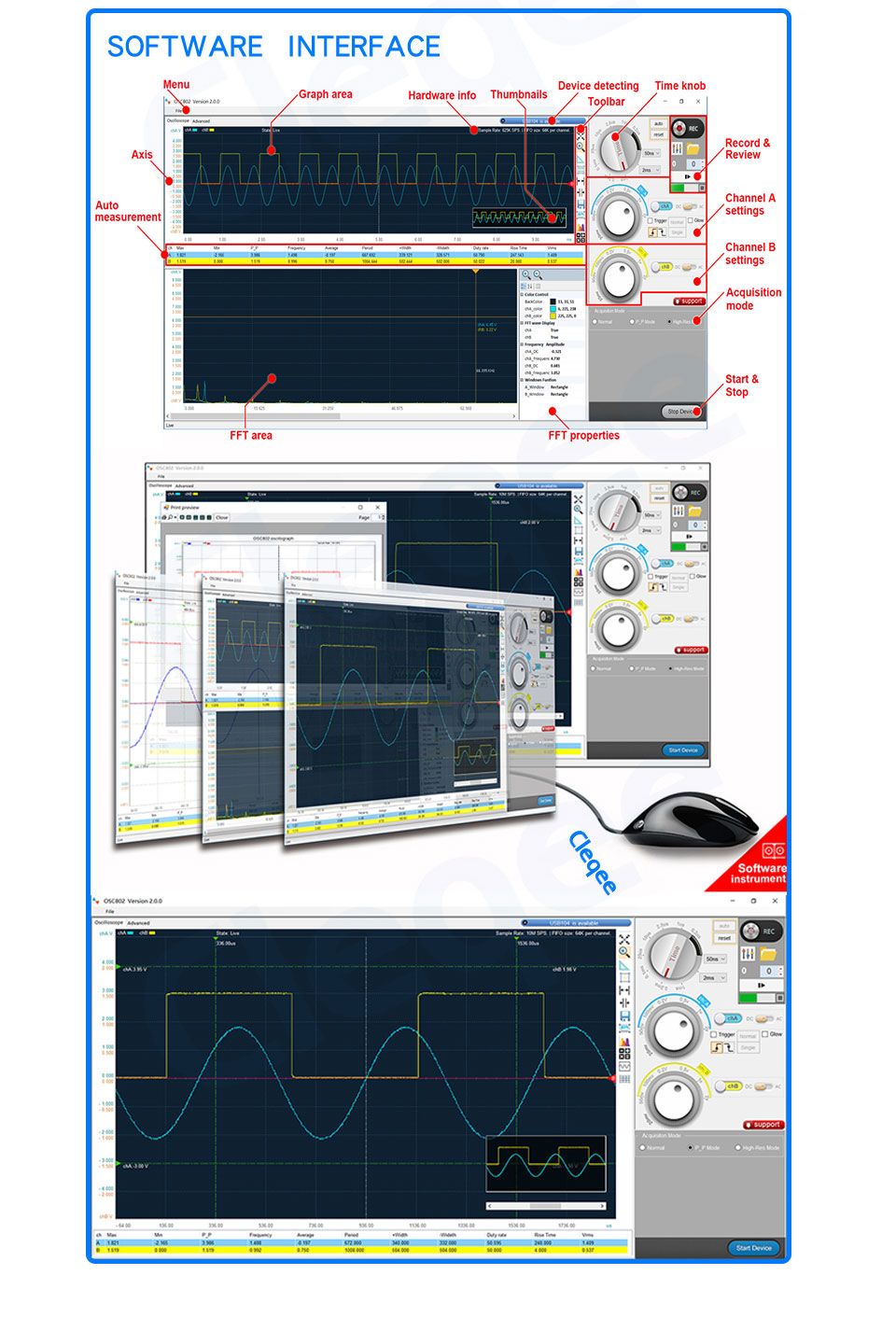

App Specifications:
| High Frame Rate | Real-time oscilloscope, up to 500 scans per second and 25 FPS. |
| Input Range | ±250mV to ±5V (for X1 probe). |
| ±2.5V to ±50V (for X10 probe). | |
| ±25V to ±500V (for X100 probe). | |
| Sampling Rate | 500Sa/s to 48MSa/s. |
| Memory Length | 1024 Samples. |
| Software trigger and AC/DC | Improved software trigger with stabilizer. Auto, Normal and Single Trigger modes.AC/DC control. |
| Full statistics | Peak-Peak, Max, Min, RMS and DC value. Frequency and duty cycle. Cursors for manual calculations. |
| FFT | Real-time processing with the possibility to select among several windows. Peak detects and Peak-hold functions. Available only for Channel A. |
| Sinc Interpolator | Sinc interpolator with infinite sampling rate for the best signal view. Maximum visible frequency = Sampling rate / 4. |
| Phosphor decay effect | Plot multiple signal traces on the screen. |
| XY Plot | Calculate and visualize difference among 2 signals, amplitude, frequency, phase and delay. |
| Math functions | Apply operations on single or both channels: invert, +, -, x, : |
| Probe setting | Direct calculation of current value according the probe setting used (x1, x10). |
| Data export | data available in .csv and Matlab format. |
| Calibration | Calibration function available. |
| Other | Screenshot function. |
This is a device list of updates we currently maintain.
Package Includes:

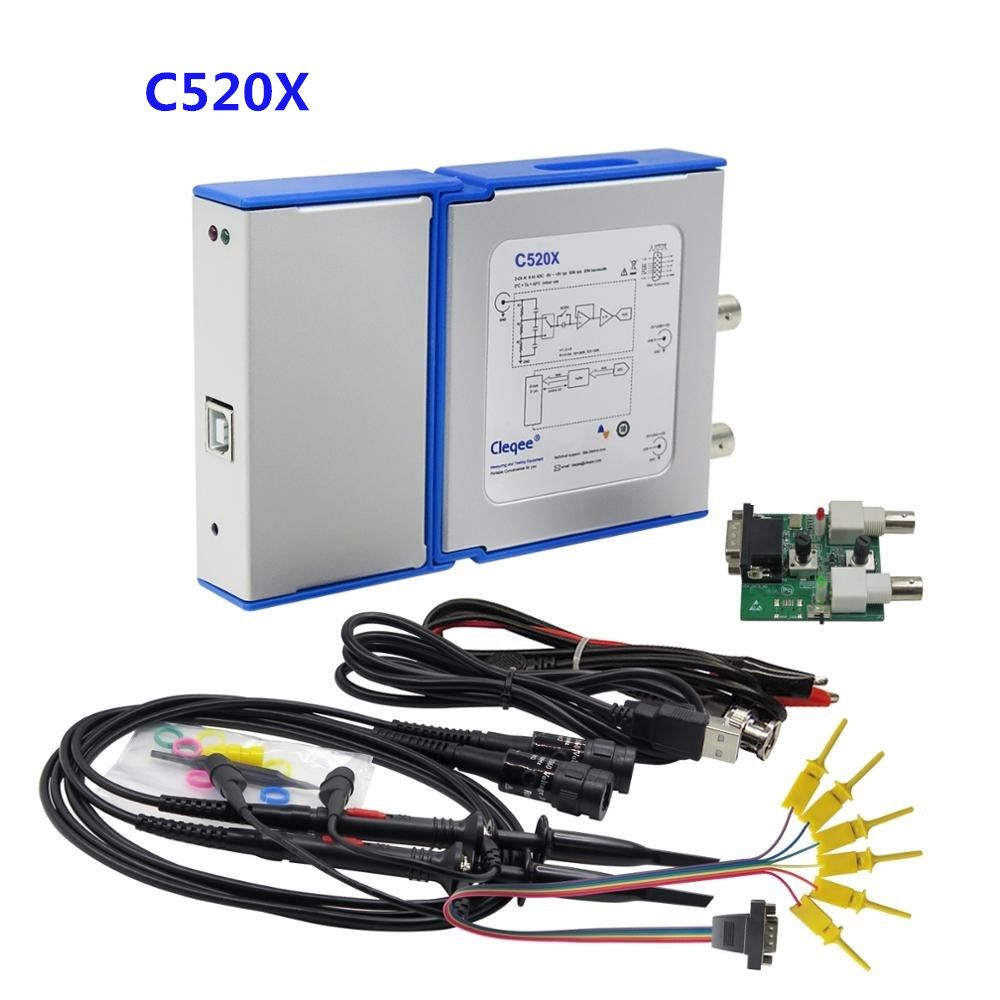

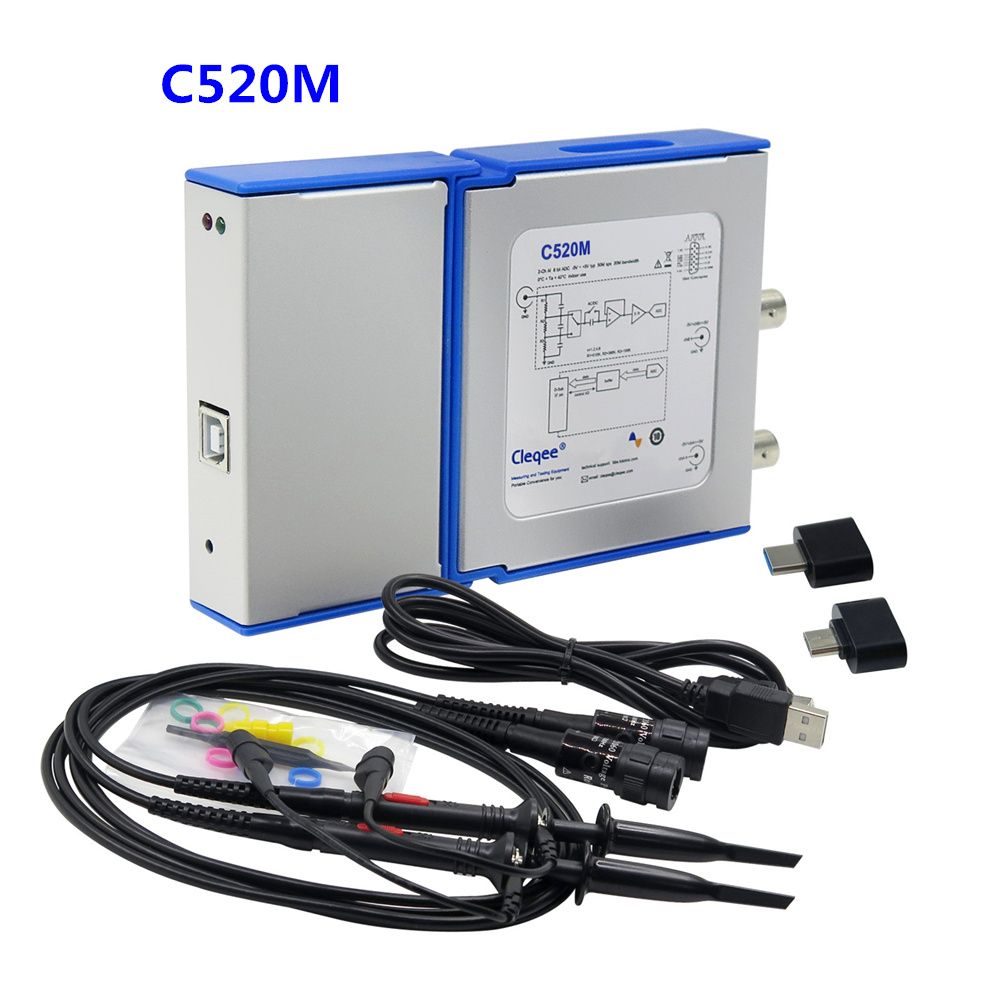

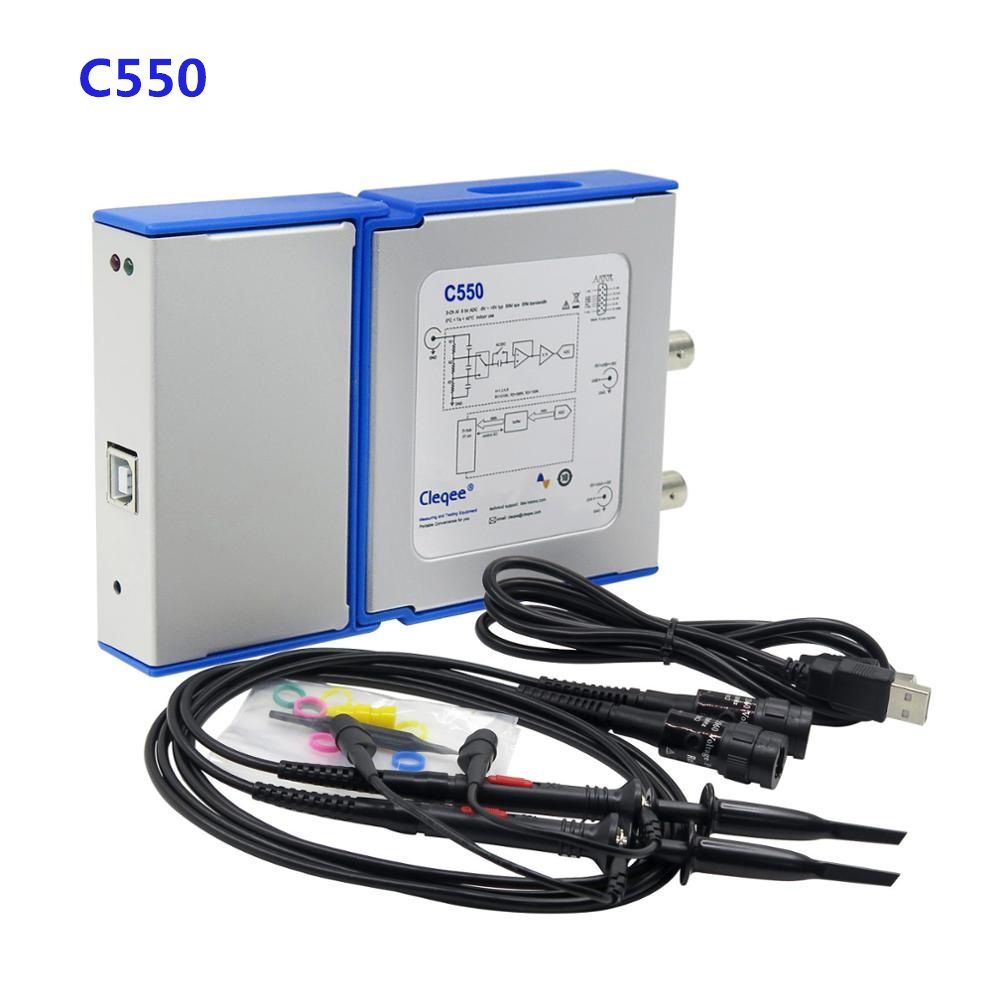

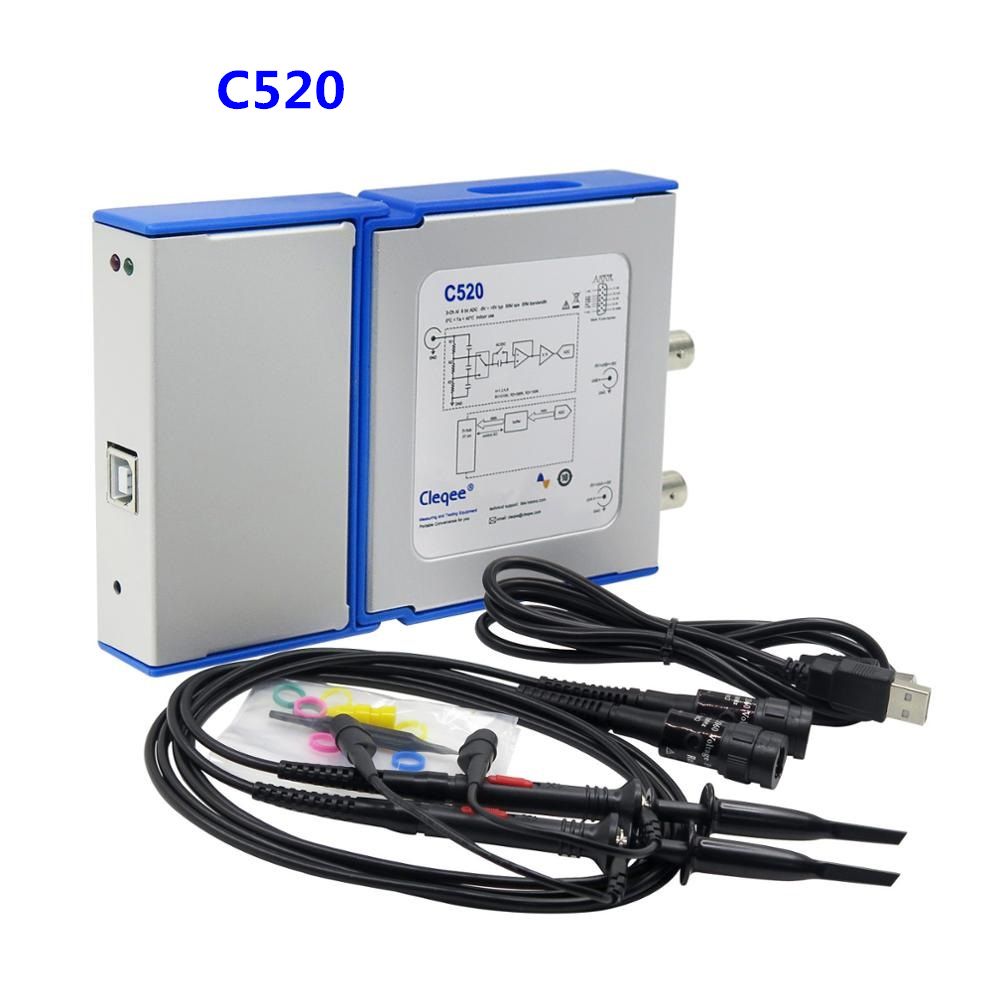

AS the pictures shown below
